DEMO_MTR_72V200A_GAN

Low-voltage motor drive design showcasing highly paralleled CoolGaN™ Transistors
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO_MTR_72V200A_GAN
DEMO_MTR_72V200A_GAN
User Manual

Product details

  • Efficiency
    99%
  • Input Type
    Battery
  • Input Voltage
    14 V to 80 V
  • Output Current
    0 A to 220 A
  • Switching Frequency max
    50 kHz
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

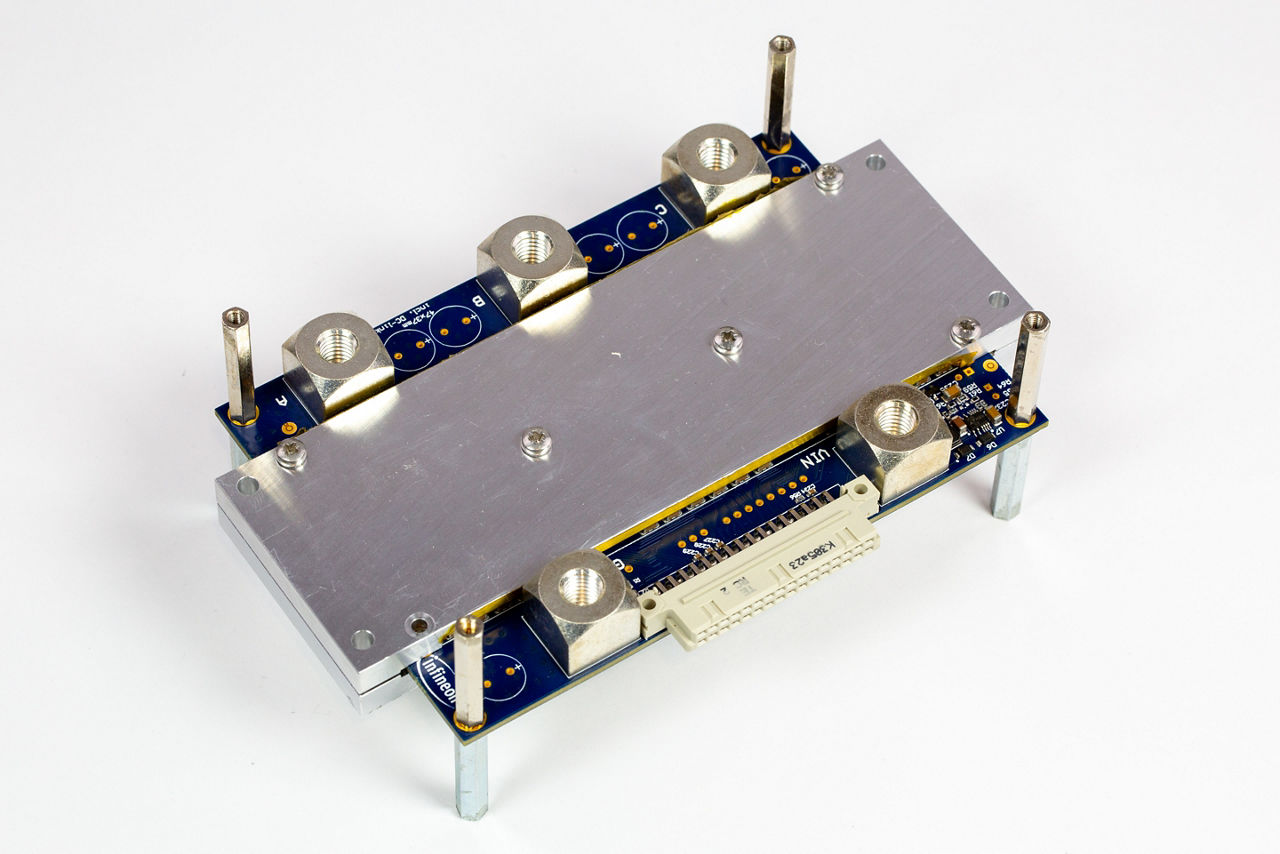

DEMO_MTR_72V200A_GaN is designed for low-voltage inverter applications up to 72 V and 200 ARMS motor phase current. It features 96 CoolGaN™ Transistors 120 V G3 in a half-bridge configuration. All the transistors in parallel are driven by an EiceDRIVER™ 1EDN7116U gate driver, and the output phase current is sensed by a XENSIV™ TLE4972 magnetic current sensor. It demonstrates the high power densities achievable within a size of 135 mm x 90mm.

Features

  • 72 V nominal input voltage
  • Overcurrent detection (492 A or 834 A)
  • Paralleling 16 transistors for HB side
  • Half-bridge configuration
  • High switching frequency (≥ 50 kHz)
  • Reduced bulk capacitance
  • High-current ripple handling

Benefits

  • Ultrahigh power density
  • Parallel device scalability
  • Optimal layout implementation
