6EDL_SPI_LINK

6EDL_SPI_LINK is a configuration tool for 6EDL71x1 series smart 3-phase gate driver ICs designed for battery powered motor control applications.
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

6EDL_SPI_LINK
6EDL_SPI_LINK
User Manual

Product details

  • Configuration
    "IFX54211MB V33 XMC1402-Q040X0200AA XMC4200-Q48F256BA"
  • Description
    6EDL71x1 family configuration tool
  • Dimensions
    46x14mm
  • Family
    USB Peripheral Controller
  • Input Type
    DC
  • Interfaces
    USB
  • Mounting
    No
  • Sub Application
    Motor Control & Drives
  • Target Application
    Battery powered motor drives
  • Topology
    USB
  • Type
    Evaluation Board
Recommended
OPN
6EDLSPILINKTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

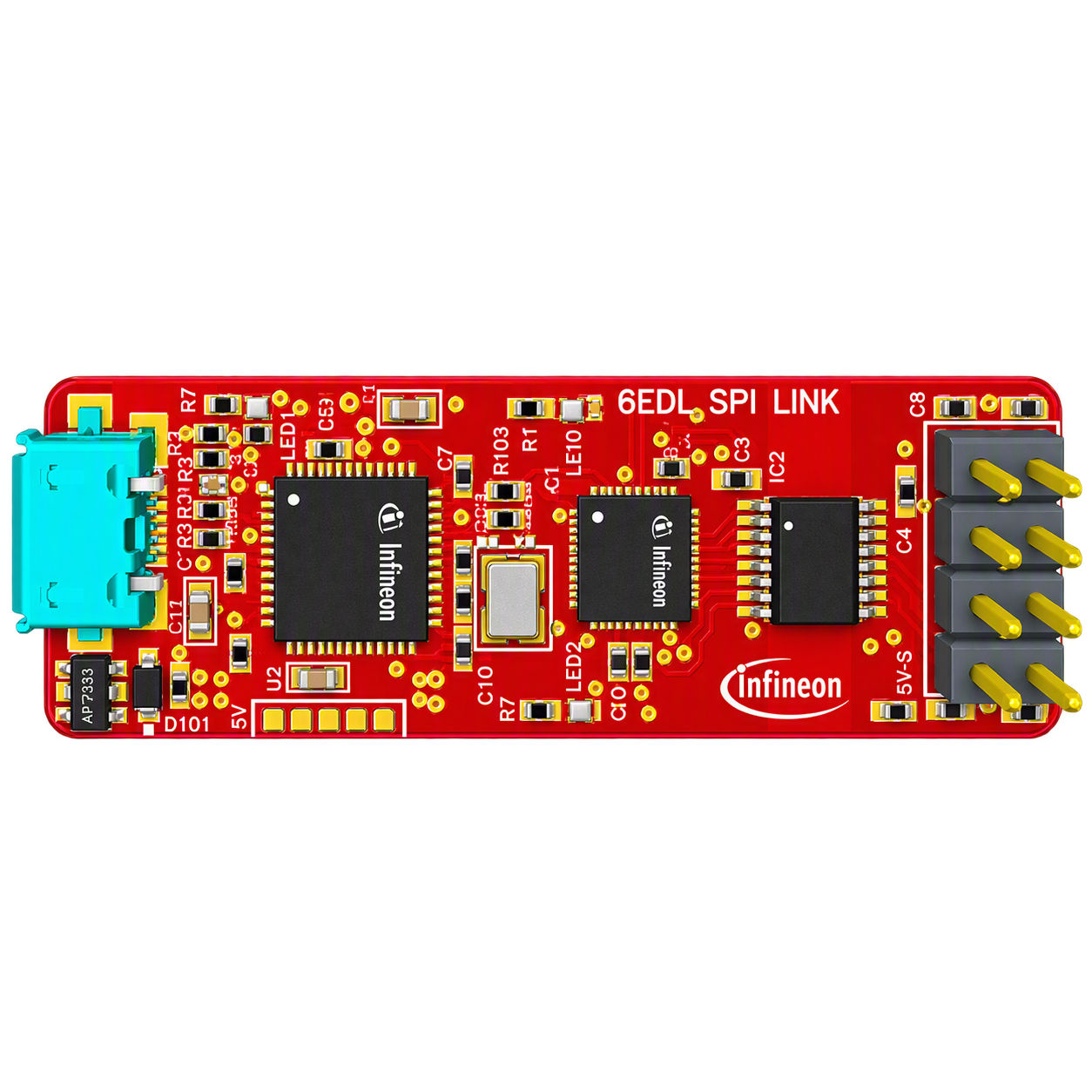

6EDL_SPI_LINK provides an interface between a PC running Infineon's BPA Motor Control Workbench software tool and a target 6EDL71x1 motor drive board. Simple USB connection allows designers to read and write parameters such as: gate drive sink and source currents, integrated power supply settings, PWM output modes and protection features. Configuration is done through a direct SPI connection not requiring microcontroller firmware support.

Features

  • Isolated USB interface, micro-USB
  • SPI interface for 6EDL71x1 target board
  • BPA Motor Control Workbench compatible
  • Micro USB cable included
  • 2x4 header cable for SPI connection

Benefits

  • Simple configuration tool for 6EDL71x1
  • Set gate drive parameters
  • Set PWM switching pattern
  • Set on-board power supply parameters
  • Set current sense and protection
  • Set protection modes
