TLE92108-232QX

The TLE92108-232QX is a MOTIX™ Multi MOSFET Driver IC with an adaptive multi-stage MOSFET gate control
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92108-232QX
TLE92108-232QX
ea.
Data Sheet

Product details

  • Brake Mode
    Yes
  • Classification
    ISO26262-ready
  • Diagnostics
    SPI_ERR, PSF, TSD, TW, OC, NPOR, CSA
  • Download Model
    https://www.infineon.com/api/redirect/ispn/TLE92108-232QX/#!simulation
  • Family
    MOTIX™ multi MOSFET gate driver ICs
  • Gate current max
    100 mA
  • Gate Driver Source / Sink Current max
    100 mA
  • Interfaces
    SPI
  • Language
    SPICE
  • Marketing Priority
    30
  • Number of CSA
    2
  • Number of Half-Bridges
    8
  • Online Simulation
    https://design.infineon.com/tinademo/designer.php?path=EXAMPLESROOT%7CINFINEON%7CApplications%7CMotor%20control%20and%20drives%7CBrushed%20DC%20motor%7C&file=atv_pwm_full_bridge_motor_driver_TLE92108_232QX_concept.tsc
  • Operating Voltage
    6 V to 28 V
  • Currently planned availability until at least
    2038
  • Product Category
    Motor Control ICs
  • Protect
    OT, SC, UV, OV
  • Qualification
    Automotive
  • Standby Current
    2 µA
  • Supply Voltage absolute max ratings
    40 V
  • Supply Voltage
    6 V to 28 V
  • Technology
    MOTIX™ Driver
  • Temperature
    - 40°C - 150°C
Recommended
OPN
TLE92108232QXXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

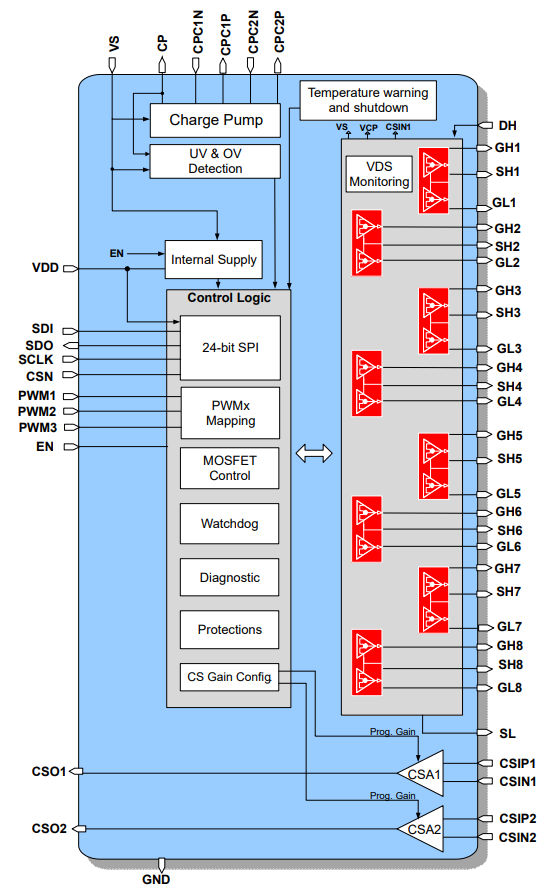

Infineon's MOTIX™ MOSFET driver drives up to 16 external n-channel MOSFETs. Its Adaptive MOSFET Control eliminates calibration, optimizing power dissipation and EMC behavior. Ideal for automotive applications like seat control, power lift gates, and BCM use cases such as centralized door lock. Includes motor brake function for increased reliability and system protection. Can control dual supply half-bridges.

Features

  • Adaptive multi-stage MOSFET gate control
  • Drive up to 16 external N-chan. MOSFETs
  • 2x flexible current sense amplifier
  • 24-bit Serial Peripheral Interface (SPI)
  • 3 x PWM inputs (up to 25 kHz)
  • Low current in sleep mode typ. 3 µA
  • Dual-stage pump for reverse protection
  • Drain-source for short circuit detection
  • Current sense for short circuit detection
  • Timeout watchdog
  • Detailed off-state diagnostic via SPI
  • Configurable brake mode
  • AEC Q100-qualified

Benefits

  • Drives up to 8 half-bridges
  • Optimizes PCB space
  • Intelligent motor braking
  • Diagnostic in ON and OFF state
  • Over temperature protection
  • Hard short circuit detection
  • Adaptive driver capability
  • Reverse battery protection
  • Low current consumption in sleep mode
