Active and preferred
RoHS Compliant
Lead-free

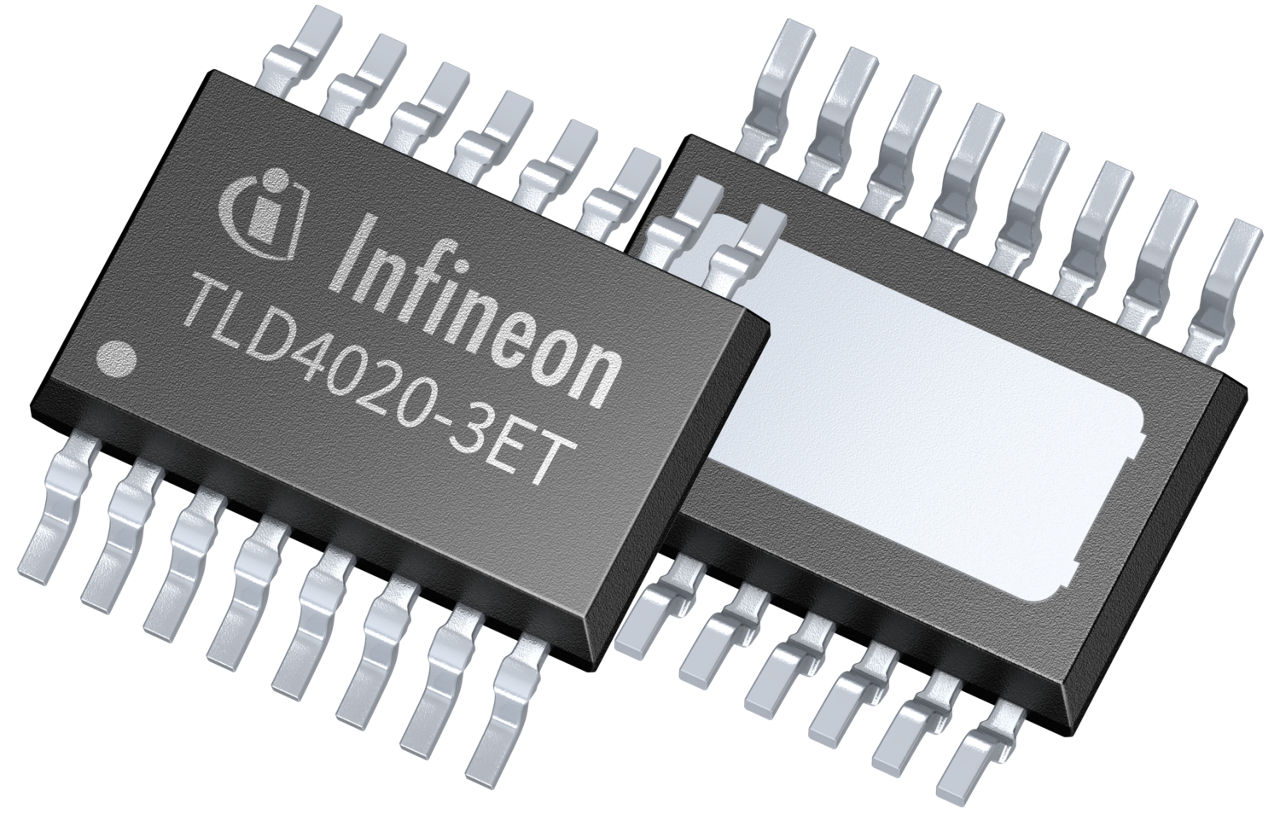

TLD4020-3ET

Programmable 3-ch LIN RGB Driver
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD4020-3ET
TLD4020-3ET
ea.

Product details

  • Family
    LITIX™ Interior
  • Open Load Detection
    Yes
  • Operating Temperature
    -40 °C to 150 °C
  • Output Channels
    3
  • Output Current per channel
    0 mA to 51.5 mA
  • Planned to be available until at least
    2038
  • PWM engine
    Yes
  • PWM
    Yes
  • Short GND Detection
    Yes
  • Thermal overload protection
    Yes
  • Tolerance
    5% @ 25 °C
  • Topology
    Linear
  • VS
    5.5 V to 29 V
Recommended
OPN
TLD40203ETXUMA2
Product Status active and preferred
Infineon Package
PG-TFDSO-16
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TFDSO-16
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLD4020-3ET is a three channel device with integrated and protected output stages. It is designed to control RGB LEDs with a current up to 51.5 mA as linear current sink (LCS). The power stages can be configured in parallel for higher load currents. Each individual power output stage is configurable via a 5-bit current set value. In total 3 independent and individual PWM configurations can be set. A LIN interface is used for programming (via bootloader), control and diagnostic feedback.

Features

  • Smallest leaded package (TFDSO-16)
  • 3-channel driver (up to 51.5 mA each)
  • LIN-Interface with LIN-Auto-Adressing
  • 32-bit Arm® Cortex®-M23 core
  • 32 kB on-chip Flash   3 kB on-chip SRAM
  • 576 Bytes 1000 TP on-chip memory
  • 11 Bit ADC w/ differential meas. 0-8 V
  • PWM engine with 16-bit@610Hz resolution
  • Boot ROM for startup FW   Flash routines
  • On-chip oscillator
  • Debug with 2-wire SWD
  • 2 Extra GPIOs

Benefits

  • Easy to program a well-known MCU
  • Easy and stable software development
  • Maximal application flexibility
  • Additional sense and control functions

Applications
