IQDH45N04LM6CG

OptiMOS™ power MOSFETs 40 V in PQFN 5x6 mm2 Source-Down package with very low RDS(on)
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IQDH45N04LM6CG
IQDH45N04LM6CG
Data Sheet

Product details

  • Budgetary Price €/1k
    1.45
  • ID (@25°C) max
    637 A
  • IDpuls max
    2548 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PQFN 5x6 Source-Down
  • Polarity
    N
  • QG (typ @4.5V)
    62 nC
  • QG (typ @10V)
    129 nC
  • RDS (on) (@4.5V) max
    0.58 mΩ
  • RDS (on) (@10V) max
    0.45 mΩ
  • Special Features
    Center-Gate
  • VDS max
    40 V
  • VGS(th)
    1.6 V
Recommended
OPN
IQDH45N04LM6CGATMA1
Product Status active and preferred
Infineon Package PG-TTFN-9
Package Name PQFN 5x6 Source-Down
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package PG-TTFN-9
Package Name PQFN 5x6 Source-Down
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

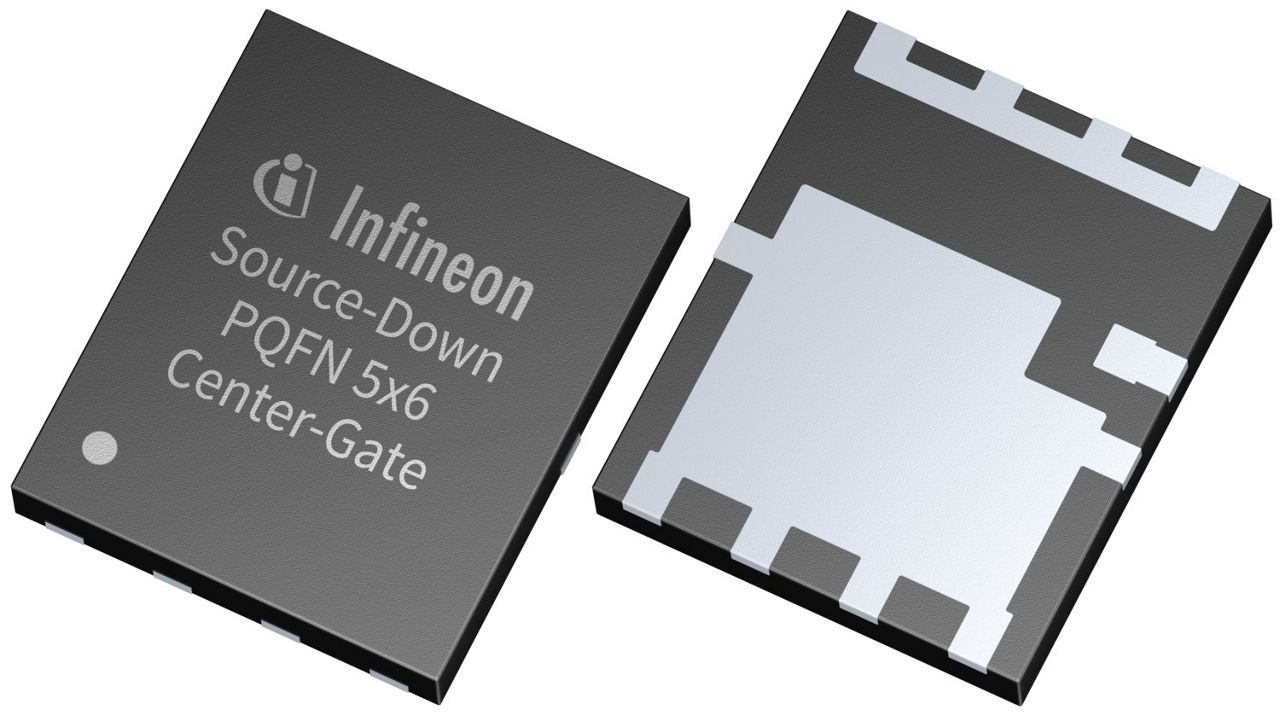

The power MOSFET IQDH45N04LM6CG 40 V comes in a PQFN 5x6 mm2 Source-Down package. The part offers a very low RDS(ON) of 0.45 mΩ combined with outstanding thermal performance for easy power loss management. This enables higher system efficiency and power density for a large variety of end applications like battery-powered tools , SMPS , telecom power, and intermediate bus conversion in high-performance computing, like hyper-scale data centers and AI-server farms.

Features

  • OptiMOS™ 40 V with outstanding FOMs
  • Source-Down package with thermal
  • Source-Down with maximized chip ratio
  • Source-Down in Center-Gate footprint

Benefits

  • Minimized conduction losses
  • Reduced voltage overshoot
  • Increased maximum current capability
  • Fast switching
  • Less device paralleling required
  • Center-Gate for optimal parallelization
  • Lowest RDS(on) on 5x6 mm² PCB
  • Enhanced thermal management
  • Minimal parasitics, optimal switching
  • Industry standard package
