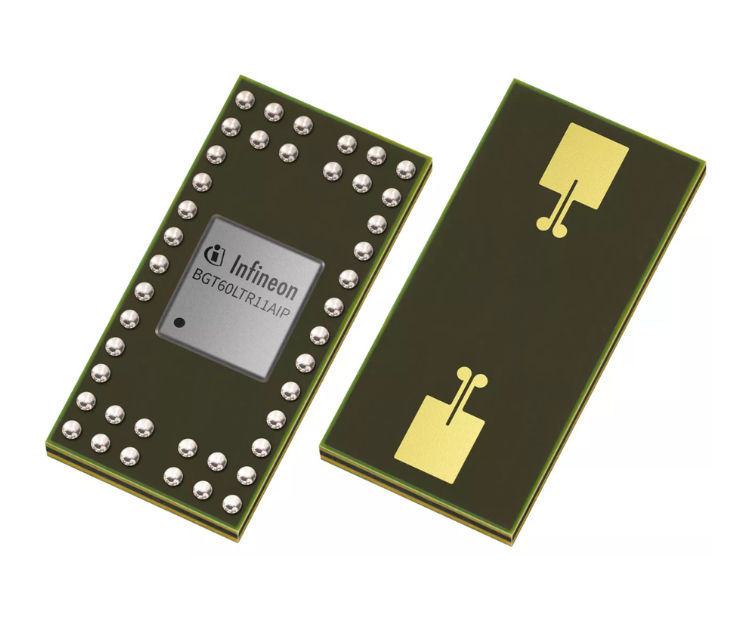

BGT60LTR11AIP

XENSIV™ 60GHz first completely autonomous radar sensor for motion sensing
Data Sheet
package

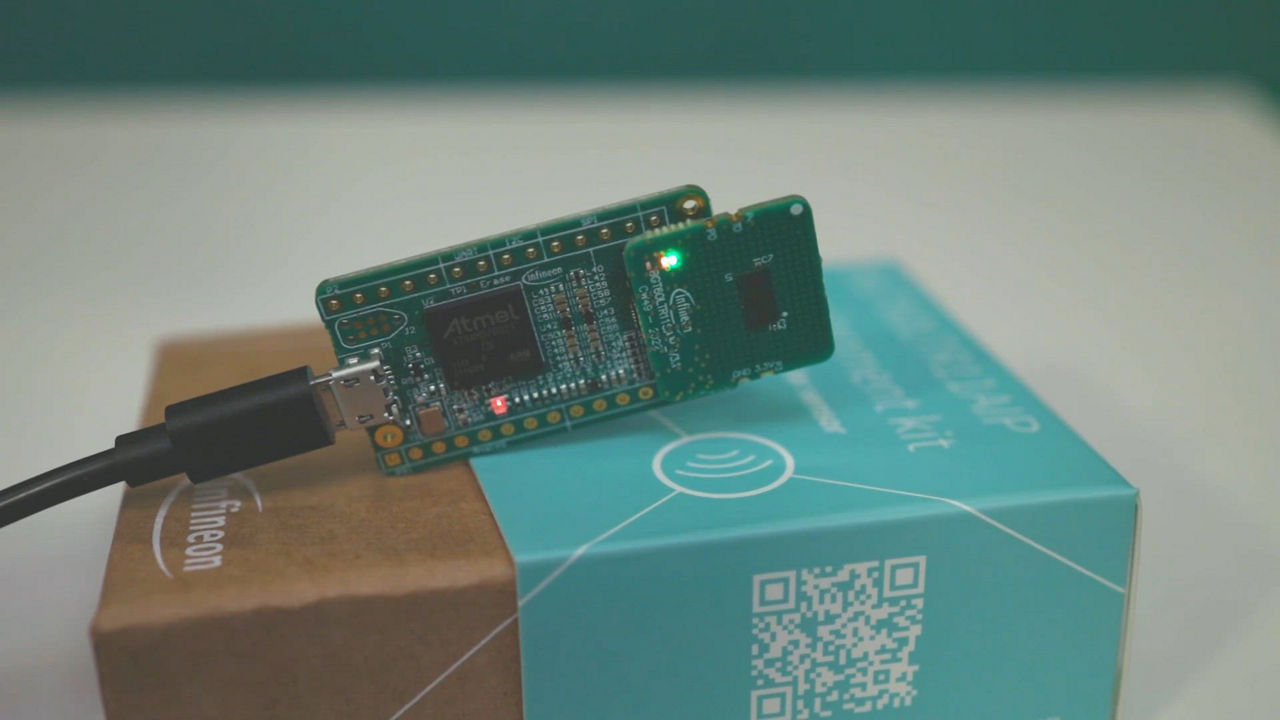

board
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGT60LTR11AIP
BGT60LTR11AIP
ea.
Data Sheet

Product details

  • Antenna
    Antennas in package
  • Current Consumption
    110 mA
  • Direction of Motion
    Yes
  • Family
    XENSIV™ 60GHz Radar Sensors
  • FoV (HPBW)
    90
  • Frequency Divider
    9.6 MHz
  • Frequency
    61 GHz to 61.5 GHz
  • Gain
    6 dBi
  • Max Detection Range
    14 m
  • Min Detection Range
    0.5 m
  • Motion
    Yes
  • Number of Rx Antennas
    1
  • Number of Tx Antennas
    1
  • Qualification
    Industrial (JEDEC20/22)
  • Speed [m/s]
    Yes
  • Supply Voltage
    1.5 V
  • Target Application
    Smart appliances, Air conditioners, Smart Home devices, Smart home security and alarm systems including IP cameras, Multicopter and drones;Smart Building, Lighting systems and lighting control (mainly indoor lighting), laptops or tablets, monitors, Displays such as TVs, Contactless switches, Automated door openers
  • Temperature Range
    -20 to + 85°C
Recommended
OPN
BGT60LTR11AIPE6327XUMA2
Product Status active and preferred
Infineon Package
PG-UF2BGA-42
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-UF2BGA-42
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The BGT60LTR11AIP is a fully integrated 60 GHz radar sensor with Antennas in Package (AIP) and built-in motion and direction of motion detectors. It operates autonomously, eliminating the need for an external microcontroller or additional signal processing. With its low power consumption and adjustable duty cycling, the BGT60LTR11AIP is an ideal solution for a wide range of applications that require battery-powered motion detection.

Features

  • 60 GHz radar transceiver MMIC
  • 3.3 x 6.7 x 0.56 mm³ package size
  • 1Tx 1Rx Antennas in Package (AIP)
  • 500 MHz bandwidth
  • SPI interface for chip config and data acquisition
  • Two modes of operation including autonomous mode
  • Integrated motion & direction of motion detectors
  • Adjustable radar chip parameters via QS pins
  • Standard FR4 material can be used for PCB design

Benefits

  • Up to 7 m detection range for human targets
  • Less than 2 mW power consumption possible
  • Requires minimal external circuitry
  • Up to 14 m detection range for human targets
  • Requires microcontroller unit (e.g. Arm® Cortex®-M0)
  • Advanced functionalities by SPI configuration or further signal processing

Diagrams

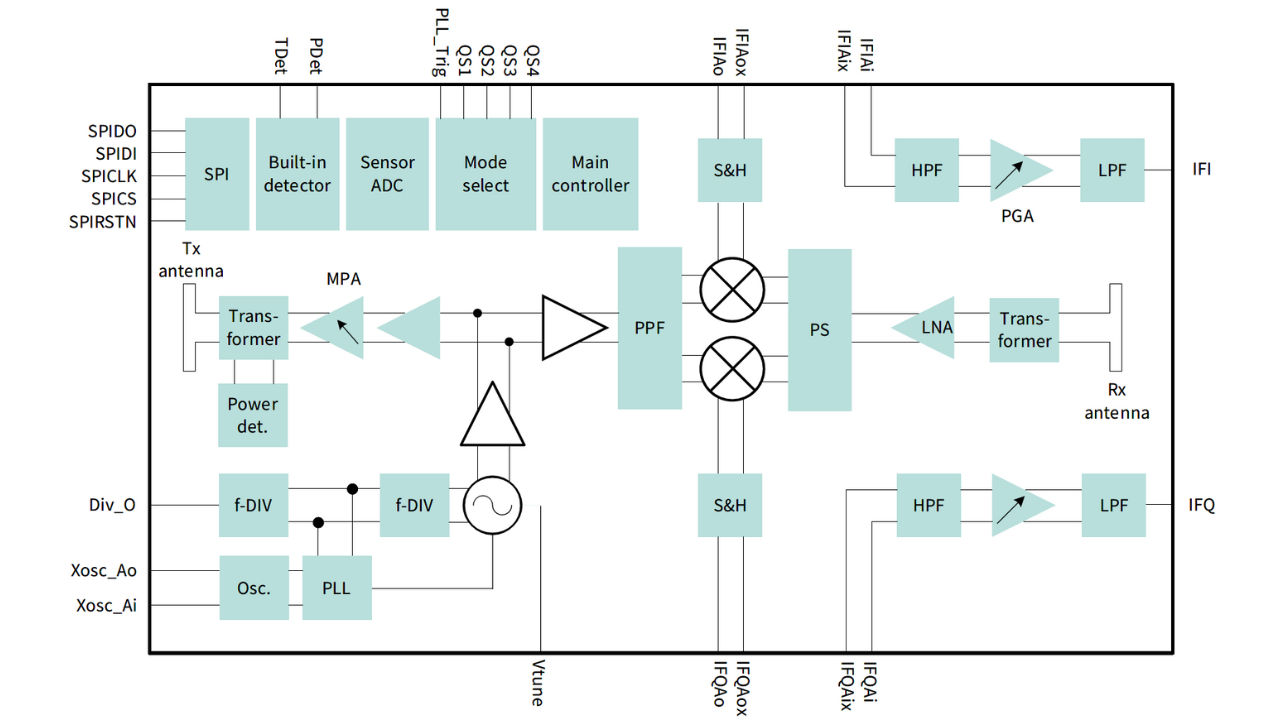

BGT60LTR11(S)AIP_Block-diagram
