2EDN7524G

Fast dual-channel 5A gate driver optimized for driving both standard and superjunction MOSFETs, as well as GaN power switching devices.
Data Sheet

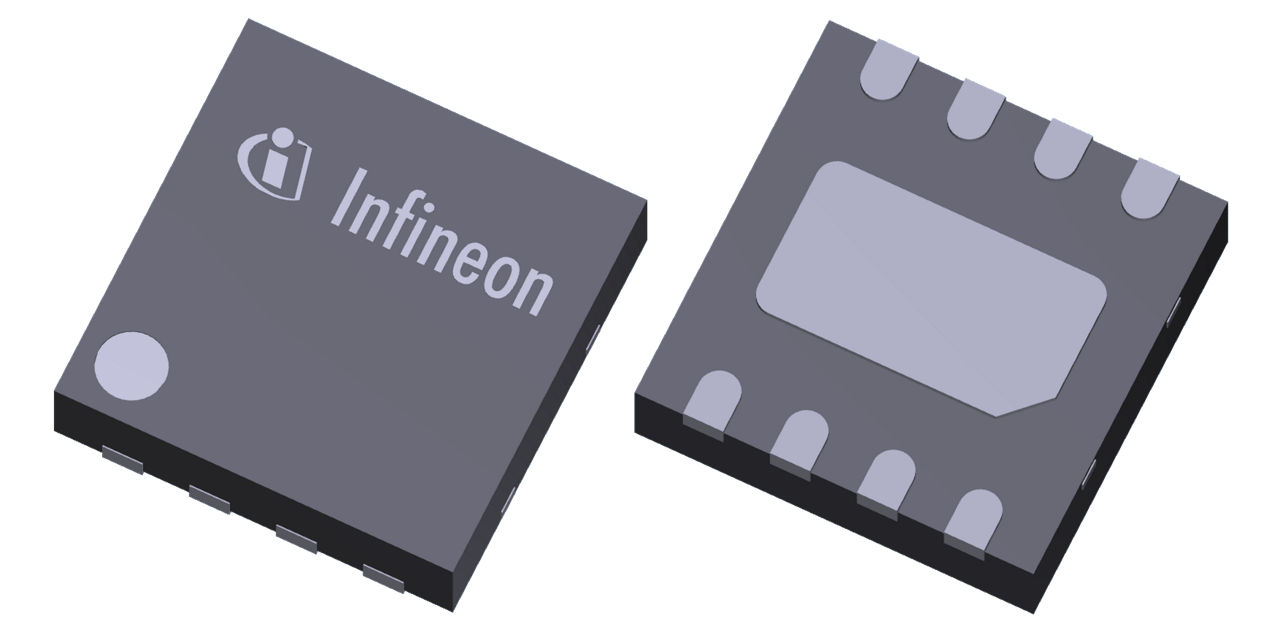

package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDN7524G
2EDN7524G
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.37
  • Channels
    2
  • Configuration
    Low-side
  • Input Vcc
    4.2 V to 20 V
  • Isolation Type
    Non-isolated
  • Output Current (Source)
    5 A
  • Output Current (Sink)
    5 A
  • Package
    PG-WSON-8
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    19 ns
  • Turn On Propagation Delay
    17 ns
  • VBS UVLO (Off)
    3.9 V
  • VBS UVLO (On)
    4.2 V
  • Voltage Class
    20 V
Recommended
OPN
2EDN7524GXTMA1
Product Status active
Infineon Package
PG-WSON-8
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-WSON-8
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The gate driver handles low voltage TTL and 3.3V CMOS signals (+20V to -10VDC) to prevent ground bouncing. Outputs can sink/source 5A with rail-to-rail stage and low impedances. 1ns delay matching enables doubling current up to 10A. Standard pin-outs and flexible logic configurations save R&D time. Available in PG-DSO-8, PG-VDSON-8, and PG-TDSSO-8 packages for improved thermal performance.

Features

  • 5A peak source/sink current
  • 5ns (typ.) rise/fall times
  • < 10ns propagation delay tolerance
  • 8V UVLO option
  • Propagation delay for both & for enable
  • -10V control and enable inputrobustness
  • Outputs robust against reverse current
  • 2 independent channels
  • < 1ns channel-to-channel miss-match
  • Industry standard pin-out and packages

Benefits

  • Fast Miller plateau transition
  • Fast and reliable MOSFET turn-off
  • Saves switching diodes
  • Boost drive I by concurr't switching 2ch
  • Straight-forward design up-grades
