Active and preferred
RoHS Compliant

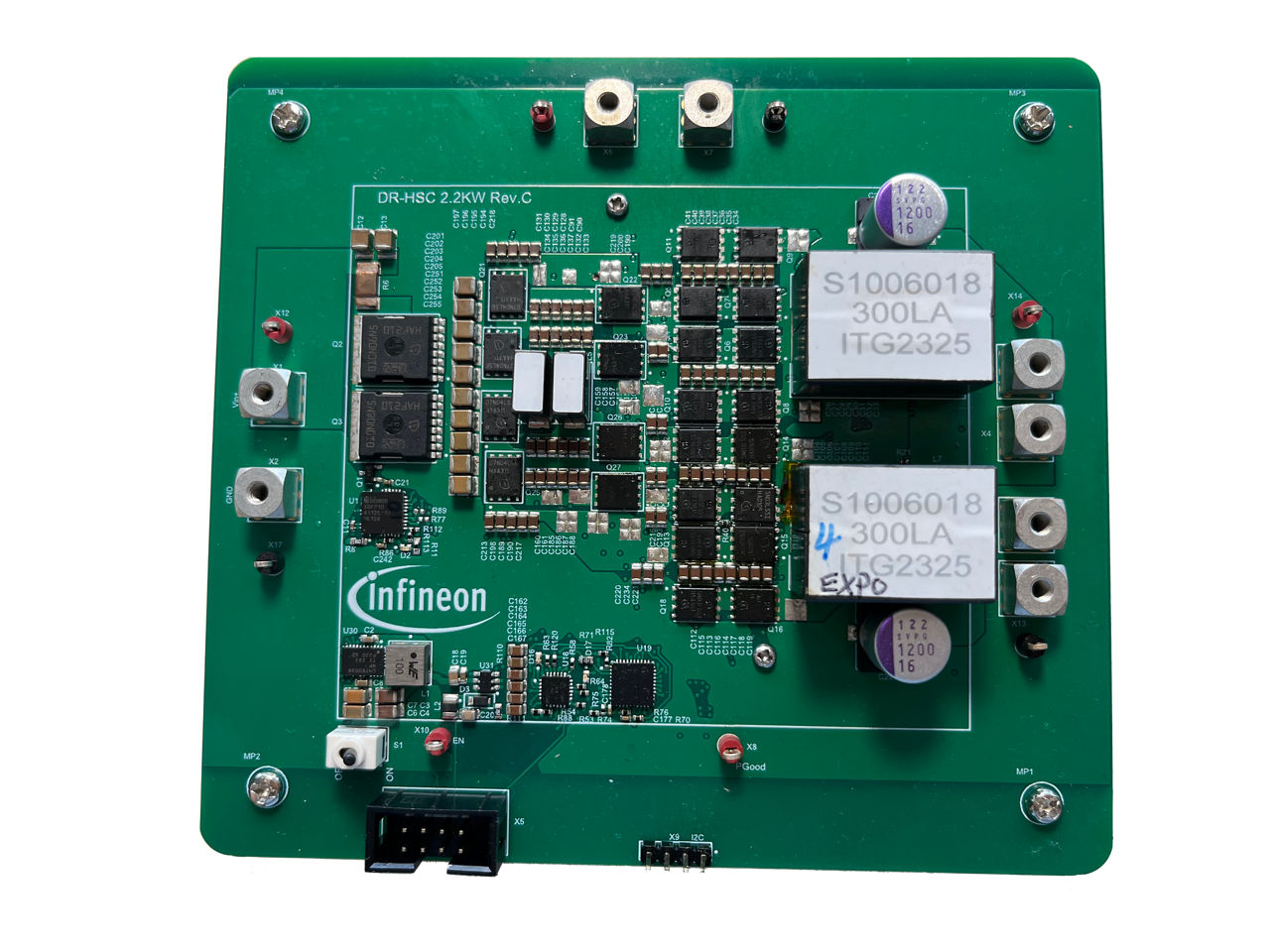

REF_2200W_DRHSC_XDP

2200 W 48 V to 12 V regulated convertor using XDP710 Hotswap controller and XDPP1100 digital controller.
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_2200W_DRHSC_XDP
REF_2200W_DRHSC_XDP
User Manual

Product details

  • Board Type
    Virtual Design
  • Configuration
    IPT010N08NM5; BSC005N03LS5I; BSC007N04LS6; 1EDN7550B; XDP710-002; XDPP1100-Q040; XMC1302-Q024X0064
  • Family
    DC-DC Converter
  • Frequency
    150 Hz to 460 Hz
  • Input Type
    DC
  • Mounting
    Stand Offs
  • Output Current
    0 A to 183 A
  • Output Voltage
    12 V to 12 V
  • Pout
    0 W to 2200 W
  • Qualification
    Industrial
  • Sub Application
    Industrial
  • Supply Voltage
    40 V to 60 V
  • Target Application
    Telecom
  • Topology
    DR-HSC
Recommended
OPN
REF2200WDRHSCXDPTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 48 V regulated DRHSC converter is capable of power conversion from 48 VDC to 12 VDC. The process of power conversion consist of two stages, the first stage is an unregulated ZVS switched capacitor converter, converting the 48 V input voltage down to 24 V voltage. followed by the regulated dual phase three level flying capacitor, converting the 24 V down to 12 V output voltage.  It achieves 97.6% peak efficiency.

Features

  • Digital controlled converter
  • PMBus™ and I2C communication
  • Hot swap provide the reliable softstart
  • Interleaved mode operation
  • Programmable Hotswap controller

Benefits

  • High efficiency IBC
  • ZVS for ZSC MOSFETs
  • 3LFC-DP natural balancing system
  • Minimal AC current in output inductor
  • Configurable with GUI support
  • High power density

Bill of Material
