EVAL-2ED1324S12PM1

Evaluation Board for 1200 V half-bridge SOI Gate Driver IC with Active Miller Clamp and 1200 V EasyPIM™ IGBT modules
User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-2ED1324S12PM1
EVAL-2ED1324S12PM1
ea.
User Manual

Product details

  • Applications
    3-Phase Motor Control
  • Board Type
    Evaluation Board
  • Dimensions
    85x55
  • Family
    IGBT Modules, Gate Driver
  • Input Type
    AC, DC
  • Interfaces
    Others
  • Motor Power max
    5000 W
  • Pout max
    5000 W
  • Product Name
    EVAL-2ED1324S12PM1
  • Qualification
    Industrial
  • Supply Voltage
    510 V
  • Target Application
    HVAC, Commercial Air Conditioning, Heat Pumps, Servo
  • Topology
    3 phase motor drive
Recommended
OPN
EVAL2ED1324S12PM1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

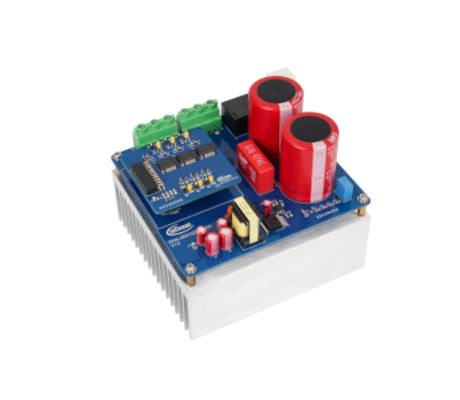

The EVAL-2ED1324S12PM1 is a power evaluation board that includes a M1 connector, an EasyPIM™ 1B 1200 V, 25 A with TRENCHSTOP™ IGBT7 (FP25R12W1T7_B11 ), and three half-bridge Silicon On Insulator (SOI) gate drivers 2ED1324S12P for motor drive applications. In combination with either EVAL-M1-101T or other control boards with compatible M1 connectors, the EVAL-2ED1324S12PM1 features and demonstrates our IGBT module and SOI gate driver technology.

Features

  • Negative VS transient voltage immunity of 100 V with repetitive 700 ns pulses
  • 2.3 A / 2.3 A peak output source / sink current capability
  • Integrated ultra-fast Over-Current Protection (OCP)
  • ± 5% high accuracy reference threshold
  • Less than 1 us over-current sense to output shutdown
  • Integrated Active Miller Clamp (AMC) with 2 A sink current capability
  • Integrated Short Circuit Clamp (SCC) function
  • Integrated dead-time and shoot-through prevention logic
  • Enable, Fault, and programmable Fault clear RFE input
  • 25 V VCC supply voltage (maximum)
  • Separate Logic (VSS) and output ground (COM)
  • 2 kV HBM ESD capability

Benefits

  • Nominal DC input voltage 510 V, max. 780 V
  • Design for max. 5 kW motor power output
  • Single shunt for current sensing
  • Sensing of DC-link voltage
  • Internal NTC-Thermistor for over temperature protection
  • +18 V and +3.3 V auxiliary power supplies on the board
  • M1 interface compatible with the iMOTION™ controller board
  • Floating channel designed for bootstrap operation
  • Independent per channel undervoltage lockout (UVLO)
