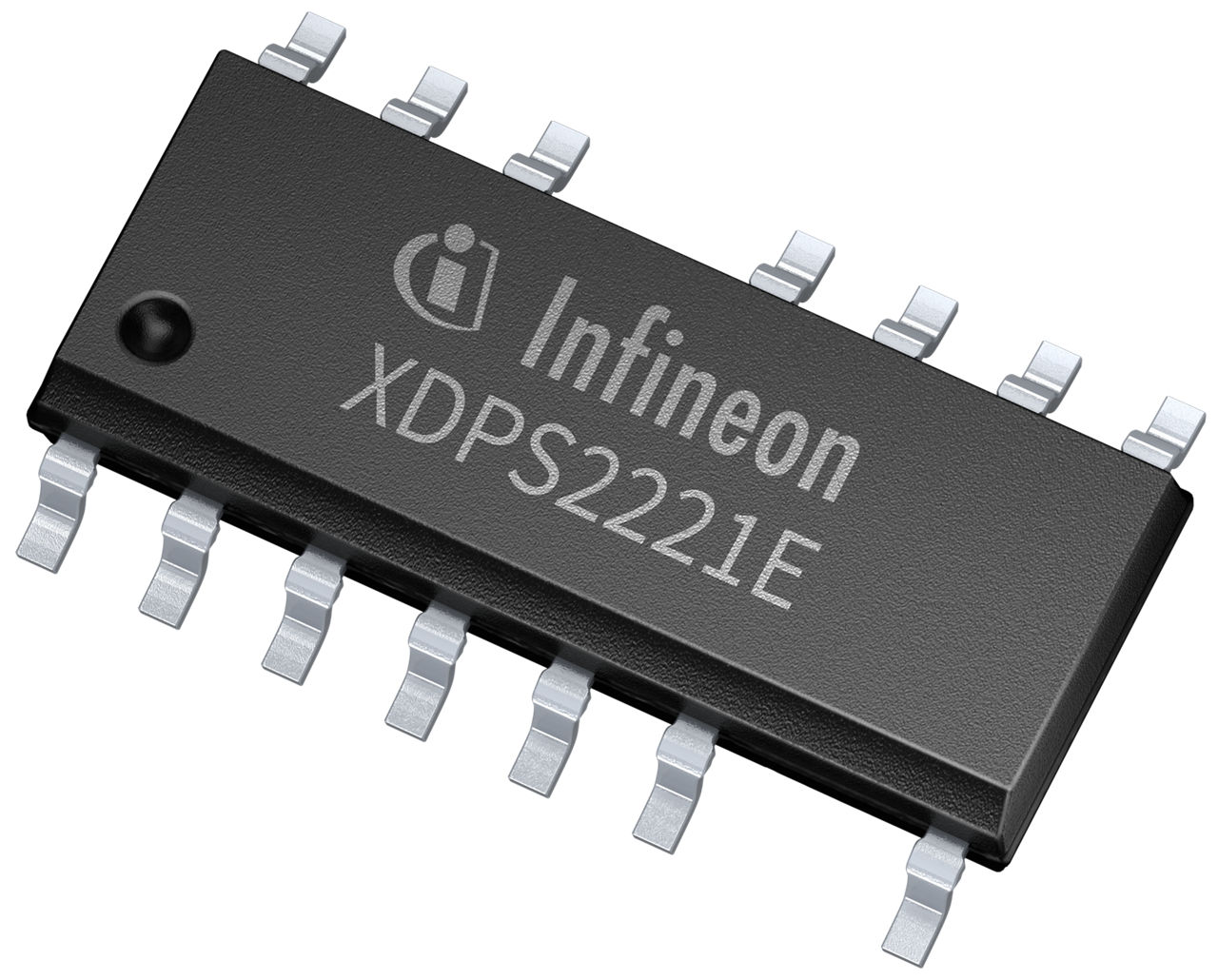

XDPS2221E

The XDP™ XDPS2221E PWM combines multimode AC-DC PFC and DC-DC hybrid-flyback controllers, ideal for wide output voltage range designs.
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPS2221E
XDPS2221E
Data Sheet

Product details

  • Applications
    USB-C adapters and chargers, Battery chargers, SMPS
  • Input Voltage
    90 V to 264 V
  • Moisture Sensitivity Level
    3
  • Output Voltage Type
    Vdc
  • Output Voltage
    5 V to 48 V
  • Qualification
    Industrial
  • Topology
    Hybrid Flyback
  • VCC
    11 V to 24 V
OPN
XDPS2221EXUMA1
Product Status on request
Infineon Package
PG-DSO-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package
PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
XDP™ XDPS2221E is a digital combo controller with configurable parameters for protection modes and maximized system performance. The novel ZVS hybrid-flyback (HFB, known also as asymmetrical half-bridge) topology enables ultra-high system efficiency.
The integration of PFC and hybrid-flyback into a single package optimizes the system performance by harmonized operation of the two stages and reduces the external bill of material components.

Features

  • High voltage start-up cell
  • Integrated gate drivers for Si/GaN FETs
  • Supports wide AC input voltage range
  • Harmonized control of PFC and HFB (AHB)
  • PFC QRM multimode operation
  • Enhanced PFC dynamics
  • Lowest standby power via burst mode
  • ZVS operation at high/low-side switch
  • HFB peak current for robust control

Benefits

  • Efficiency of >95% and low standby power
  • Complies with DoE-7 and CoC-2 standards
  • Ultra-high power for compact designs
  • Bulk capacitance reduction
  • Improved load transient response
  • High stability and low audible noise
  • Simplified design with tools and guide
