TLT125D0EJ

The TLS125D0EJ (Tj,max = 160°C) is an Automotive low-dropout voltage tracking regulator (LDO) with high Tracking Accuracy, Reverse Current Protection
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLT125D0EJ
TLT125D0EJ
ea.
Data Sheet

Product details

  • Accuracy
    0.1 %
  • Base Product
    TLx125
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear Trackers
  • Hold
    no
  • Operating Temperature
    -40 °C to 160 °C
  • Operating Voltage
    4 V to 40 V
  • Output Current max
    250 mA
  • Output Voltage Type
    Tracking
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    yes
  • Qualification
    Automotive
  • Quiescent Current
    65 µA
  • Regulator Type
    Trackers
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLT125D0EJXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

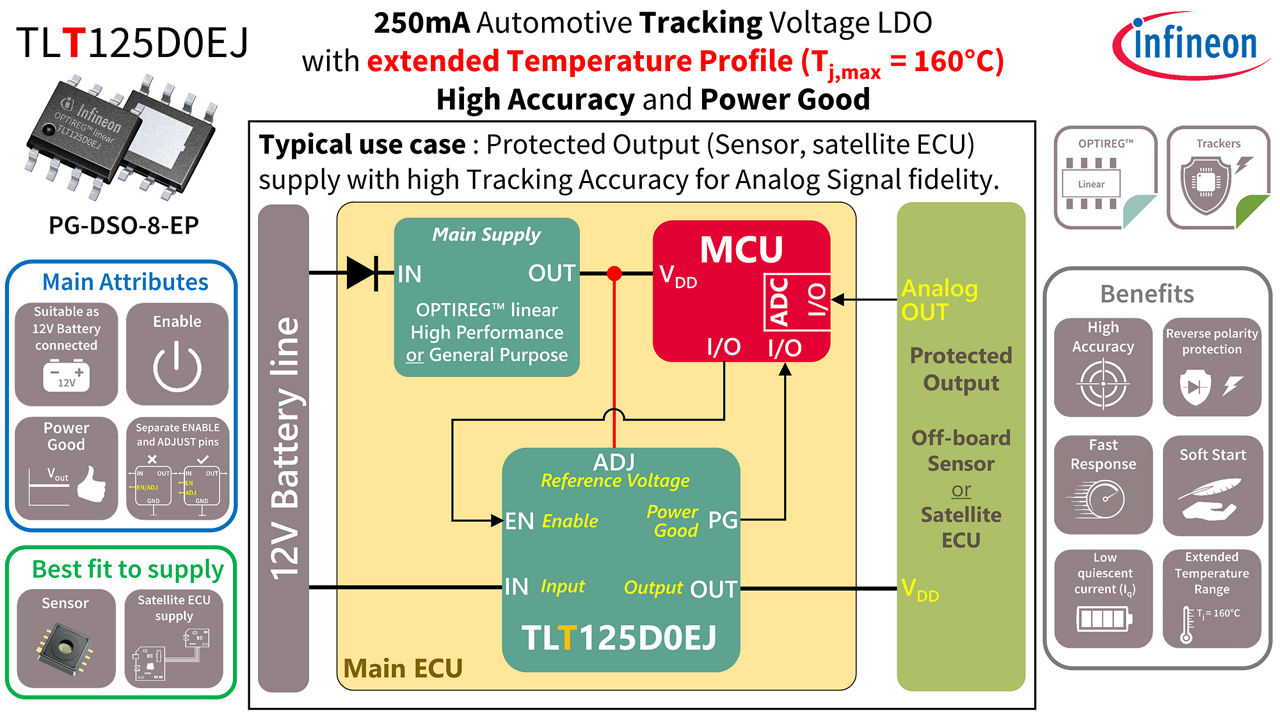

The OPTIREG™ TLT125D0EJ is a high-accuracy, low-dropout voltage tracking regulator for automotive applications. It supplies off-board systems with up to 40V and 250mA. The output voltage accurately follows the 2.0V reference applied to ADJ input. It operates at a maximum junction temperature of 160°C.

Features

  • Extended temp R: -40°C ≤ Tj ≤ 160°C
  • 250 mA current capability
  • Very high accuracy V tracking
  • Output V adjustable down to 2.0 V
  • Stable with ceramic output capacitors
  • Very low dropout V
  • Internally controlled soft start
  • Wide input V R: -16 V ≤ VIN ≤ 45 V
  • Short circuit protected O/P
  • Reverse polarity protected input
  • Overtemperature protection

Benefits

  • Very wide input voltage range
  • Low passive component BOM cost
  • Supervisory functionality (RESET)
  • Suitable for Cranking condition
  • Low current consumption
  • Best fit to supply:Sensors
  • Satellite (secondary) ECU supply
  • Microphones
  • Power Switch for Off-board loads
  • Small LED

Applications

Diagrams

TLT125D0EJ_Diagram
TLT125D0EJ_Diagram
TLT125D0EJ_Diagram TLT125D0EJ_Diagram TLT125D0EJ_Diagram
TLT125D0EJ_Diagram TLT125D0EJ_Diagram TLT125D0EJ_Diagram
×
