TLE9891-2QTW61

The MOTIX™ TLE9891-2QTW61 is a 3-phase bridge driver with CAN 2.0 transceiver
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9891-2QTW61
TLE9891-2QTW61
ea.
Data Sheet

Product details

  • Clock Frequency max
    60 MHz
  • Family
    MOTIX™ 32-bit motor control SoC
  • Frequency
    60 MHz
  • GPIO
    14
  • High Voltage Monitor Input
    1
  • Instruction Set Architecture
    Arm® Cortex®-M3
  • Interfaces
    CAN2.0
  • Low Side Switch
    0
  • MOSFET Drivers (High Side)
    3
  • MOSFET Drivers (Low Side)
    3
  • Operating Voltage
    5.5 V to 28 V
  • Operational Amplifier
    Yes
  • Currently planned availability until at least
    2038
  • PN MOS DRIVER
    No
  • Product Category
    Microcontroller (MCU)
  • RAM
    16 kByte
  • Solid Flash
    128 kByte
  • Technology
    MOTIX™ MCU (SoC)
  • Temperature
    - 40°C - 175°C
  • Tj max
    175 °C
Recommended
OPN
TLE98912QTW61XUMA1
Product Status active and preferred
Infineon Package
PG-TQFP-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TQFP-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

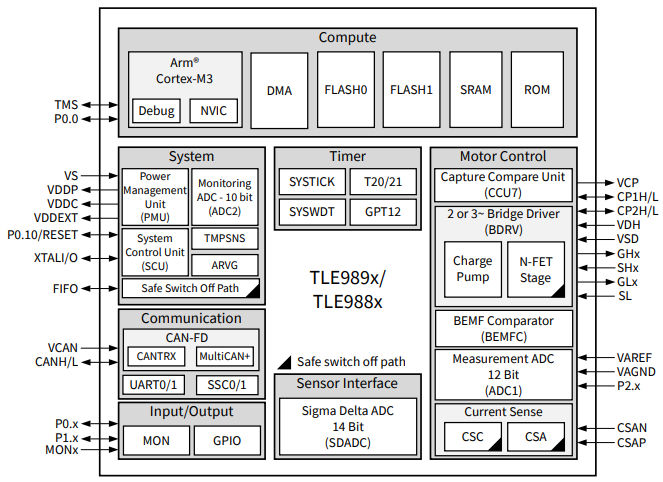

The MOTIX™ TLE9891-2QTW61 is a single-chip 3-Phase motor driver integrating an Arm® Cortex®-M3 core, flash memory, analog and mixed-signal peripherals, CAN transceiver, and driving stages. It features two 14-bit sigma-delta ADCs and enables advanced motor control algorithms. Moreover, the safe switch of path developed according to ISO26262 enables safety. This automotive qualified device is a perfect fit for BLDC motor control applications.

Features

  • 32-bit Arm® Cortex®-M3 up to 60 MHz
  • Single power supply from 5.5 V to 28 V
  • On-chip oscillator and PLL for clock
  • 128 KB flash, 16 KB RAM, EEPROM emu
  • Integrated CAN-FD transceiver
  • High voltage monitoring pin (MON)
  • Fast synchronous communication (SSC)
  • Three-phase bridge driver (BDRV)
  • Low-side shunt current sense amplifier
  • 8-bit and 12-bit ADCs
  • 2x 14-bit SDADC, 2 differential inputs
  • Tj: -40°C to 175°C, Package: TQFP-48

Benefits

  • High performance
  • Optimized BOM cost
  • Functional safety (ASIL B)
  • Premium design-in experience

Applications
