TLE9561-3QX

The MOTIX™ TLE9561-3QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9561-3QX
TLE9561-3QX
ea.
Data Sheet

Product details

  • Channels
    8
  • Classification
    ISO26262-ready
  • Configuration
    Half Bridge
  • Family
    MOTIX™ motor system ICs (SBC)
  • Gate current max
    100 mA
  • Interfaces
    SPI
  • Operating Voltage
    5.5 V to 28 V
  • Output Drivers
    1 x Dual-stage Charge Pump, 4 x High-Side Switch 150 mA
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Quiescent Current
    18 μA (typ) Sleep Mode
  • Supply Voltage absolute max ratings
    40 V
  • Supply Voltage
    5.5 V to 28 V
  • Technology
    MOTIX™ SBC
  • Temperature
    - 40°C - 150°C
  • Transceiver
    1 x CAN FD
  • Transmission Rate max
    5 MBit/s
  • Voltage Regulator Output ((VCC1))
    5V / 250 mA
  • Wake-up Inputs
    Wake Pins, CAN
Recommended
OPN
TLE95613QXXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

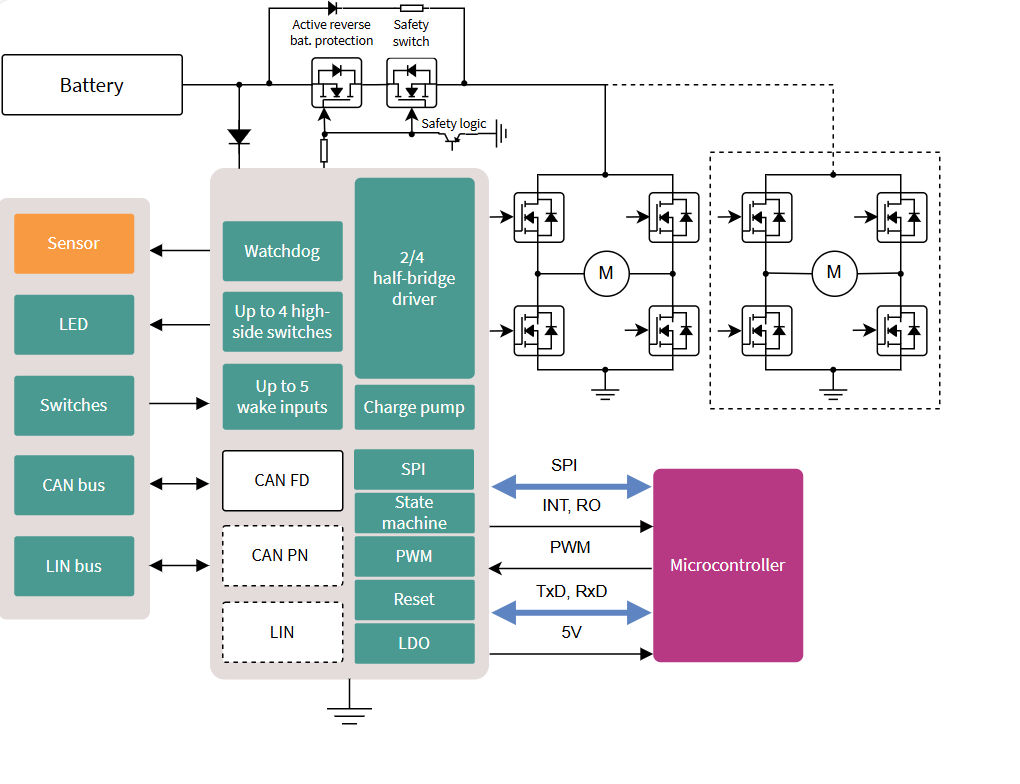

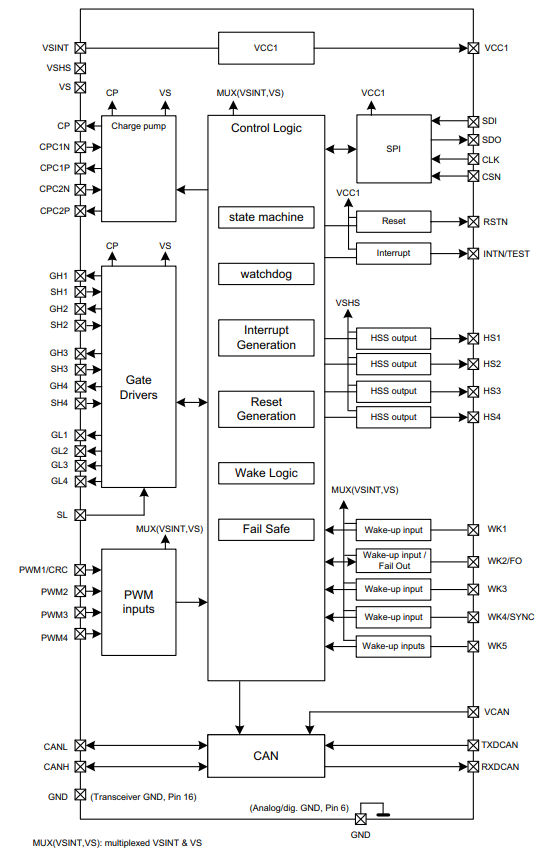

The device integrates a 5 V low-dropout voltage regulator, one HS-CAN transceiver supporting CAN FD, CAN Partial Networking (incl. FD Tolerant Mode), four half-bridges for DC motor control, and one 32 bit serial peripheral interface (SPI). This device offers diagnostic and supervision features and is ISO 26262-ready.

Features

  • Low-drop voltage regulator 5 V, 250 mA
  • Half-bridge gate drivers for N-channel
  • Adaptive multi-stage MOSFET gate control
  • High-speed CAN supporting CAN FD
  • Four high-side outputs 7 Ω typ.
  • 4 PWM inputs: High/low-side compatible
  • Up to 25 kHz PWM frequency
  • 32-bit SPI with CRC
  • Ultra-low current in stop/sleep mode
  • Diagnostic and supervision features

Benefits

  • Cut PCB size by 50% through integration
  • Efficient MOSFET pre-charge control
  • Certified AEC-Q100/101 for Auto.
