TLE9104SH

The TLE9104SH is designed for Automotive Powertrain applications and equipped with a 16-bit Serial Peripheral Interface(SPI) for control and diagnosis
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9104SH
TLE9104SH
ea.
Data Sheet

Product details

  • Channels
    4
  • Comments
    inductive and resistive loads (e.g. Solenoids, Injectors, Valves, Relays)
  • High Side / Low Side
    0/4
  • ID(lim)(multiple)
    4 x 5 A
  • Operating Temperature
    -40 °C to 150 °C
  • Over Current Protection
    Switch-off
  • Pin Count
    20 Pins
  • Currently planned availability until at least
    2038
  • RDS (on) (multiple)
    4 x 300 mΩ (typ @ 150°C)
  • Thermal Class
    Heatslug down
  • toff max
    15 µs
  • ton max
    15 µs
  • VDD
    3.3 - 5.0 V
  • VDS(CL)
    50 V to 60 V
Recommended
OPN
TLE9104SHXUMA1
Product Status active and preferred

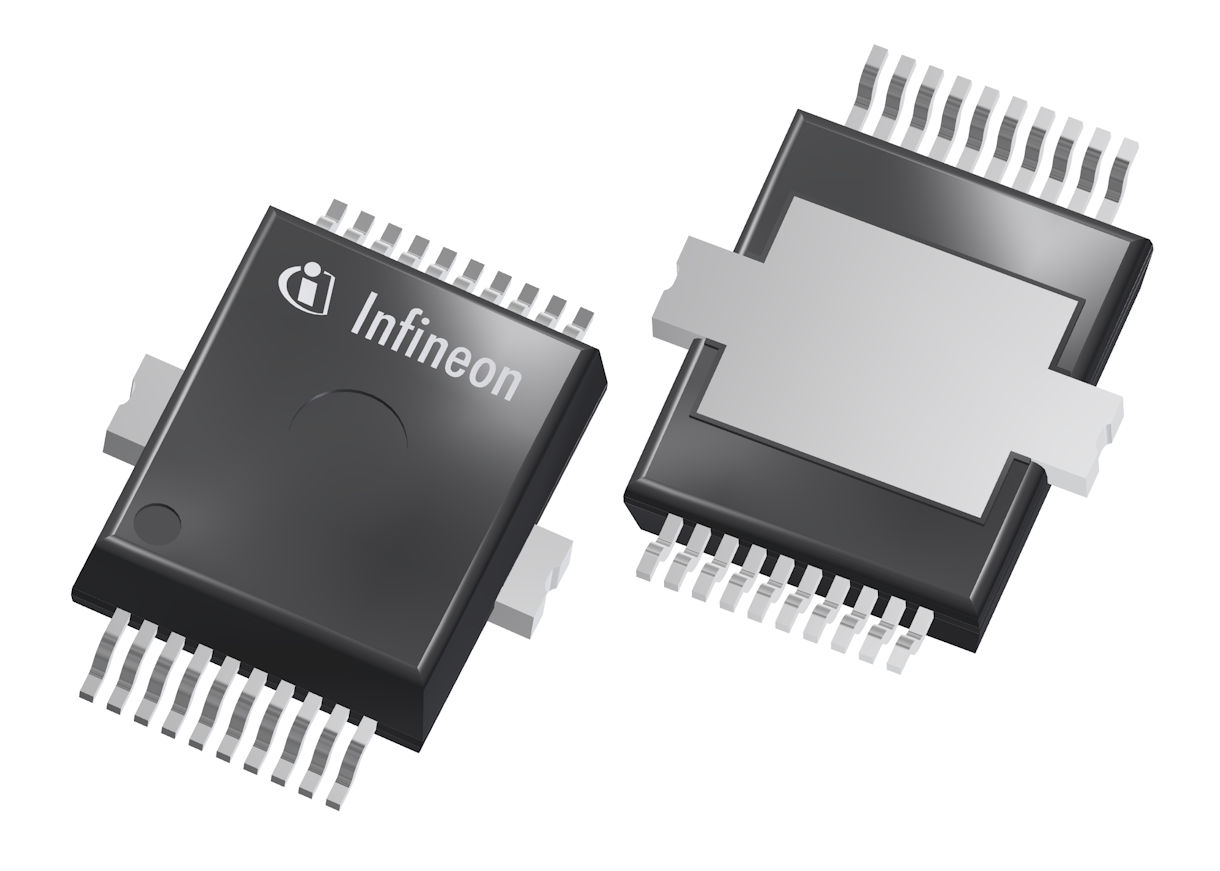

Infineon Package
PG-DSO-20
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-20
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Introducing the Smart 4-channels Low-Side Switch with over-current/temperature protection and active clamping circuitry for inductive loads. Detects load status (SCG, OL, SCB) via SPI. Ideal for Automotive and Industrial applications like Engine Management, Transmission Control, and Battery Management Systems. Offers direct switch control with 4 input pins. Ensures safety and control of high-current/high-energy actuators.

Features

  • 16-bit SPI at 8MHz
  • 4x Direct Input Pins
  • VDS(CL): 50…60 V (Internal Clamping)
  • VDS(CL): 50…60 V (Internal Clamping)
  • RDSON: 300 mΩ (@ 150˚C)
  • 3 A Nominal Load Current
  • VIO pin 3.3V & 5.5V SPI compatibility
  • Independent on-state & off-state diag
  • Configurable Overcurrent protection
  • Electrostatic Discharge (ESD) protection
  • Extra O/P EN pin for safety applications

Benefits

  • High current/Energy capability
  • Load at 50-60V VDS(CL)
  • Cost and Size Optimized Package
  • Protection&Diagnosis fun(SCB,OT,OC,SCG)
  • Safety features(EN pin,…)
  • SPI communication
