TLE8082ES

TLE8082ES supports OBDII-compliant EURO5/BHARATVI 2-/3-wheeler combustion engine systems with the focus on Electronic Fuel Injection(EFI) technologies
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE8082ES
TLE8082ES
ea.
Data Sheet

Product details

  • 5V Supply
    150 - 200 mA
  • Family
    EMS_SMALL_ENGINE
  • Output Current Type ( Inductive Load Channel)
    2 x 2,6A (max), 1x 1,3 A (max)
  • Output Current Type (Resistive Load Channel)
    1 x4,5 A (max)
  • Planned to be available until at least
    2037
  • SPI I/F Diagnosis / Control
    Yes
  • Supply Voltage
    6 V to 40 V
  • VRS I/F
    No
Recommended
OPN
TLE8082ESXUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE8082ES is safeguarded against overtemperature and overcurrent, offering diagnostic features for each integrated power stage. It integrates a pre-regulator for external FETs, a sensor supply, communication supply for on-board transceivers, an SPI interface, and four power stages to drive various load types in engine management systems. This compact IC provides a cost-optimized solution to meet modern emission standards and regulations.

Features

  • Voltage pre-regulator with external FET
  • 5 V sensor supply (tracking 5 V supply input)
  • 5 V communication supply (tracking 5 V supply input)
  • Permanent supply feature
  • dedicated KEY input
  • After-run functionality
  • 4 low side drivers for inductive loads with overtemperature, overcurrent protection and open load/short to GND in off diagnosis
  • 3 low-side power stages
  • 1 low-side power stage with current measurement feature (O2-heater)
  • Window watchdog module
  • Serial Peripheral Interface (SPI)
  • Green Product (RoHS compliant)
  • AEC-Q100 qualification

Benefits

  • Best fit partitioning to BSVI/OBDII compliance through understanding of system and customer requirements
  • Smallest size/cost system solution
  • Thermally feasible system solution
  • Maximum utilization of functions of components already in use
  • Evolutionary approach based on existing EFI-ECU solutions to reduce software effort
  • Highest Quality Standards
  •

Diagrams

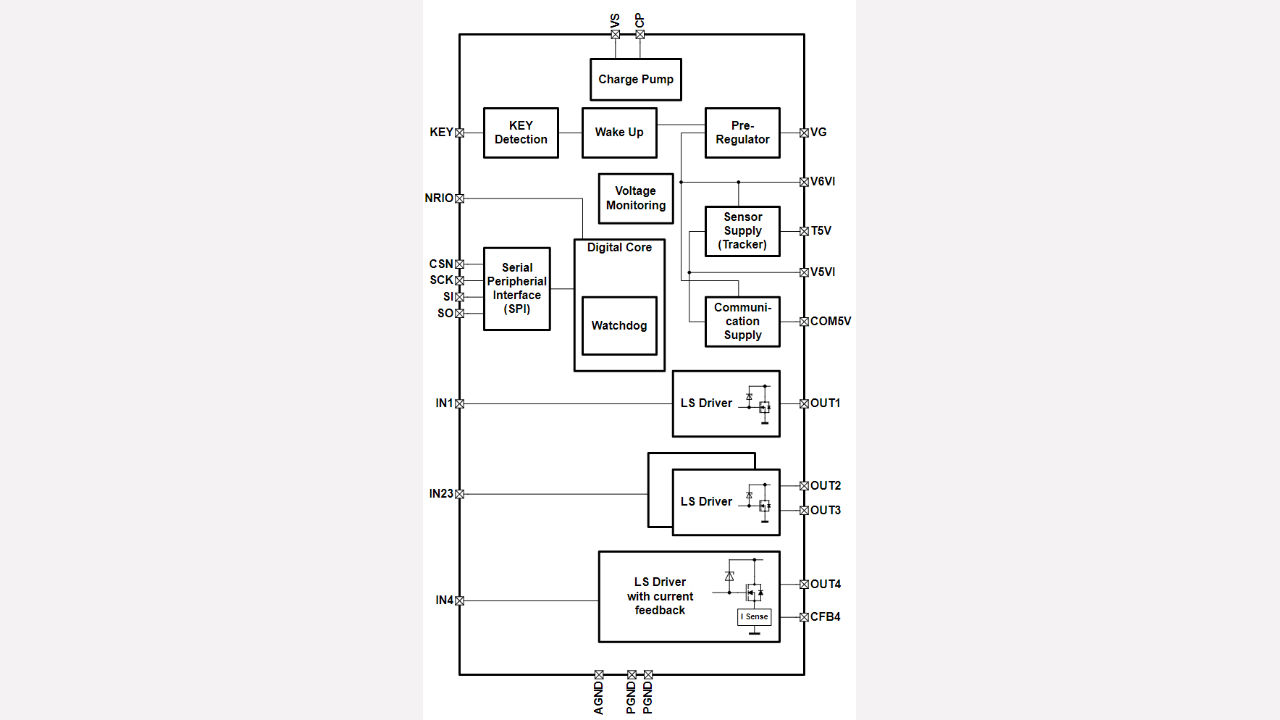

tle8082es
tle8082es
tle8082es tle8082es tle8082es
×
