Reference design board-1000 W, 400 V phase-shifted full-bridge current-doubler with XDP™ digital power controller and CoolGaN™ HEMT
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

VD_1000W_GAN_PSFB_XDP
VD_1000W_GAN_PSFB_XDP
Application Notes

Product details

  • Board Type
    Virtual Design
  • Dimensions
    132mm× 55mm× 34mm
  • Family
    Gate Driver, Digital power controller, OptiMOS™ 5
  • Frequency
    350 kHz to 350 kHz
  • Input Type
    DC
  • Output Current
    0 A to 84 A
  • Output Voltage
    12 V to 12 V
  • Pout
    1024 W
  • Product Name
    VD_1000W_GAN_PSFB_XDP
  • Qualification
    Standard
  • Supply Voltage
    360 V to 400 V
  • Target Application
    Power Supplies, Telecom
  • Topology
    Isolated, Full Bridge, Phase Shift Full Bridge, Single Phase
Recommended
OPN
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

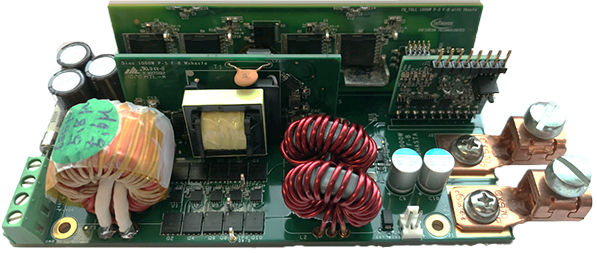

The VD_1000W_GaN_PSFB_XDP is a reference design for an isolated 400V to 12V phase-shifted full-bridge with current-doubler using the XDPP1100-Q040 XDP™ digital power controller. It offers up to 95.36% efficiency, fast transient performance, and integrates PMBus and I2C communication. REF_XDP_1000W_GAN_PSFB is equipped with IGT60R070D1 high-voltage gallium nitride FETs, which enable high switching frequency operation at 350 kHz.

Features

  • Voltage accuracy up to ±0.5 % over full temperature range -40 °C to 125 °C
  • Fully programmable digital control based on 32-bit, ARM® Cortex™-M0
  • Magnificent feed-forward and load regulation with Infineon patented fast transient response control
  • System configuration, monitor and control with PMBus and GUI Support
  • Temperature compensation

Benefits

  • Pre-programmed control providing the fastest time-to-market
  • High power density at 110 W/in3 with GaN semiconductor switches
  • Accurate V/I/Temp telemetry with advanced fault protection
  • Innovative system control with fast response
  • Provides future proof optimal solution via PMBus adjustments

Applications
