TLE9893-2QK EVALKIT

MOTIX™ MCU TLE9893-2QK Evaluation Kit with CAN-FD for BLDC motor control
User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9893-2QK EVALKIT
TLE9893-2QK EVALKIT
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    110 mm x 65 mm
  • Family
    Motor Driver, Microcontroller, MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Output Voltage
    6 V to 28 V
  • Product Category
    Evaluation Board
  • Qualification
    Automotive
  • Sub Application
    Engine cooling fan, Sensor-less and sensor-based BLDC motor application, High efficiency pumps and fans, Water pump, HVAC blower, Fuel pump, Oil pump
  • Supply Voltage
    6 V to 28 V
  • Target Application
    Automotive, Motor Control & Drives
  • Topology
    3-Phase Motor, B6 Bridge
Recommended
OPN
TLE98932QKEVALKITTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

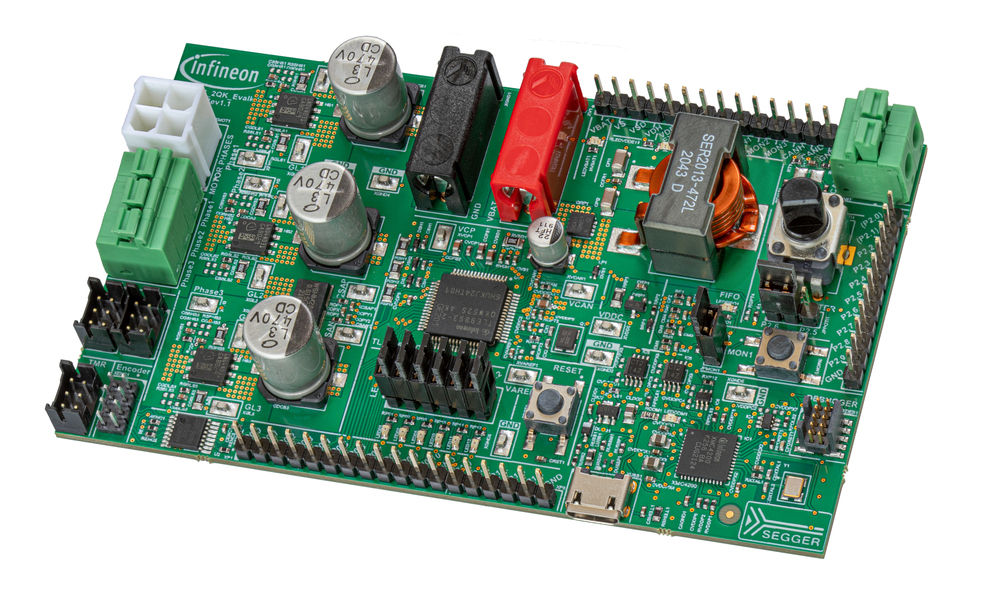

The TLE9893-2QK Evaluation Kit is designed to provide a thorough evaluation of all functions and peripherals of the TLE9893-2QKW62S. This kit enables direct connection to a Brushless DC motor via MOSFETs in a B6-bridge configuration. As a super set device, the TLE9893-2QKW62S features all the functionalities of the MOTIX™ TLE989x family, making it an ideal choice for evaluating the full range of capabilities and features offered by these devices.

Features

  • Three MOSFET half-bridges
  • On-board connectors
  • PI filter
  • Reverse polarity protection
  • CAN-FD connector
  • Option for CAN-FD termination
  • Push buttons for MON1 and reset pins
  • LEDs for supply voltage
  • SEGGER J-Link on-board debugger
  • Documentation including:
    • User Guide
    • Schematics and layout files
