Active and preferred

TLE94112ES_RPI_HAT

Easy-to-use DC Motor Control HAT equipped with TLE94112ES and TLS4125D0EP V50
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE94112ES_RPI_HAT
TLE94112ES_RPI_HAT
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    56 x 65 x 25 mm
  • Family
    Motor Driver
  • Input Type
    DC
  • Interfaces
    SPI
  • Mounting
    Pin connector
  • Output Current
    0.9 A to 2.5 A
  • Output Voltage
    5 V, 5.5 V to 20 V
  • Product Name
    TLE94112ES HAT for Raspberry Pi
  • Qualification
    Automotive
  • Supply Voltage
    5.5 V to 20 V
  • Target Application
    Industrial, Consumer, Motor Control & Drives, Automotive
  • Topology
    Half Bridge
Recommended
OPN
TLE94112ESRPIHATTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

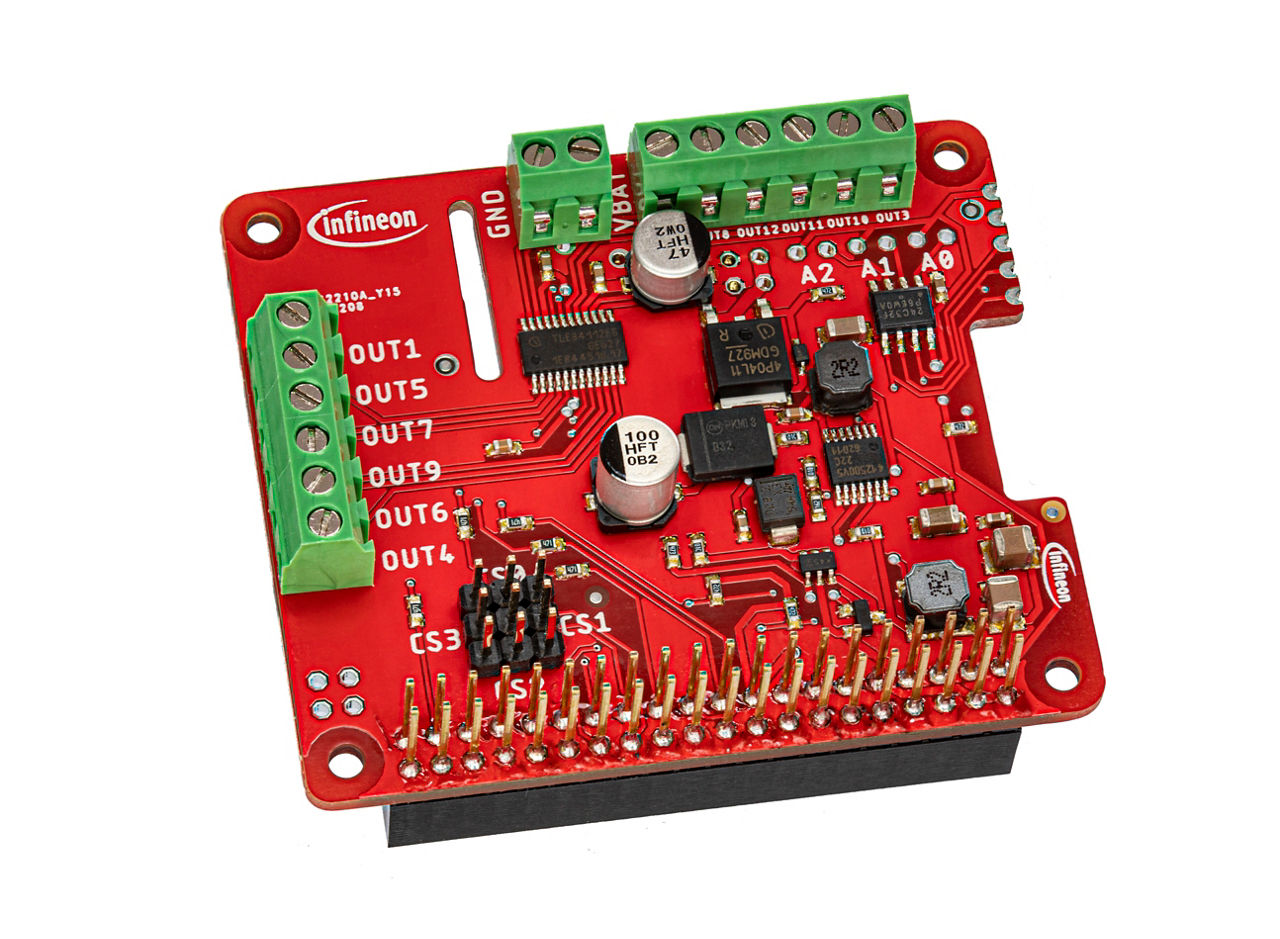

The Infineon DC Motor Control HAT with TLE94112ES is a Raspberry Pi compliant HAT with a twelve-fold half-bridge driver for driving DC motors. It comes with a software library and is suitable for automotive motion control applications. The HAT includes a step-down converter to power the Raspberry Pi and accelerates development by providing an easy evaluation platform. Connect up to 11 motors or loads for custom applications.

Features

  • Twelve half-bridge power outputs
  • Wide input voltage range of 5.5 V to 20 V
  • Powering Raspberry Pi: TLS4125D0EP V50
  • Reverse polarity protection
  • Protection e.g. over-temp. or current
  • SPI interface with zero clock diagnosis
  • Enhanced EMC performance
  • PWM Generator: 80Hz, 100Hz, 200Hz

Benefits

  • Compact design
  • Quick & easy setup
  • Multi-motor applications
  • Wide range of applications

Applications
