TLE4241SYS_SHIELD

Shield for Arduino and evaluation board for TLE4241GM
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4241SYS_SHIELD
TLE4241SYS_SHIELD
ea.
User Manual

Product details

  • Board Type
    Demo Board, Evaluation Board
  • Description
    Shield for Arduino and evaluation board for TLE4241GM
  • Family
    LED Driver
  • Input Type
    DC
  • Qualification
    Automotive
  • Sub Application
    Lighting,\\nRemote Keyless Entry, \\nBody Control Module,\\nInfotainment, Alarm, \\nDashboard, \\nImmobilizer, Blind spot detection, \\nCorner radar, \\nParking radar, \\nChassis control, \\nTurn indicator
  • Supply Voltage
    8 V to 40 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
TLE4241SYSSHIELDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

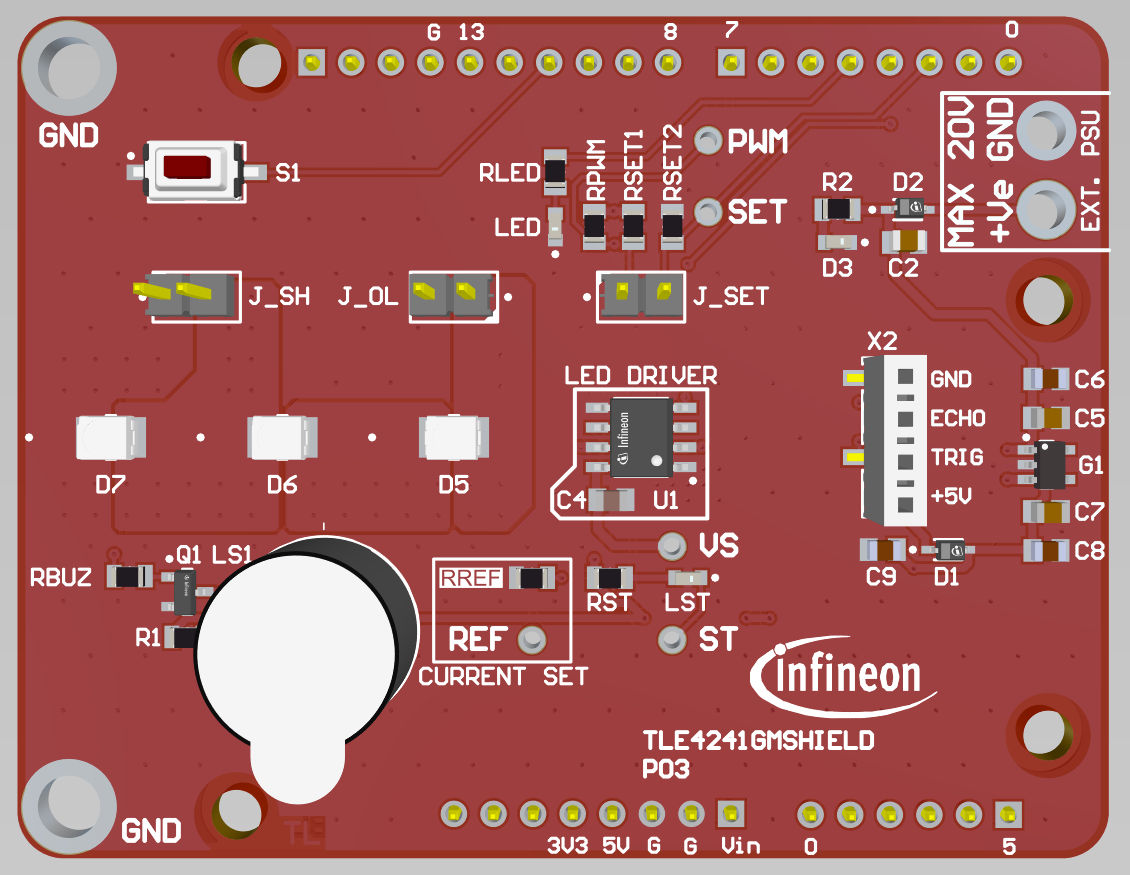

The TLE4241SYS_SHIELD has double usage: it can either be used as a standalone evaluation board for the TLE4241GM or as a shield for Arduino. The board is especially suited to quickly setup demos in the context of blind spot indication as it features input for ultrasound sensor, has an integrated buzzer and features 3 LEDs. Such designs are typically found in rear radar applications or are directly integrated into mirrors. The TLE4241GM is an AEC-qualified Adjustable Current device in the LITIX™ Linear family, especially designed to drive LEDs

Features

  • Built in diagnosis and protection features
  • Adjustable constant output current up to 70 mA
  • Wide input voltage range
  • Voltage loop available to implement constant output voltage power supply
  • Input for ultrasound sensor
  • 3 red LEDs
  • Integrated buzzer
  • Button to switch between Arduino codes

Benefits

  • The board serves as a simple template for driving LEDs in e.g. blind spot detection systems
  • Provided code example in Arduino to quickly setup up two potential applications

Applications
