TLD4020-3STD_KIT

NEW
TLD4020-3ET Standard Evaluation Kit comprising main board TLD4020-3STD_EVAL and daughter board TLD4020-3DB
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD4020-3STD_KIT
TLD4020-3STD_KIT
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    linear current sink
  • Description
    The TLD4020-3STD_KIT is an evaluation kit for the TLD4020-3ET LED driver.
  • Dimensions
    121 x 105 mm
  • Family
    LITIX™ Interior
  • Input current
    160 mA
  • Input Type
    DC
  • Interfaces
    LIN
  • Operating Temperature
    -20 °C to 85 °C
  • Output Current
    0 mA to 51.5 mA
  • PWM Frequency max
    610 MHz
  • Supply Voltage
    7 V to 29 V
  • Target Application
    Automotive Interior Lighting
  • Topology
    Linear
Recommended
OPN
TLD40203STDKITTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

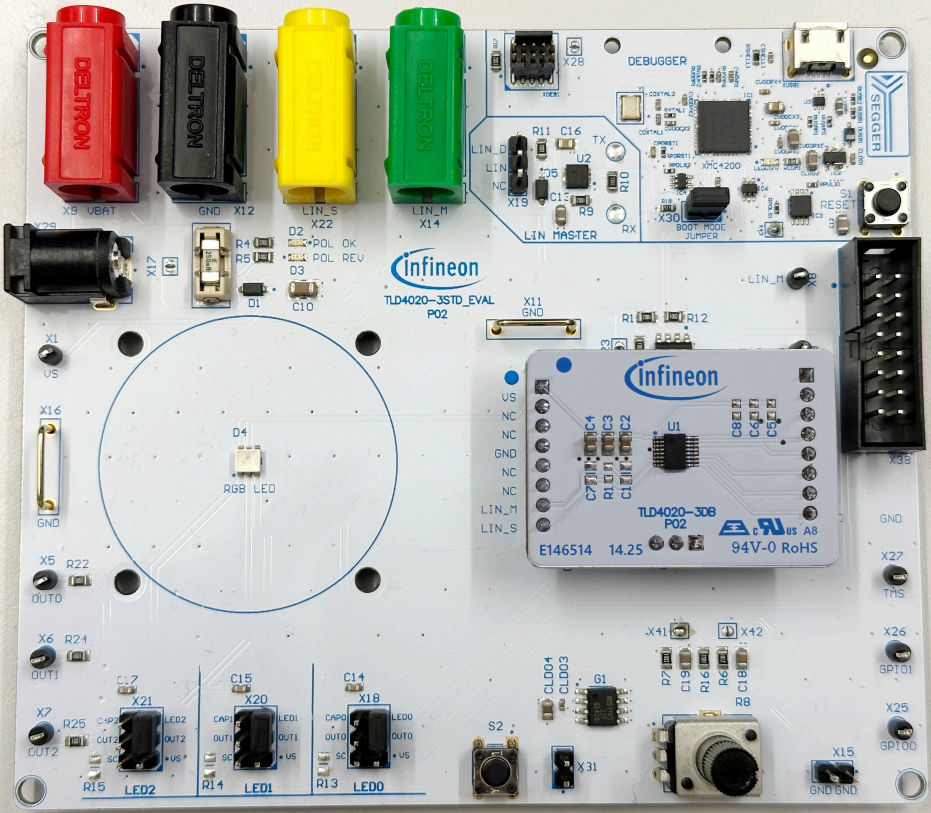

The TLD4020-3STD_KIT evaluation platform is designed to facilitate the development and testing of the LITIX™ TLD4020-3ET device, which features three integrated, independent and protected low-side current sinks and an embedded 32-bit Arm® Cortex®-M23 core, particularly suited for controlling RGB LEDs. The kit consists of two boards: main board TLD4020-3STD_EVAL and daughter board TLD4020-3DB.

Features

  • Set of companion evaluation boards
  • 32-bit Arm® Cortex®-M23 core
  • Three integrated low-side current sinks
  • Reverse polarity protected input
  • Overcurrent protected input
  • Built-in XMC™ Link debugger
  • GPIO interfaces
  • On-board LIN bootstrap loader connector
  • Test points for main signals probing

Benefits

  • Static interior light faster development
  • Software code examples
  • Easy software debug through SWD
  • Well-known industry IDEs (Keil, IAR)

Applications
