REF_WATERPUMP100W

Auxiliary water pump reference design with MOTIX™ 32-bit motor control SoC
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_WATERPUMP100W
REF_WATERPUMP100W
ea.

Product details

  • Board Type
    Reference Board
  • Family
    SSO8 with OptiMOS™ 6, MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Pout max
    140 W
  • Qualification
    Automotive
  • Supply Voltage
    7 V to 18 V
  • Target Application
    Auxiliary water pump , oil pump, 100 W BLDC motor for 12V application
  • Topology
    3-phase full-bridge
Recommended
OPN
REFWATERPUMP100WTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The reference design is developed for 3-phase automotive auxiliary water pumps. It features: TLE9879QXW40: Single chip 3-phase motor driver IAUC60N04S6N031H: 40 V MOSFET in 5x6 SSO8 package, using OptiMOS™-6 technolgy IPZ40N04S5-3R1: OptiMOS™ 5 40 V in S3O8 Package The reference design is optimized in terms of EMC and thermal behaviour. It includes extensive support material including layout and schematic files, EMC tests and thermal analysis.

Features

  • Reference for EMC and thermal behavior
  • Optimized BOM and PCB size
  • Power capability up to 140 W
  • SWD port and LIN port
  • High-temperature PCB, 4-layer copper
  • Small 55x55 mm PCB size
  • Extensive documentation including:
    • Layout files and design guide
    • Schematics and getting started guide
    • Hardware design guideline
    • EMC report and thermal analysis
    • Example software

Benefits

  • Reduced time to market
  • Minimal BOM and reduced PCB size
  • State of the art components
  • Scalability of the device

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

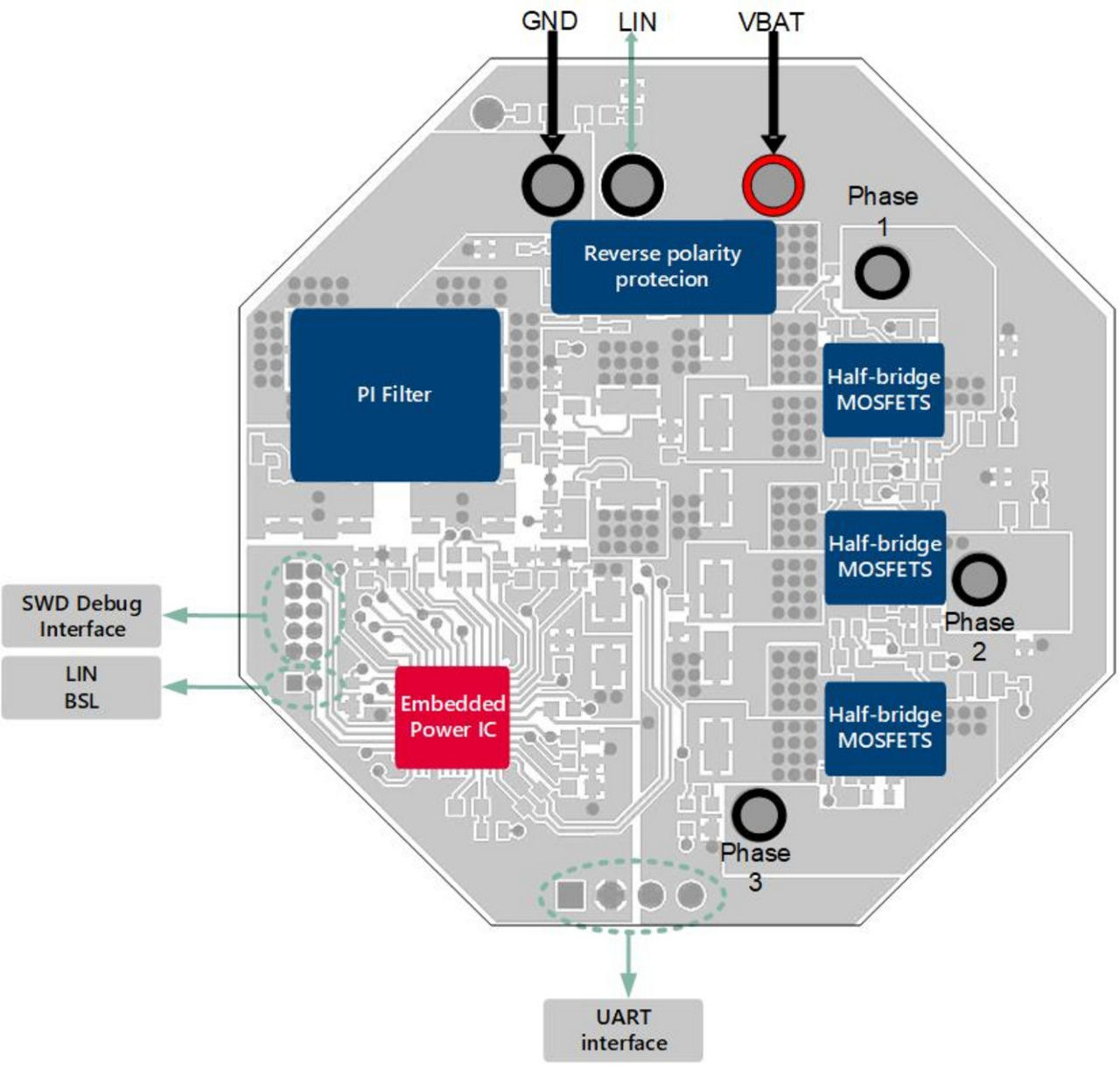

water pump reference design
water pump reference design
water pump reference design water pump reference design water pump reference design
water-pump-reference-design-block-diagram water-pump-reference-design-block-diagram water-pump-reference-design-block-diagram
×
