REF-CAV250KMT7INV

EconoDUAL™ Power Kit - 250 kW eCAV Traction Inverter Power Block
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-CAV250KMT7INV
REF-CAV250KMT7INV
ea.
User Manual

Product details

  • Board Type
    Reference Board
  • Dimensions
    340 x 250 x 110 mm
  • Family
    EconoDUAL™ 3 Power Module, 1200 V TRENCHSTOP™ IGBT 7, XENSIV™ current sensors, EiceDRIVER™ Gate Driver
  • Input Type
    DC
  • Operating Voltage
    600 V to 850 V
  • Output Current max
    470 A
  • Output Voltage max
    600 V
  • Pout
    250000 W
  • Product Name
    REF-CAV250KMT7INV
  • Qualification
    Industrial
  • Target Application
    CAV
  • Topology
    3-Phase - 2 Level
Recommended
OPN
REFCAV250KMT7INVTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

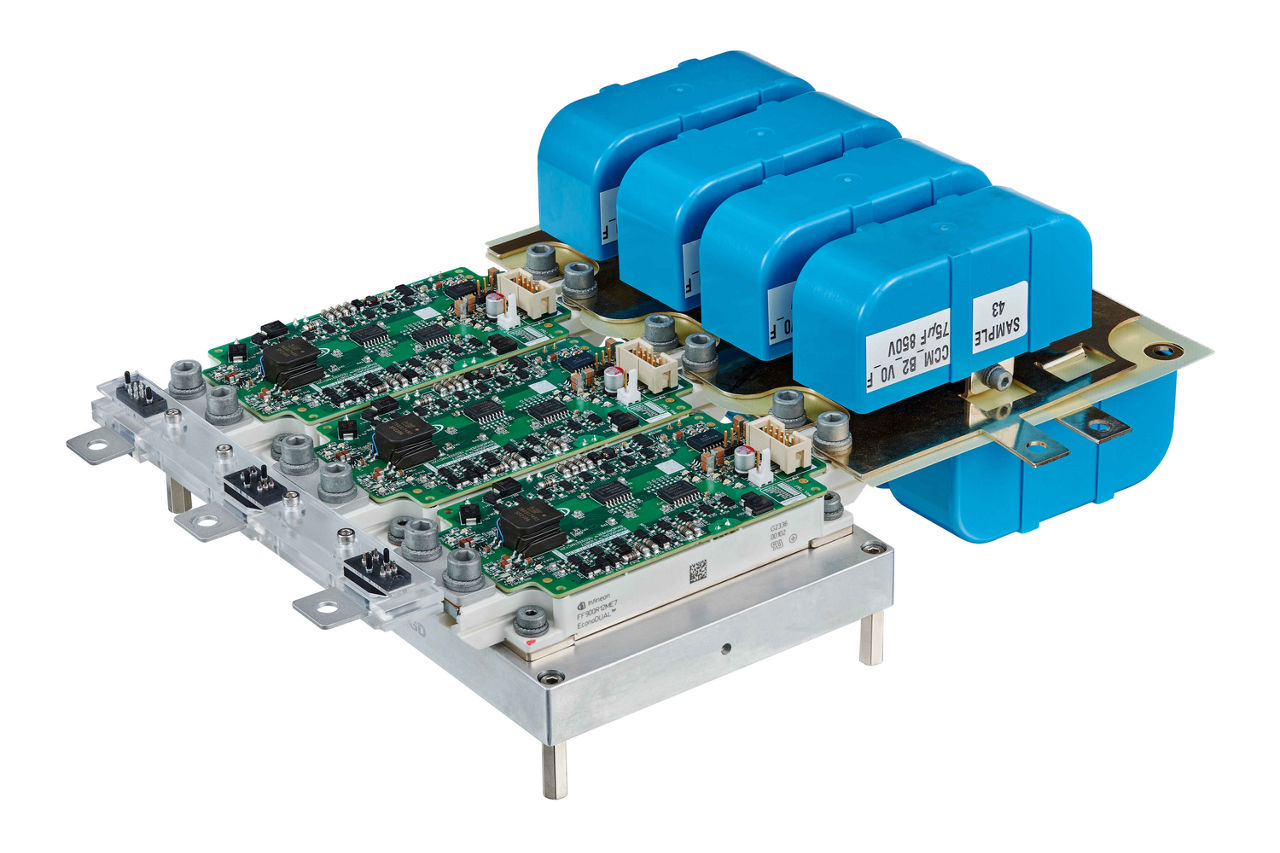

This design represents a 250 kW three-phase inverter power block for 800 V eCAV traction systems. It includes three FF900R12ME7 EconoDual™ 3 IGBT7 power modules, three standalone gate driver boards mounted on the power modules with 1ED3321MC12N EiceDRIVER™ gate driver and booster stage, TLE4973 Hall current sensors placed on the inverter output busbars, a liquid cooling unit specifically designed for the modules and selected DC link capacitors.

Features

  • 250 kW power for eCAV traction inverter
  • EconoDUAL™ 1200 V/900 A IGBT7 power module
  • Isolated gate driver with DESAT
  • Gate driver board with booster stage
  • Isolated phase current measurement
  • Isolated NTC module temperature sensing

Benefits

  • Fast time to market via system solution
  • Advanced thermal management concept
  • Specially designed liquid cooling unit
  • Testing in real application environment
  • Easy evaluation of EconoDUAL™ 3 module
  • Easy upgrade path to 1700 V class
