Active and preferred
RoHS Compliant

EVAL-M1-IM523

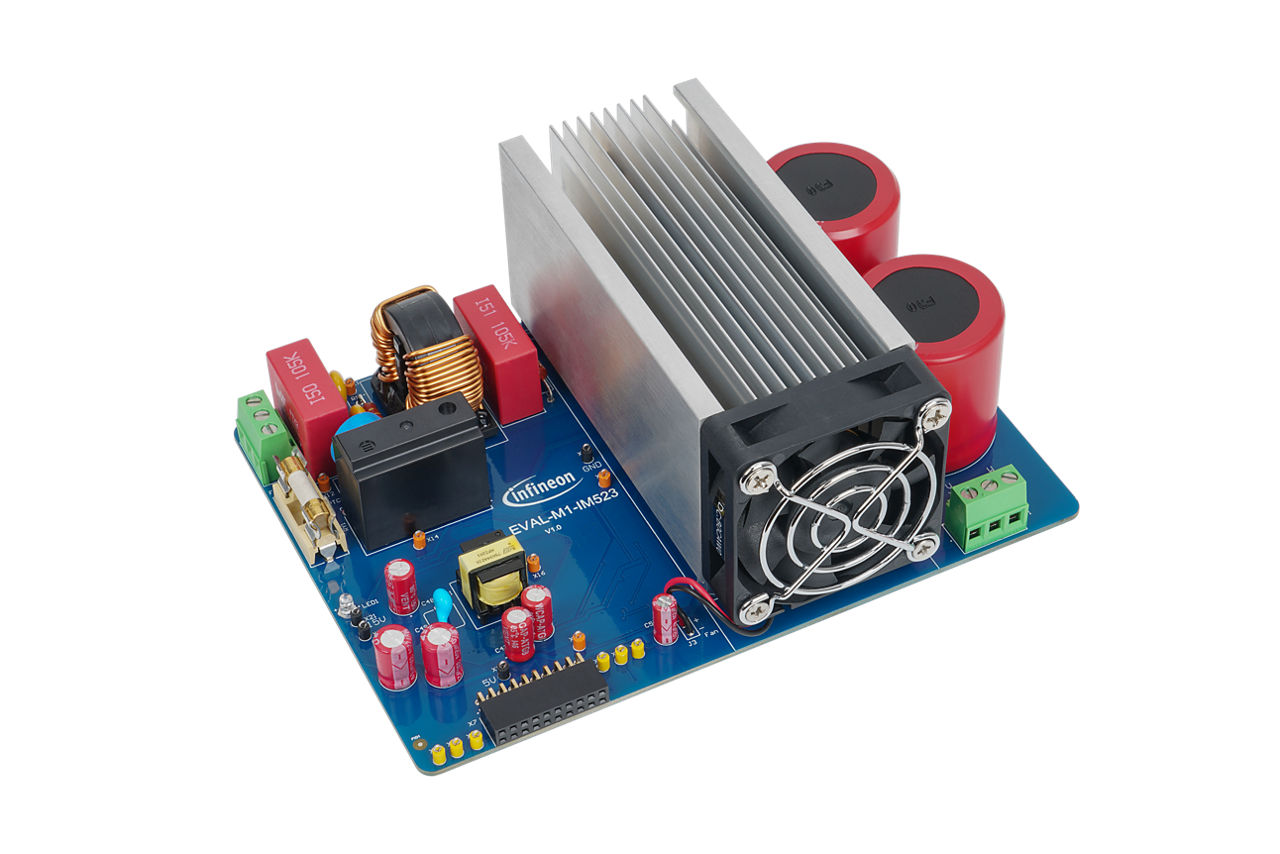

Evaluation board EVAL-M1-IM523 powered by CIPOS™ Mini IM523-X6A
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M1-IM523
EVAL-M1-IM523
ea.
User Manual

Product details

  • Applications
    Motor Control & Drives, Home appliance
  • Board Type
    Evaluation Board
  • Dimensions
    160x115
  • Family
    Intelligent Power Modules (IPM), iMOTION™ Motor Control ICs, Microcontroller, Motor Driver
  • Input Type
    AC
  • Interfaces
    MADK-M1 20-pin interface connector
  • Motor Power max
    900 W
  • Pout max
    900 W
  • Product Name
    EVAL-M3-IM523
  • Qualification
    Industrial
  • Sub Application
    Drum drives, Compressors, HVAC ventilation
  • Supply Voltage max
    265 V
  • Target Application
    Motor Control & Drives, Consumer, Industrial, Commercial, Home Appliances
  • Topology
    3-Phase Inverter
Recommended
OPN
EVALM1IM523TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This evaluation board is a complete power stage, powered by the CIPOS™ Mini 600 V, 17 A IM523-X6A equipped with MADK™ M1 20-pin interface connector to be used with the matching iMOTION™ MADK control boards. It is recommended to use it in systems with a mains voltage of 100 - 230 V AC and an inverter board output power of up to 900 W with active cooling.

Features

  • Ready to use power stage with 600 V IPM
  • Output power up to 900 W
  • On-board EMI filter and pass EMI standards EN55032
  • Over current/temperature protection
  • RoHS compliant

Benefits

  • Get your motor running within one hour in combination with iMOTION™ MADK control boards
  • Understand more about motor control in high voltage domain
