Active and preferred

EV INV HP1 SI 07

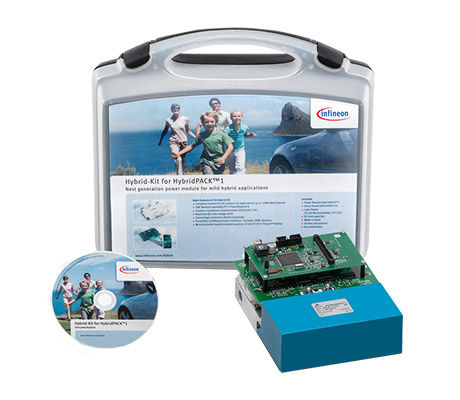

Enhance Automotive and eMobility Applications with Infineon's Evaluation Kit for HybridPACK™ 1 Main Inverter, Gate Driver, and Logic Board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EV INV HP1 SI 07
EV INV HP1 SI 07

Product details

  • Applications
    eMobility, Hybrid, Automotive
  • Board Type
    Reference Board, Evaluation Board
  • Family
    Gate Driver, IGBT Modules
  • Input Type
    DC
  • Interfaces
    CAN
  • Product Name
    Evaluation Kit for HybridPACK™ 1
  • Qualification
    Automotive
  • Sub Application
    Automotive, IGBT Modules
  • Target Application
    Automotive, Electromobility, Motor Control & Drives, Motorcycles, E-Bikes & Small E-Vehicles
  • Topology
    B6 Bridge
Recommended
OPN
EVINVHP1SI07TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • Main inverter for (H)EVs up to 20 kW
  • Automotive IGBT module HybridPACK™1
  • 650 V/400 A IGBT & Diode chip set
  • Automotive Driver IC 1ED020I12-FA
  • Coreless transformer technology
  • Up to 1200V and 2A capability
  • Vce sat - detection
  • TriCore™ 32-bit microcontroller TC1767
  • Various motor position interfaces
