TLS850F3TUV50

The OPTIREG™ linear TLS850F3TUV50 is a high performance, low drop out, fixed output voltage regulator in a PG-TO252-7 package.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS850F3TUV50
TLS850F3TUV50
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    TLS850Fxxx, TLS8xxF3
  • Dropout Voltage
    300 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear High Performance
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3 V to 45 V
  • Output Current max
    500 mA
  • Output Voltage Type
    5.0V
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    26 µA
  • Regulator Type
    High Performance
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    yes
Recommended
OPN
TLS850F3TUV50ATMA1
Product Status active and preferred
Infineon Package
PG-TO252-7
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-7
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

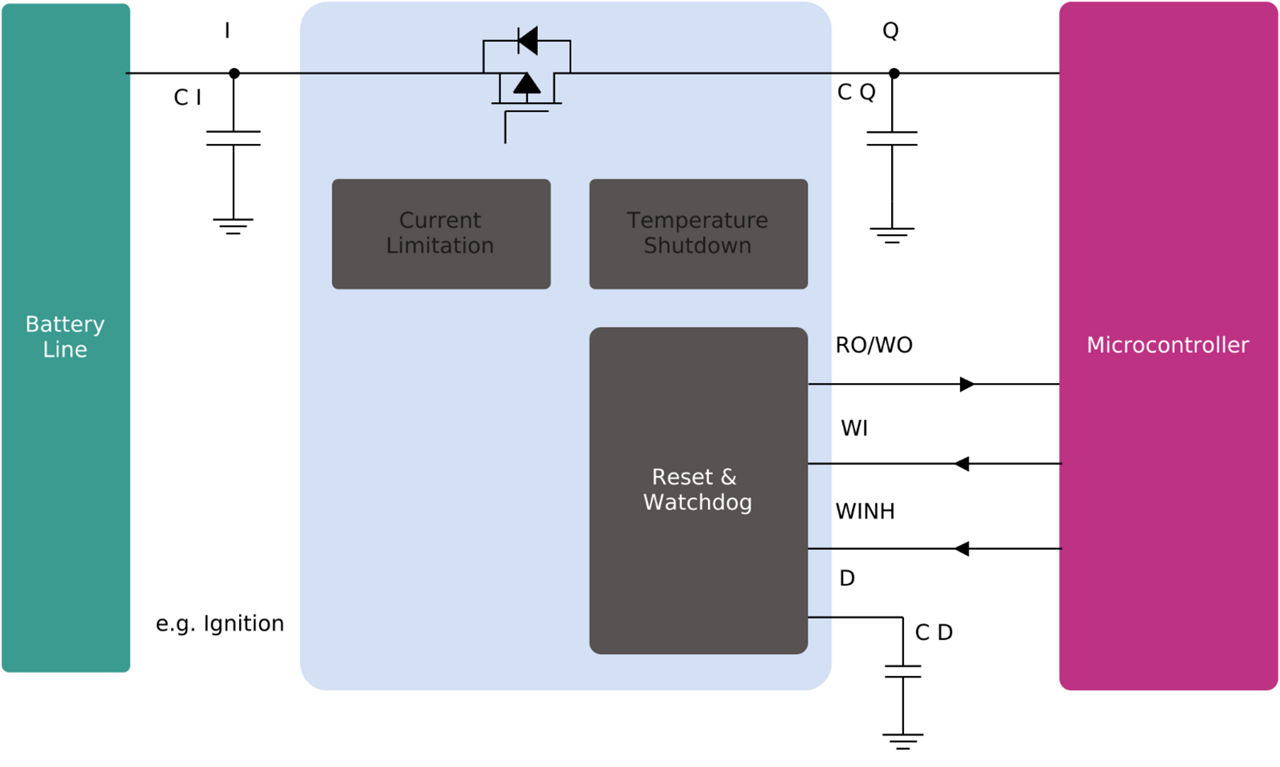

The TLS850F3TUV50 regulator is ideal for automotive and battery-connected supply systems, with an input voltage range of 3-42 V and a low 26 µA quiescent current. It provides ±2% output voltage accuracy, 500 mA maximum output current, and features such as reset function, integrated watchdog circuit, and internal protection against failures like overcurrent and overtemperature, ensuring reliable and safe operation.

Features

  • O/P 5 V ±2% % current capability 500 mA
  • Input voltage range from 3 V to 42 V
  • Stable with 1 µF ceramic O/P capacitor
  • current consumption: typically 26 µA
  • Very low V: typically 100 mV at 100 mA
  • Watchdog inhibit
  • Separate outputs for reset and watchdog
  • O/P current limitation&Overtemp shutdown

Benefits

  • Lower i/p caps reduced filtering costs.
  • PCB space and cost savings
  • Power saving for battery
