ISC022N10NM6

OptiMOS™ 6 power MOSFET 100 V Normal Level in SuperSO8 package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISC022N10NM6
ISC022N10NM6
ea.
Data Sheet

Product details

  • Battery voltage
    48-72 V
  • Budgetary Price €/1k
    1.74
  • ID max
    230 A
  • ID (@25°C) max
    230 A
  • IDpuls max
    920 A
  • Mounting
    SMT
  • Operating Temperature
    -55 °C to 175 °C

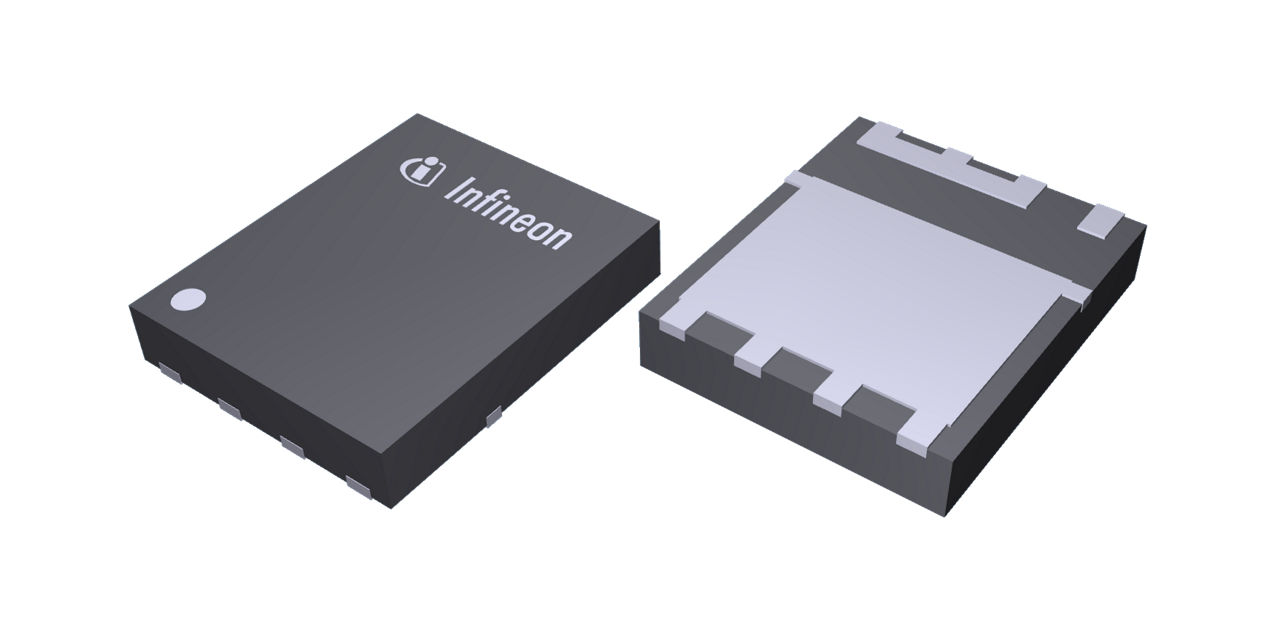

  • Package
    SuperSO8 5x6
  • Pin Count
    8 Pins
  • Polarity
    N
  • Ptot max
    254 W
  • QG
    73 nC
  • QG (typ @10V)
    73 nC
  • RDS (on) (@10V) max
    2.24 mΩ
  • RDS (on) max
    2.24 mΩ
  • Special Features
    Fused leads
  • VDS max
    100 V
  • VGS(th)
    2.8 V
Recommended
OPN
ISC022N10NM6ATMA1
Product Status active and preferred
Infineon Package
PG-TSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
ISC022N10NM6 OptiMOS™ 6 100 V in normal level is setting new technology standards in power MOSFETs. Compared to alternative products, Infineon’s leading thin wafer technology is enabling significant performance benefits. OptiMOS™ 6 industrial power MOSFET 100 V is designed for high switching frequency application such as telecom and server power supply, but also the ideal choice for other applications such as solar, power tools and drones.

Features

  • Achieves:~20% lower RDS(on)
  • 30% improved FOMg
  • Low & soft reverse recovery charge
  • Ideal for high switching frequency
  • MSL 1 classified according to J-STD-020
  • 175 °C junction temperature rating
  • High avalanche energy rating
  • Pb-free lead plating
  • RoHS compliant

Benefits

  • Low conduction losses
  • Low switching losses
  • Fast turn on and off
  • Less paralleling required
  • Robust reliable performance
  • Environmentally friendly
  • Less paralleling required
