IMCQ120R053M2H

CoolSiC™ MOSFET discrete 1200 V G2 in top-side cooled Q-DPAK package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IMCQ120R053M2H
IMCQ120R053M2H
ea.
Data Sheet

Product details

  • Ciss
    1270 pF
  • Coss
    41 pF
  • ID (@25°C) max
    43 A
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PG-HDSOP-22
  • Pin Count
    22 Pins
  • Polarity
    N
  • Ptot (@ TA=25°C) max
    234 W
  • Qgd
    6.7 nC
  • QG
    32.8 nC
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    52.6 mΩ
  • RthJA max
    67 K/W
  • RthJC max
    0.64 K/W
  • Technology
    CoolSiC™ G2
  • Tj max
    200 °C
  • VDS max
    1200 V
Recommended
OPN
IMCQ120R053M2HXTMA1
Product Status active and preferred
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

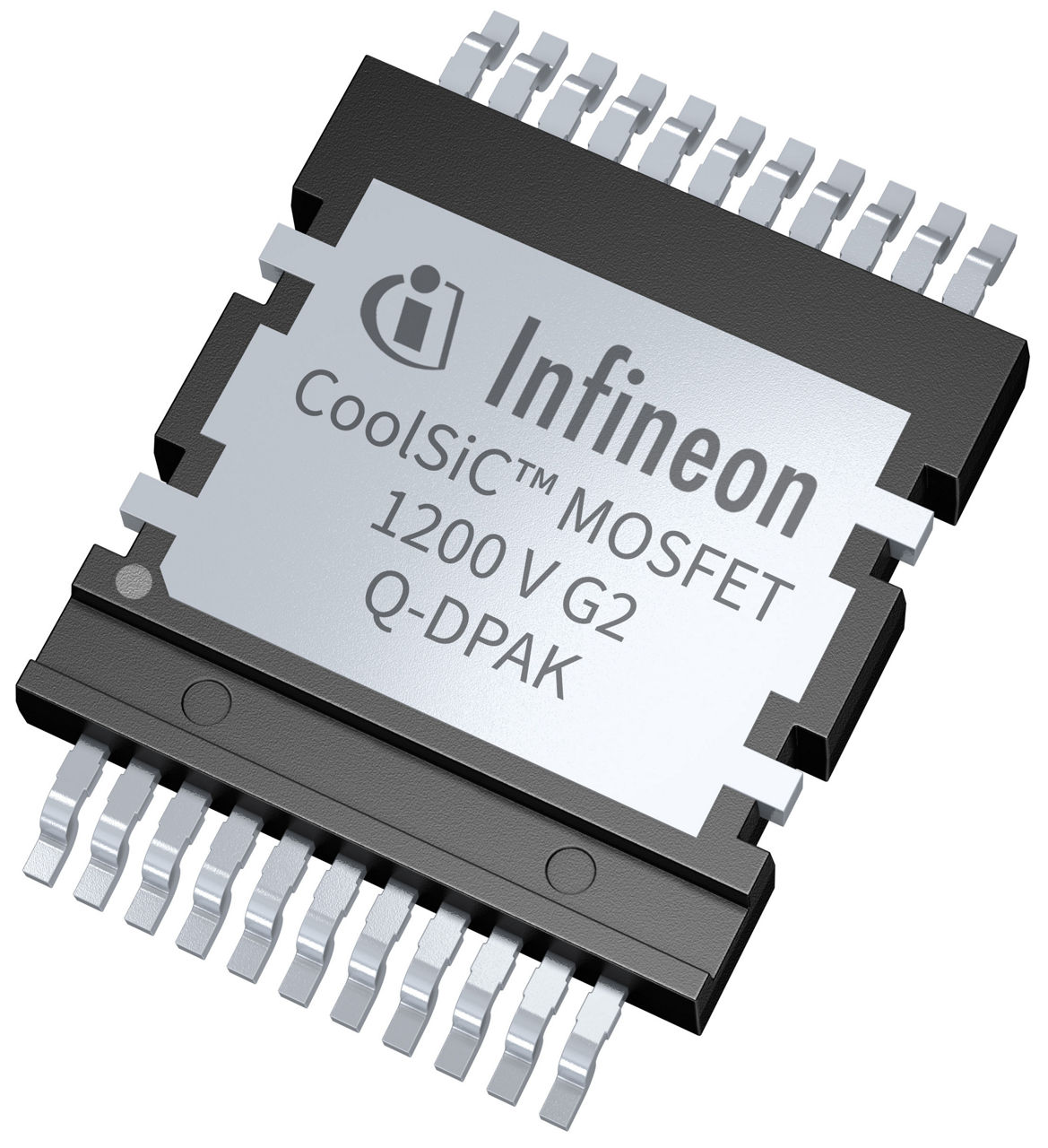

CoolSiC™ MOSFET discrete 1200 V, 53 mΩ G2 in a top-side cooled Q-DPAK package specifically designed for wide use in industrial application. The Q-DPAK package solution provides customers with an outstanding thermal performance, easier assembly and reduced system cost. The top-side cooled Q-DPAK single switch is introducing a new era in cooling, energy efficiency, design flexibility and performance.

Features

  • VDSS = 1200 V @Tvj = 25°C
  • IDDC = 31 A @TC = 100°C
  • RDS(on) = 52.6 mΩ @VGS = 18 V, Tvj = 25°C
  • Very low switching losses
  • Overload operation up to Tvj = 200°C
  • Short circuit withstand time 2 µs
  • Benchmark gate threshold voltage
  • Robust against parasitic turn on
  • Robust body diode for hard commutation
  • .XT interconnection technology

Benefits

  • Outstanding thermal performance
  • Increases energy efficiency
  • Higher power density
  • More compact and easier designs
  • Lower TCO cost or BOM cost
