BTS50080-1TMB

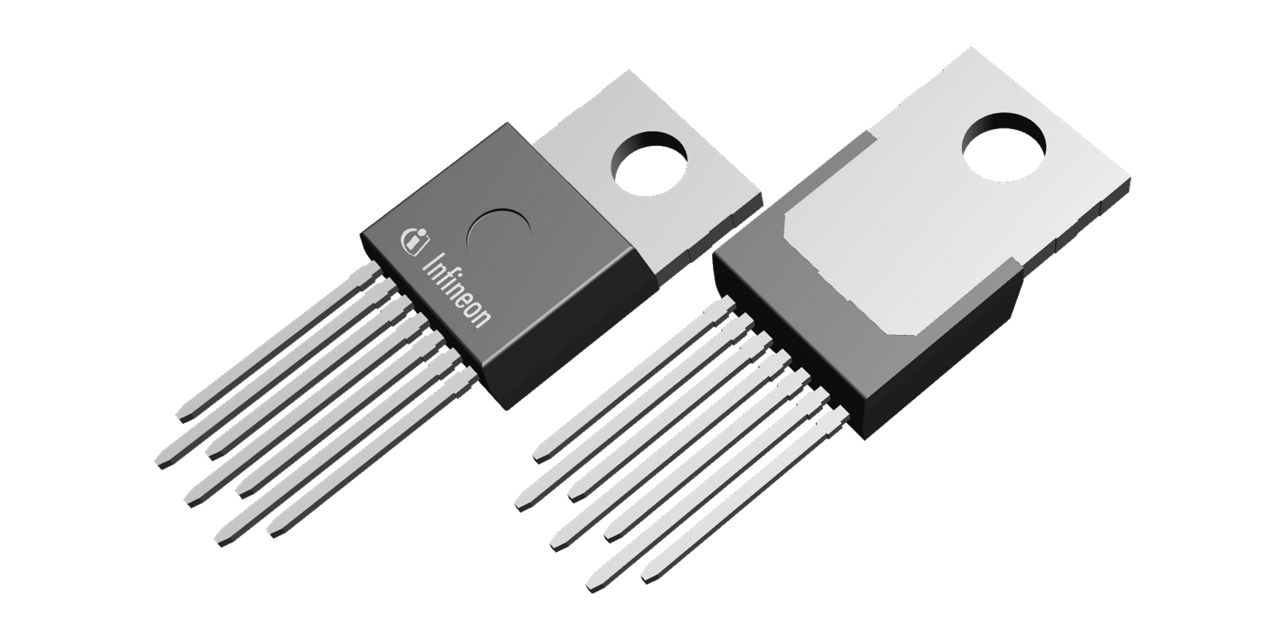

The BTS50080-1TMB is a one channel high-side power switch in PG-TO220-7-4 package providing embedded protective functions
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS50080-1TMB
BTS50080-1TMB
ea.
Data Sheet

Product details

  • Channels
    1
  • Current Limit min
    90 A
  • Diagnostics
    Sense
  • Family
    Classic PROFET™ 12V
  • IL (Short Circuit Current)
    90 A
  • Load Current
    12 A
  • Mounting
    THT
  • Nominal Load Current per channel (All channels active)
    12 A
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    2033
  • Ptot max
    81 W
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    7 mΩ
  • RDS (on) (@ Tj = 150°C) max
    16 mΩ
  • Recommended Operating Voltage
    5.5 V to 38 V
  • toff (Turn OFF time) max
    600 µs
  • ton (Turn ON time) max
    550 µs
Recommended
OPN
BTS500801TMBAKSA1
Product Status active and preferred
Infineon Package
PG-TO220-7
Package Name N/A
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO220-7
Package Name -
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The power transistor is built by a N-channel vertical power MOSFET with charge pump. The design is based on Smart SIPMOS chip on chip technology. The BTS50080-1TMA has a current controlled input and offers a diagnostic feedback with load current sense and a defined fault signal in case of overload operation, overtemperature shutdown and/or short circuit shutdown.

Features

  • Part of scalable product family
  • Load current sense
  • ReverSave®
  • Very low standby current
  • Current controlled input pin
  • Improved electromagnetic compatibility
  • Stable behavior at under-voltage
  • Green Product (RoHS compliant)
  • AEC qualified

Benefits

  • High load current capability
  • High inrush current capability
  • High energy capability
  • Integrated protection functionality
  • Integrated diagnosis functionality
