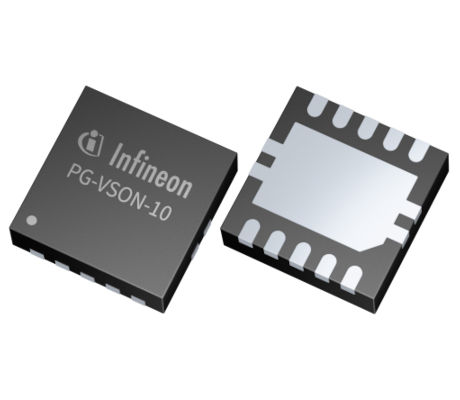

2ED2742S01G

160 V half bridge SOI gate driver with integrated bootstrap diode
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2ED2742S01G
2ED2742S01G
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Input Vcc
    7 V to 18 V
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
  • Operating Voltage
    5 V to 140 V
  • Output Current (Sink)
    2 A
  • Output Current (Source)
    1 A
  • Qualification
    Industrial
  • Technology
    MOTIX™ Driver
  • Turn Off Propagation Delay
    50 ns
  • Turn On Propagation Delay
    50 ns
  • VBS UVLO (On)
    5 V
  • VBS UVLO (Off)
    4.5 V
  • VCC UVLO (On)
    5 V
  • VCC UVLO (Off)
    4.5 V
  • Voltage Class
    160 V
OPN
2ED2742S01GXTMA1
Product Status not for new design
Infineon Package
PG-VSON-10
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-VSON-10
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
MOTIX™ 160 V half bridge  with typical 1 A source and 2 A sink currents in a small footprint VSON10, 3x3 mm package for N-Channel  . Integrated bootstrap diodes are used to supply the external high side bootstrap capacitor. Protection features include under voltage lockout on both Vcc and VB pins. The 2ED2742 is fully qualified for industrial applications according to the relevant tests of JEDEC78/20/22.

Features

  • Bootstrap voltage (VB) of +160 V
  • Floating designed for bootstrap
  • Integrated bootstrap diodes
  • UVLO for both high and low side
  • Shoot-through protection
  • Short Pulse/ noise input filter
  • Schmitt trigger inputs
  • 3.3 V, 5 V input logic compatible
  • Small footprint 3x3 VSON10
  • 2.5 kV HBM ESD, RoHS complaint

Benefits

  • High Power Density
  • Smaller Footprints
  • High Durability and Reliability
  • Excellent Thermal Management
  • Scalability
  • Simplicity (Easy to Use)

Diagrams

circuit_diagram_2ED274xS01G
circuit_diagram_2ED274xS01G

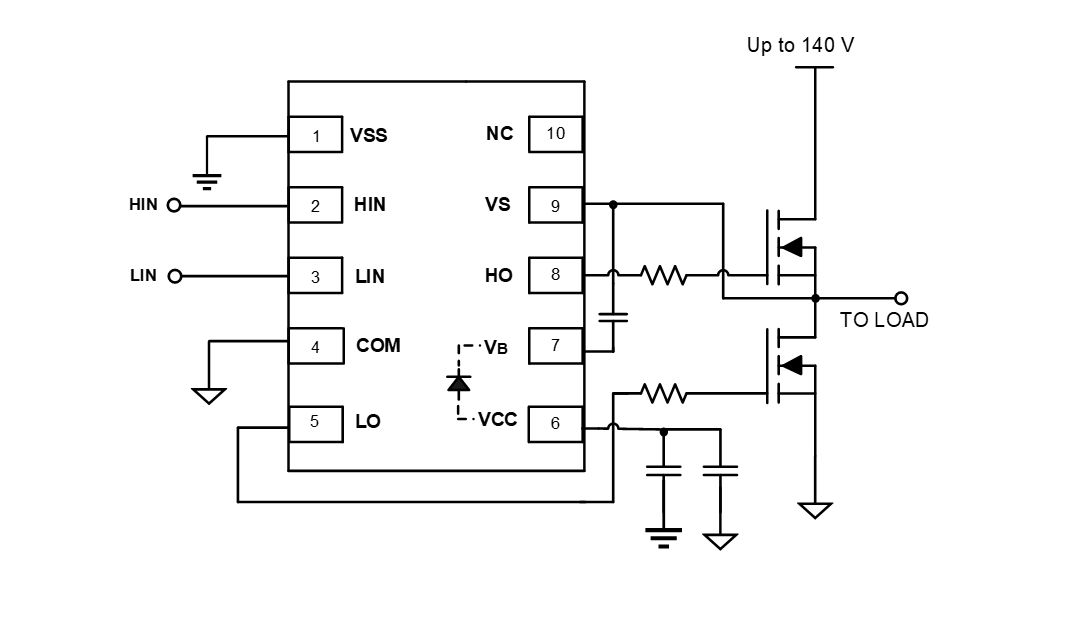

circuit_diagram_2ED274xS01G circuit_diagram_2ED274xS01G circuit_diagram_2ED274xS01G

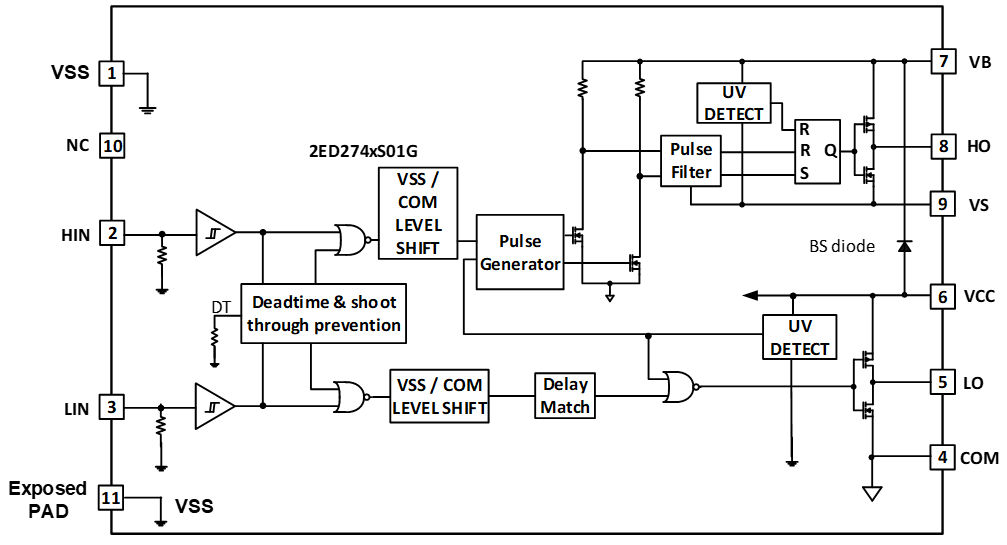

Block_diagram_2ED274xS01G Block_diagram_2ED274xS01G Block_diagram_2ED274xS01G
×
modalImg
