TLE989X EVALB_LQFP

MOTIX™ MCU TLE989X Evaluation Board is designed to provide a fast and easy start for TLE988x/9x family
User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE989X EVALB_LQFP
TLE989X EVALB_LQFP
ea.
User Manual

Product details

  • Dimensions
    165x145
  • Family
    Motor Driver, Microcontroller, MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Product Category
    Evaluation Board
  • Qualification
    Automotive
  • Sub Application
    Oil pump; Fuel pump ; HVAC blower ; Engine cooling fan ; Water pump ; High efficiency pumps and fans ; Sensor-less and sensor-based BLDC motor application
  • Supply Voltage
    6 V to 28 V
  • Target Application
    Automotive, Motor Control & Drives
  • Topology
    B6 Bridge, 3-Phase Motor, 2-Phase Motor
Recommended
OPN
TLE989XEVALBLQFPTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

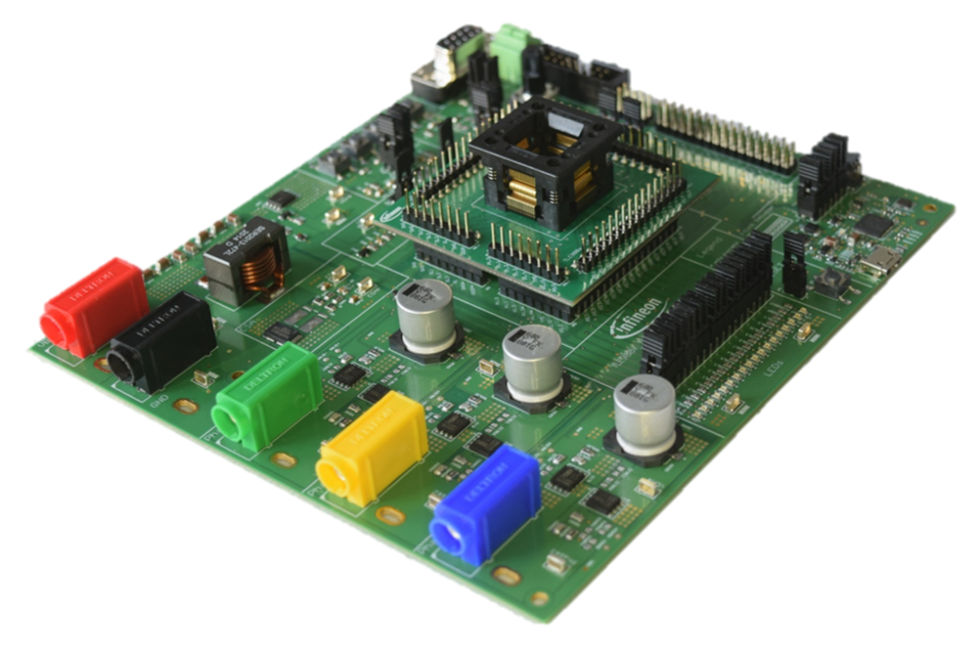

The TLE989x Evaluation Board, featuring an LQFP spring socket, provides a comprehensive platform for evaluating all functions and peripherals of the TLE988x/9x family. The socket for the LQFP64 package allows testing and evaluation of all ICs within the MOTIX™ TLE988x/9x family. The board supports both 3-phase and 2-phase variants. The TLE988x/9x product itself is not included with the evaluation board and must be ordered separately.

Features

  • 3-phase B6-bridge
  • Single shunt in GND path
  • Integrated CAN transceiver
  • Onboard debugger
  • Reverse polarity protection
  • Virtual ComPort via J-Link
  • Debug LEDs
  • CAN-UART bootstrap loader
  • Sensor interfaces (for HALL and TMR)
  • SPI header
  • EMI filter
