TLE987X EVALB_VQFN

TLE987X EVALB_VQFN provides an easy-to-use tool for getting familiar with TLE987x devices
User Manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE987X EVALB_VQFN
TLE987X EVALB_VQFN
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    137mm x 125,25mm
  • Family
    Motor Driver, Microcontroller, MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Pout max
    300 W
  • Qualification
    Automotive
  • Supply Voltage
    5.5 V to 28 V
  • Target Application
    Motor Control & Drives, Automotive
  • Topology
    3-phase full-bridge
Recommended
OPN
TLE987XEVALBVQFNTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

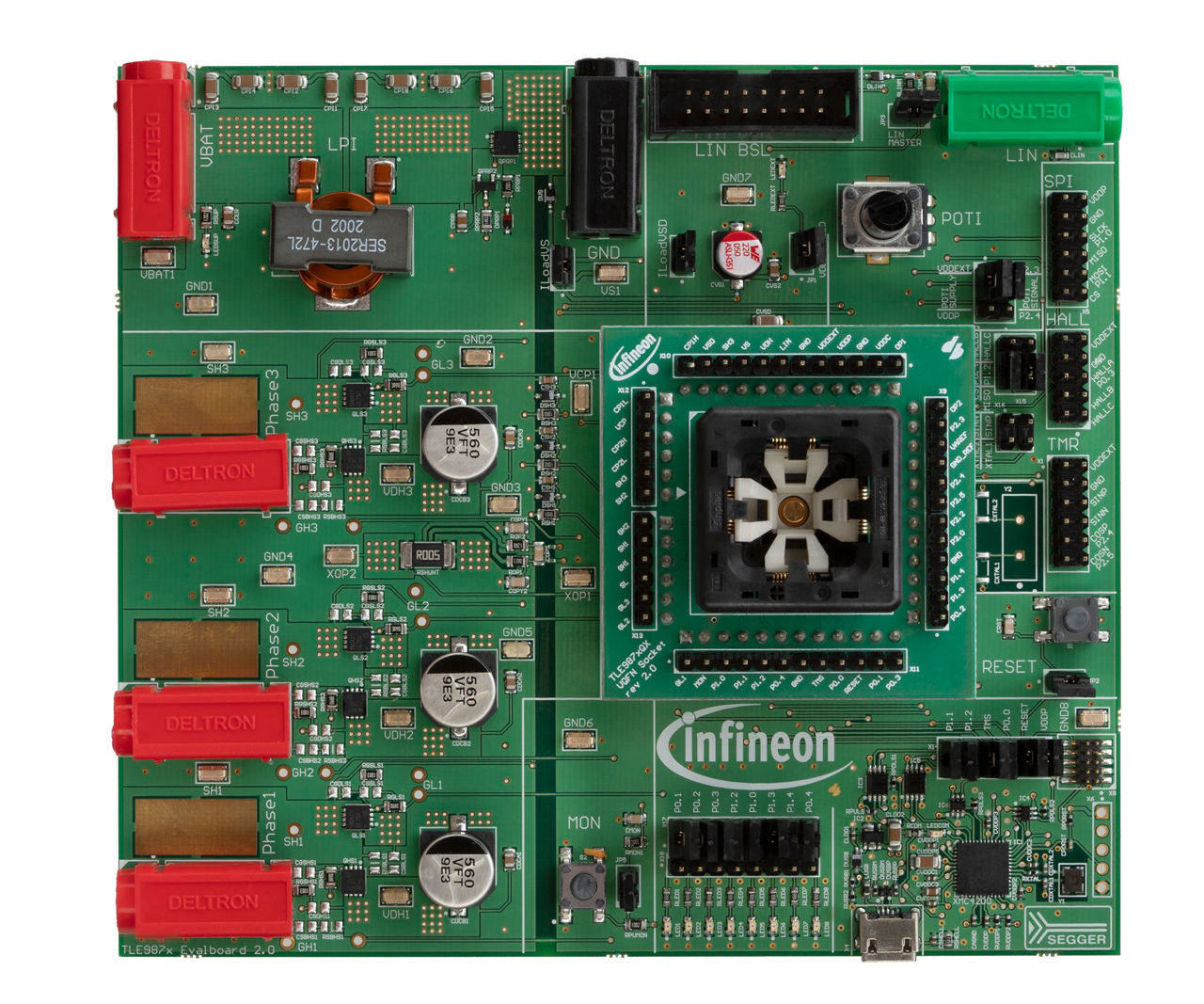

The TLE987X EVALB_VQFN offers complete evaluation of all functions and peripherals of the TLE987x product family and allows direct connection to a BLDC motor via MOSFETs in B6-Bridge configuration. It includes a B6-Bridge for BLDC motor drive, UART and LIN for communication, direct access to all device I/Os and an onboard debugger.

Features

  • 3-phase B6-bridge
    • Integrated LIN transceiver Onboard debugger Reverse polarity protection Debug LEDs LIN bootstrap loader Sensor interfaces (for HALL and TMR) SPI header EMI filter
