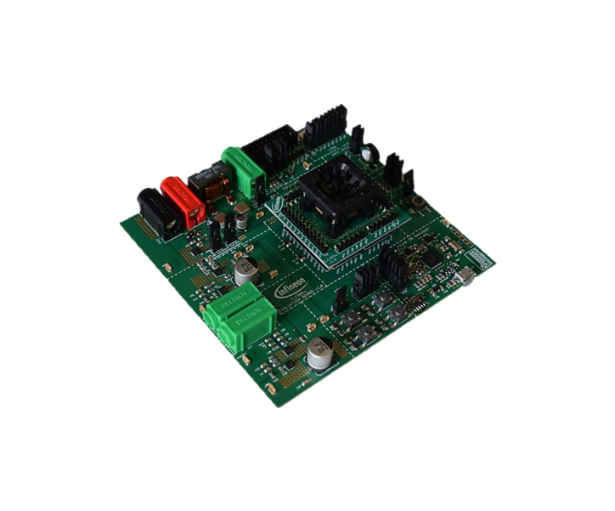

TLE985X EVALBOARD

The TLE985x Evalboard provides a user-friendly platform for evaluating the hardware and software capabilities of the TLE985x famil
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE985X EVALBOARD
TLE985X EVALBOARD
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    119,3mm x 122,4mm
  • Family
    MOTIX™ MCU | 32-bit motor control SoC, Motor Driver, Microcontroller
  • Frequency
    5 MHz to 40 MHz
  • Input Type
    DC
  • Interfaces
    Micro-USB, uIO, SWD, LIN
  • Mounting
    Open Top Clampshall Socket
  • Output Current max
    10 A
  • Output Voltage
    5.5 V to 28 V
  • Qualification
    Automotive
  • Sub Application
    Electrical Fans, Electrical Pumps, Windowlift, Sunroof
  • Supply Voltage max
    28 V
  • Target Application
    Automotive
  • Topology
    Motor Control IC with Gate Driver
Recommended
OPN
TLE985XEVALBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE985x Evaluation Board provides a comprehensive platform for evaluating all functions and peripherals of the TLE985x product family, allowing for thorough assessment and testing of the device's capabilities. The respective TLE985x product must be ordered separately, as it is not included with the evaluation board.
