REF_WATERPUMP150W
Active and preferred

REF_WATERPUMP150W

Turnkey-ready 150W water pump reference design with MOTIX™ MCU TLE995x, OptiMOS™ 7 40 V MOSFETs in SSO8 HB, example software, and evaluation tools.
software
Video
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_WATERPUMP150W
REF_WATERPUMP150W
ea.


Product details

  • Family
    MOTIX™ MCU, OptiMOS™ 7
  • Input Type
    DC
  • Pout max
    150 W
  • Qualification
    Automotive
  • Sub Application
    3-phase motor drive
  • Supply Voltage range
    9 V to 24 V
  • Target Application
    150W 12V sensorless BLDC applications like water pumps, coolant pumps
  • Topology
    3-phase full-bridge

Recommended
OPN
REFWATERPUMP150WTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Country of Assembly (CoA)
SI
Country of Diffusion (CoD)
SI
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
SI
Country of Diffusion (CoD)
SI
ea.
in stock
Infineon’s water pump reference design is a turnkey-ready motor control solution with proven hardware and pre-tested block commutation and Field-Oriented Control (FOC) software, moreover intuitive evaluation tools for rapid development. For applications requiring customized or advanced functionalities, Infineon partners with MOTEON offering tailored application software and expertise to meet your requirements and speed time-to-market.

Features

  • Reference for EMC
  • Reference for thermal performance
  • Optimized BOM and PCB size
  • SWD port for debug connection
  • LIN port
  • Small PCB size
  • Extensive documentation

Benefits

  • Reduced time to market
  • Minimal BOM
  • Reduced PCB size
  • Scalability

Applications

Bill of Material

Documents

Design resources

Videos

Discover Virtual Winding Temperature Sensing
Discover how Virtual Winding Temperature Sensing can accurately estimate motor winding temperature in real time using edge computing on the REF_WATERPUMP150W board. In this demo, an engineer visualizes and validates the calculated temperature values, demonstrating how electrical parameters and motor models can be used to monitor thermal behavior without dedicated winding sensors. Watch the video and learn how you can enable enhanced motor protection, improved system reliability, reduced bill-of-
Discover Virtual Winding Temperature Sensing Discover Virtual Winding Temperature Sensing Discover Virtual Winding Temperature Sensing
Getting started with the 150 W Water Pump Reference Design with MOTIX™ TLE995x Getting started with the 150 W Water Pump Reference Design with MOTIX™ TLE995x Getting started with the 150 W Water Pump Reference Design with MOTIX™ TLE995x
×
modalImg

Diagrams

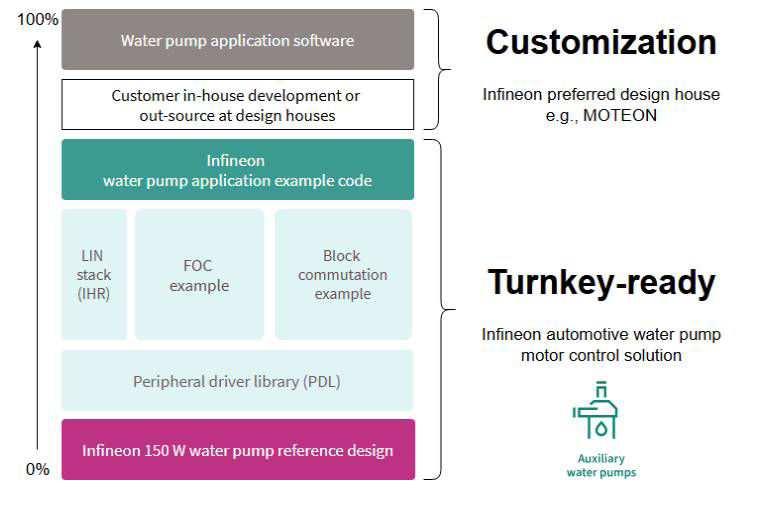

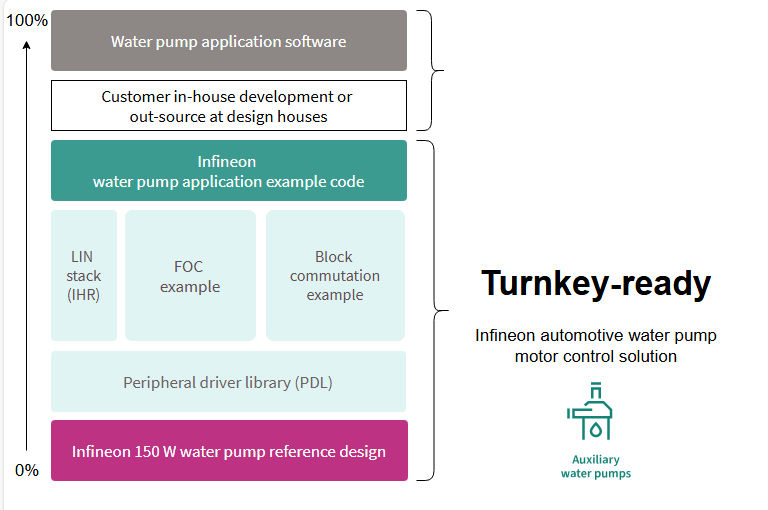

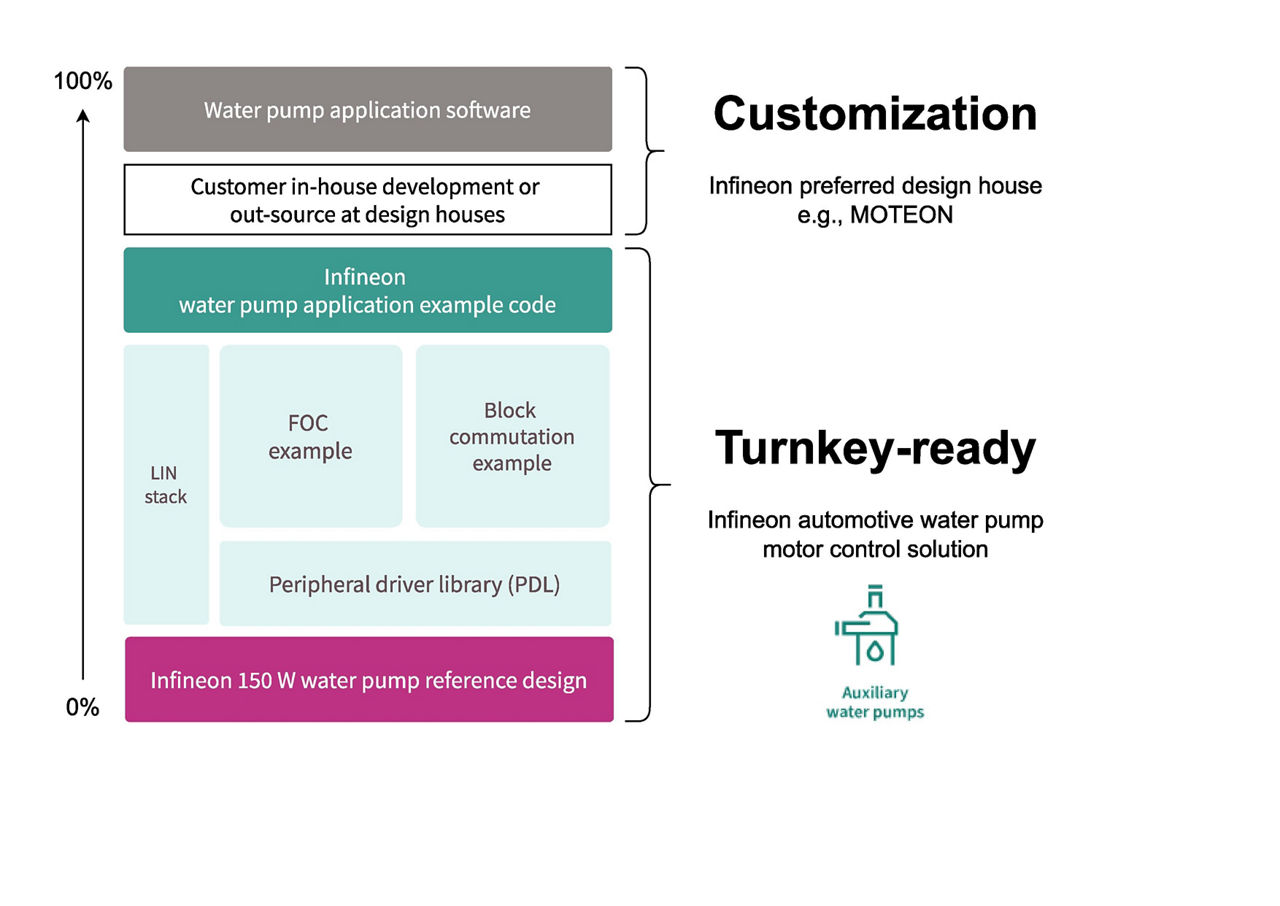

water-pump-turnkey-graph-new
