Active and preferred
RoHS Compliant

CY8CKIT-030A

CY8CKIT-030 PSOC™ 3 Development Kit
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY8CKIT-030A
CY8CKIT-030A
ea.
User Manual

Product details

  • Bluetooth Standard
    N/A
  • Board Type
    Evaluation Kit
  • CAPSENSE™
    Buttons,Slider
  • Connectivity
    USB
  • Core
    8051
  • External memory
    None
  • Family
    PSOC™ 3
  • Features
    Potentiometer,Four LEDs,Two Switches,Prototyping Area, MCU device USB
  • GPIOs/Shield Compatibility
    Extended GPIO header,RS232
  • Hardware Compatibility
    N/A
  • Programmer/Debugger
    Onboard DVKProg
  • Sensors
    Character LCD
  • Software Support
    PSoC Creator
  • WiFi Standard
    N/A
Recommended
OPN
CY8CKIT-030A
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

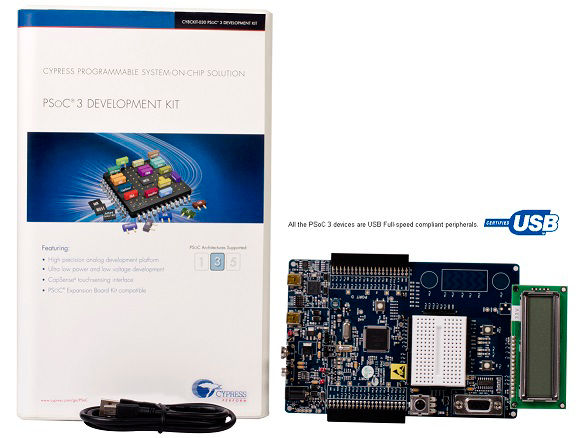

The PSOC™ 3 Development Kit (CY8CKIT-030) is designed for analog performance with low noise floor, separate analog/digital domains, and regulators. It supports the PSOC™ Expansion Board Kit ecosystem, demonstrates low power operation, and includes an onboard programmer/debugger, LCD Character Display, USB Cable, and Quick Start Guide, with essential software and documentation on the kit CD

Features

  • 2 CAPSENSE™ buttons and 5-element slider
  • Separate Analog and CAPSENSE™ ports
  • USB communication
  • RS-232 interface
  • Boost convertor
  • Prototyping area
  • Character LCD interface
  • Potentiometer
  • Two switch buttons
  • LEDs
  • On-board programmer/debugger
  • Programming interface optional

Benefits

  • Very low noise floor
  • Separate regulators
  • Separate ground planes provided
  • ENOB ~ 20 bits
  • External Vref input available.
  • Onboard programmer/debugger

Applications
