TLE9186QVW

MOTIX™ TLE9186QVW is a 3-phase gate driver IC with an integrated current sense amplifier in a tiny 5x5 mm package and ISO 26262 ASIL B compliance.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9186QVW
TLE9186QVW
ea.
Data Sheet

Product details

  • Classification
    ISO 26262-compliant (ASIL B)
  • Configuration
    3-phase
  • Current Sense Amplifier
    1x CSA
  • Driving Capability
    60 nc at 20 kHz
  • Family
    MOTIX™ gate driver ICs for BLDC motors
  • Planned to be available until at least
    2039
  • Qualification
    Automotive
  • Supply Voltage
    4.5 V to 29 V
  • Temperature
    -40 °C to 175 °C
Recommended
OPN
TLE9186QVWXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-32
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-32
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
MOTIX™ TLE9186QVW is a 3-phase gate driver IC with an integrated current sense amplifier. It offers a supply voltage range of 4.5 V to 29 V and can drive 6 MOSFETs up to a total gate charge of 60 nC at a switching frequency of 20 kHz. Target applications include 12 V BLDC motor applications, such as oil pumps, water pumps, fans, HVAC blowers, engine cooling fans, and seat control modules.

Features

  • Drives 6 MOSFETs, Qgtot= 60 nC/MOSFET
  • Supply voltage range of 4.5 V to 29 V
  • Current source-controlled output stage
  • 0..100% duty cycle w/o restrictions
  • Motor control concept with PWM input
  • 1 integrated current sense amplifier
  • Passive clamping of external FETs
  • Diverse monitoring & diagnostics
  • VQFN-32 (5x5 mm) with AOI
  • ISO 26262-compliant (ASIL B)

Benefits

  • Reduced external component count
  • Optimized system cost system
  • Enables compact designs
  • Optimize EME performance
  • Extended temperature range AEC-Q100
  • ASIL B-certified safe motor operation

Applications

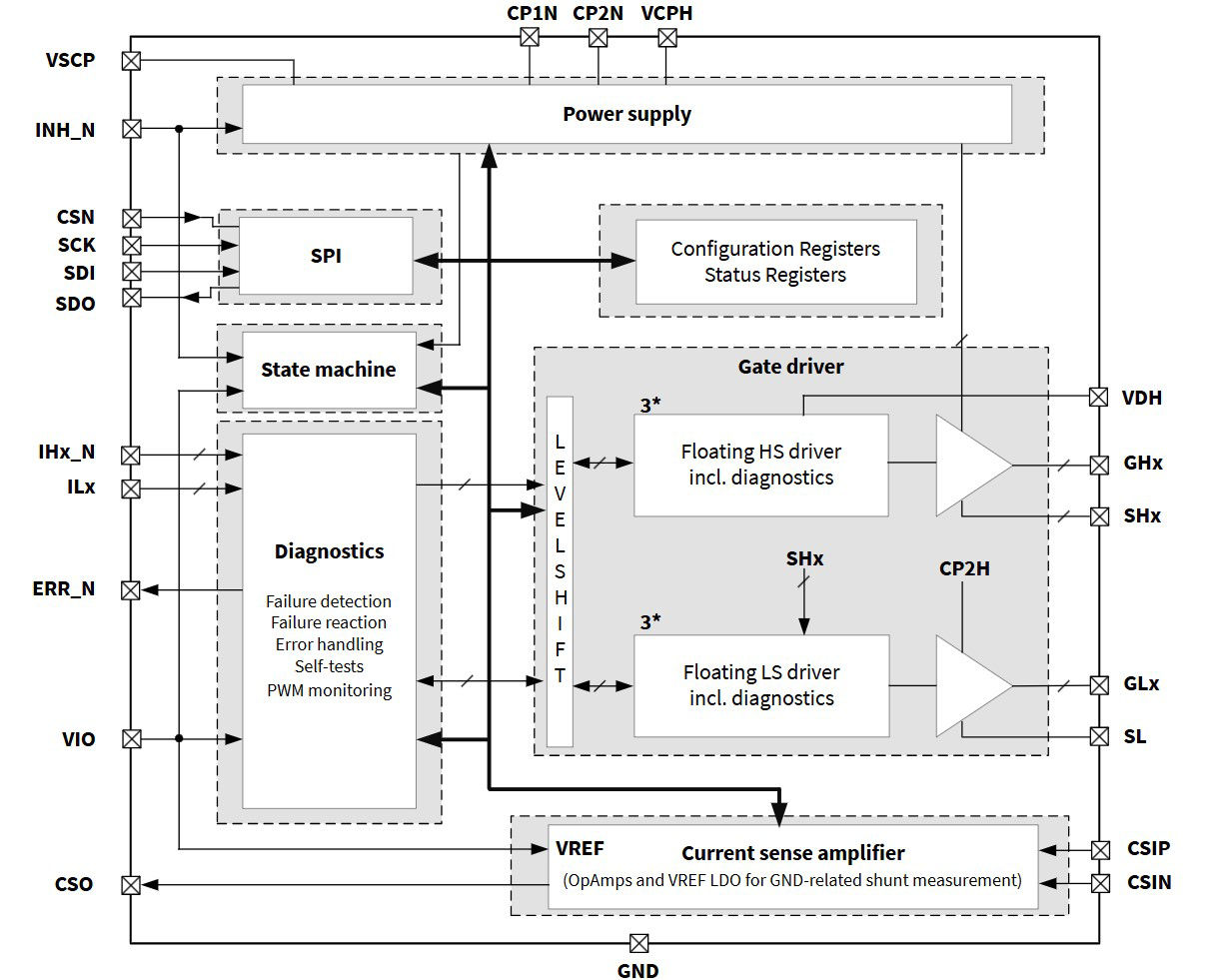

Diagrams

TLE9186_Block_diagram
TLE9186_Block_diagram
TLE9186_Block_diagram TLE9186_Block_diagram TLE9186_Block_diagram
×
