2EDL6014AC-G2D

EiceDRIVER™ 120 V Level shifter gate driver IC that is designed to drive dual high-side, dual low-side or half-bridge configurations of Si MOSFETs
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDL6014AC-G2D
2EDL6014AC-G2D
Data Sheet

Product details

  • Channels
    2
  • Input Vcc range
    2.97 V to 5.5 V
  • Output Voltage range
    0 V to 16 V
  • Qualification
    Industrial
OPN
2EDL6014ACG2DXTMA1
Product Status coming soon
Infineon Package PG-WQFN-11
Package Name Edison (aka Marconi2)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package PG-WQFN-11
Package Name Edison (aka Marconi2)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

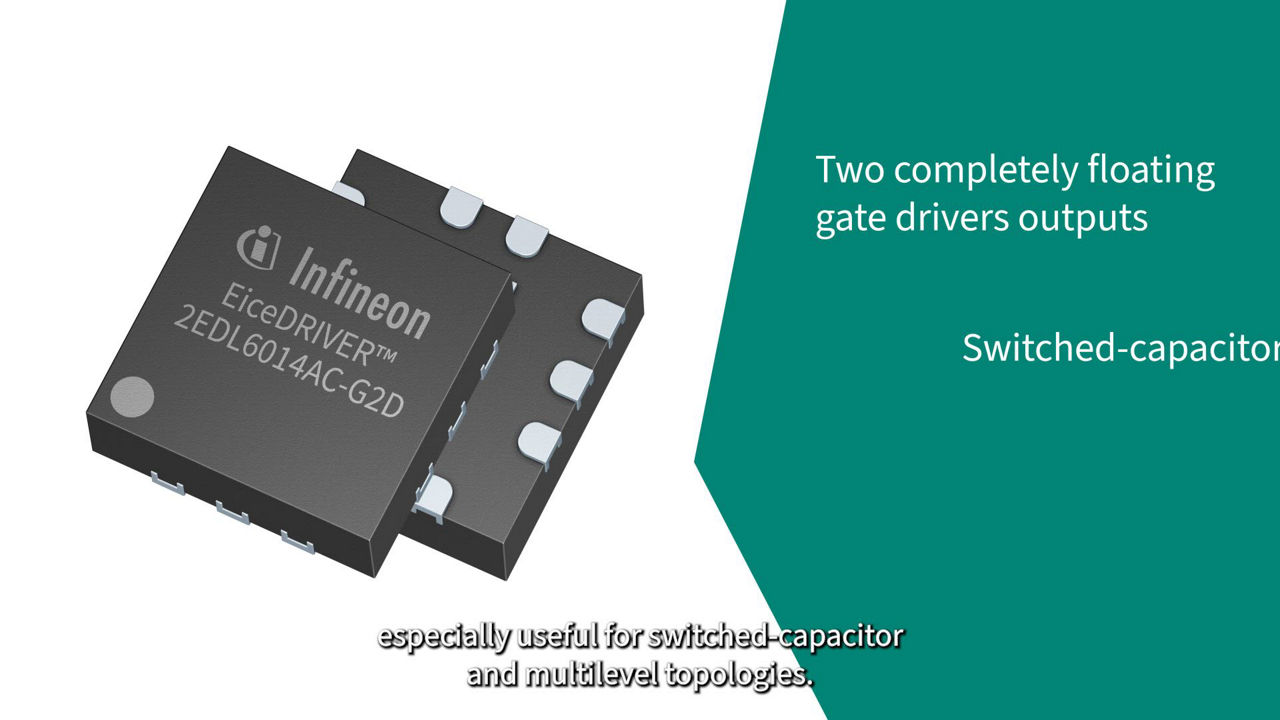

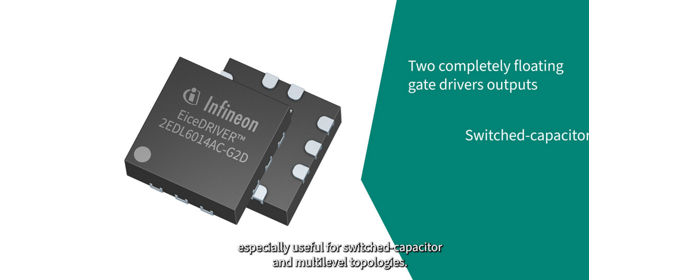

The EiceDRIVER™ 2EDL6014AC is a dual-channel level shifter gate driver IC with dual floating outputs to drive silicon MOSFETS. This strong 4 A/6 A source/sink current dual-channel gate driver has a programmable driving current on OUTA to limit inrush current during system start-up. It is available in QFN-11 (2.2 x 2.2 mm) with an exposed thermal pad for good thermal management.

Features

  • Dual-channel floating output gate driver
  • Strong 4 A source and 6 A sink current
  • Configurable driving current on OUTA
  • Package: QFN-11 2.2x2.2 mm w/ exposed pad
  • Low RthJC_B
  • 4 V to 16 V driving capability

Benefits

  • Support wide range of power topologies
  • Compact and thermally capable solution
  • Suitable for high power applications
  • Flexible for many customer requirements
