CTRX8191F

NEW

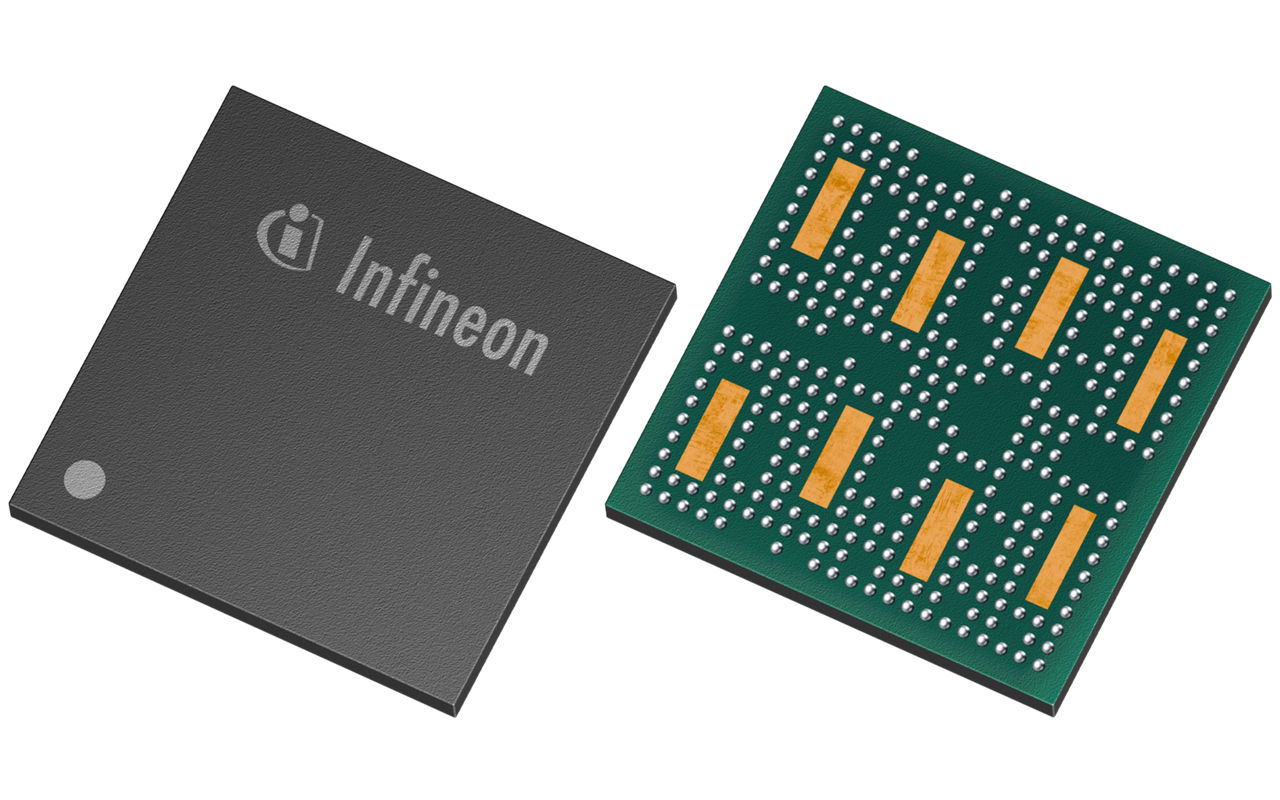

RASIC™ 76-81 GHz radar MMIC with antenna feed in package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CTRX8191F
CTRX8191F
Data Sheet

Product details

  • Antenna
    External
  • Family
    77/79 GHz radar sensors
  • Frequency range
    76 GHz to 81 GHz
  • Number of Rx Antennas
    4
  • Number of Tx Antennas
    4
  • Qualification
    Automotive
  • Temperature Range
    -40 to + 105°C
OPN
CTRX8191FXUMA1
Product Status on request
Infineon Package
PG-TF2BGA-310
Package Name N/A
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package
PG-TF2BGA-310
Package Name -
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon’s RASIC™ CTRX8191F is a state-of-the-art 28 nm 4D imaging radar MMIC for L2+ to L4 automated and autonomous driving. With a superior SNR, it can detect vehicles and vulnerable road users at distance of up to 380 m using 4T4R configurations. Optimized for low system cost, the CTRX8191F supports device cascading, low-cost waveguide antennas, and features a flexible digital PLL for complex waveforms with industry-leading <1 µs flyback time.

Features

  • Digital PLL (phase-locked loop)
  • ISO 26262-compliant up to ASIL B
  • Sequencer with 4096 ramp sets
  • 32 kB memory
  • LVDS and CSI-2 interfaces
  • AEC-Q100, Grade 1 qualified
  • <1 µs flyback time
  • 4 GHz bandwidth
  • 400 MHz/µs ramp slope
  • 50 MHz ADC
  • 14 dB 26 GHz LO link budget
  • Standalone and cascadable

Benefits

  • Operates in 76-81 GHz frequency range
  • Supports flexible radar frequency ramps
  • Cost-efficient for complex radar systems
  • Packaged in automotive-grade TF2BGA
  • Meets automotive RF qualifications
  • Antenna arrays up to 24T24R possible
