KP467Q
Active and preferred
RoHS Compliant
Lead-free

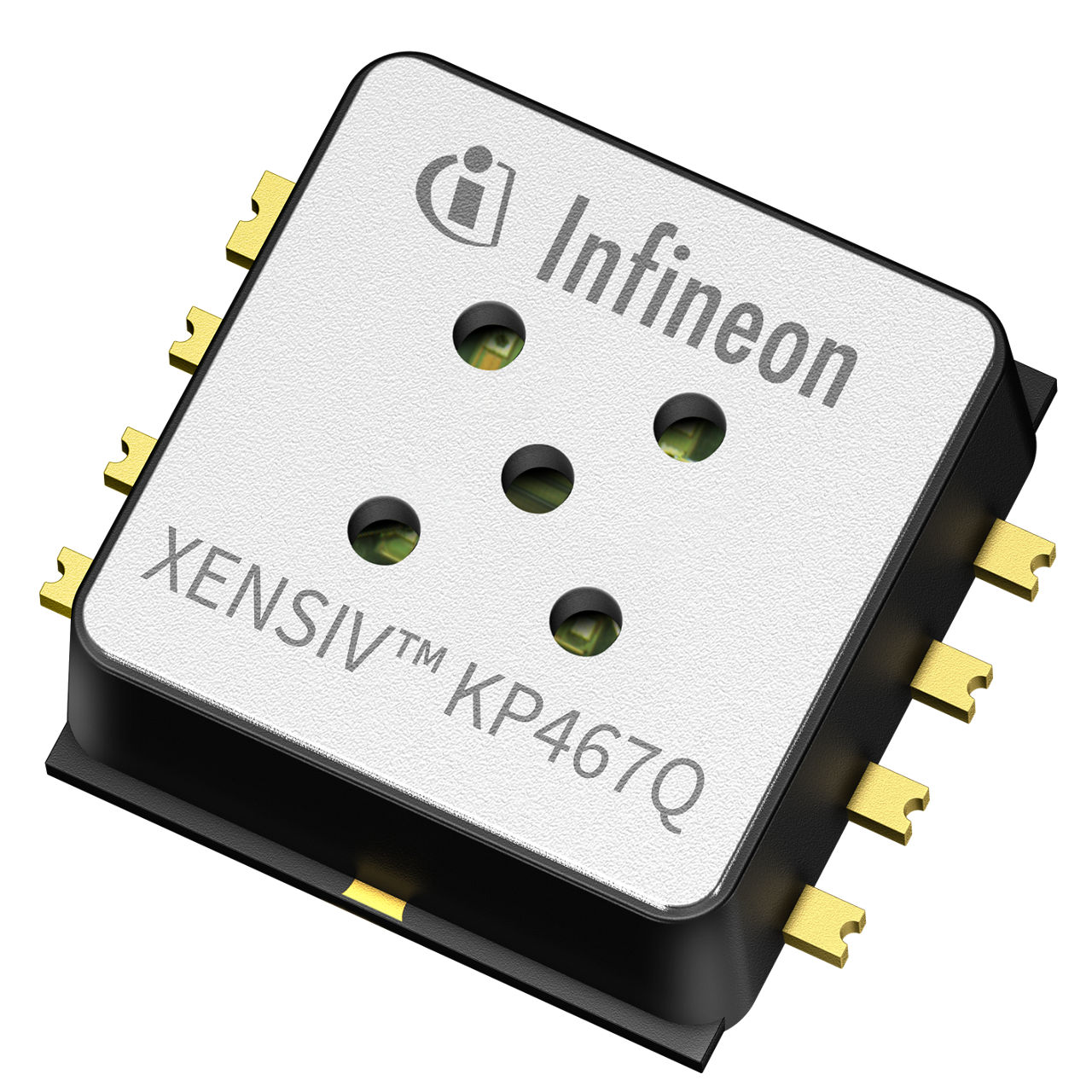

KP467Q

A modern battery electric vehicle is constantly monitored by sensors to detect thermal runaway events.
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KP467Q
KP467Q
Datasheet

Product details

  • 4 wire SPI daisy chain operation
    x
  • Accuracy
    ±1.0 kPa
  • Additional Sensors available
    No
  • Classification
    AEC-Q103-002
  • Delta pressure accuracy
    Max. 4% of delta pressure value
  • Encrypted communication
    No
  • Integrated Flash Memory for data storage
    No
  • Interfaces
    SPI (3 and 4-wire)
  • Low Power Monitoring (LPM) mode
    Typ. Current consumption ca. 50 uA (depends on customer settings)
  • LPM threshold min
    0.6 kPa
  • Operating Temperature Range range
    -40 °C to 105 °C
  • Package
    DFN-8
  • Pressure & temperature resolution
    14 Bit, 12 Bit, 10 Bit
  • Pressure range
    50 kPa to 140 kPa
  • Supply current (on mode)
    3.5 mA (no SPI comm.)
  • Supply current (power down mode)
    10 µA
  • Supply Voltage range
    3 V to 5.5 V
  • Temperature range
    -40 °C to 105 °C
Recommended
OPN
KP467QXTMA1
Product Status active and preferred
Infineon Package
PG-DFN-8
Package Name N/A
Packing Size 3400
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DFN-8
Package Name -
Packing Size 3400
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The KP467Q is a high-performance, high-precision, miniaturized digital absolute pressure sensor based on capacitive sensing principles. It is surface-micromachined with a monolithically integrated signal conditioning circuit. The device converts physical pressure into a 10-, 12-, or 14-bit digital value and transmits the information via the SPI interface. Additionally, an on-chip temperature sensor is integrated. Based on the received SPI command, the 10-, 12-, or 14-bit temperature data can also be transmitted through the SPI interface. The KP467Q features not only a power-down mode but also a dedicated Low-Power Monitoring (LPM) mode, which enables the sensor's use in battery monitoring applications to detect pressure pulses caused by thermal runaway events. The integrated diagnostics serve as a unique reliability feature, enabling testing of the sensor cells as well as the signal path. This diagnostic function can be activated via an SPI command.

Features

  • Autonomous low-power monitoring modes
  • LPM threshold optimized for LFP battery
  • Automotive qualification
  • Measuring pressure & IC temperature
  • High accuracy & reliability
  • Advanced diagnostic functions
  • High & flexible resolution output
  • Small package
  • Backwards compatible to existing BAP

Benefits

  • Robust battery failure monitoring
  • Battery power savings during parking
  • Easy design-in into safety systems
  • Robust sensors failure detection
  • Robust system design
  • Maximum system efficiency
  • Best fitting configuration
  • Minimized design-in efforts
  • Reuse of basic PCB layout and SW
  • High-quality solution
