WLC1125-68LQXQT

END OF LIFE

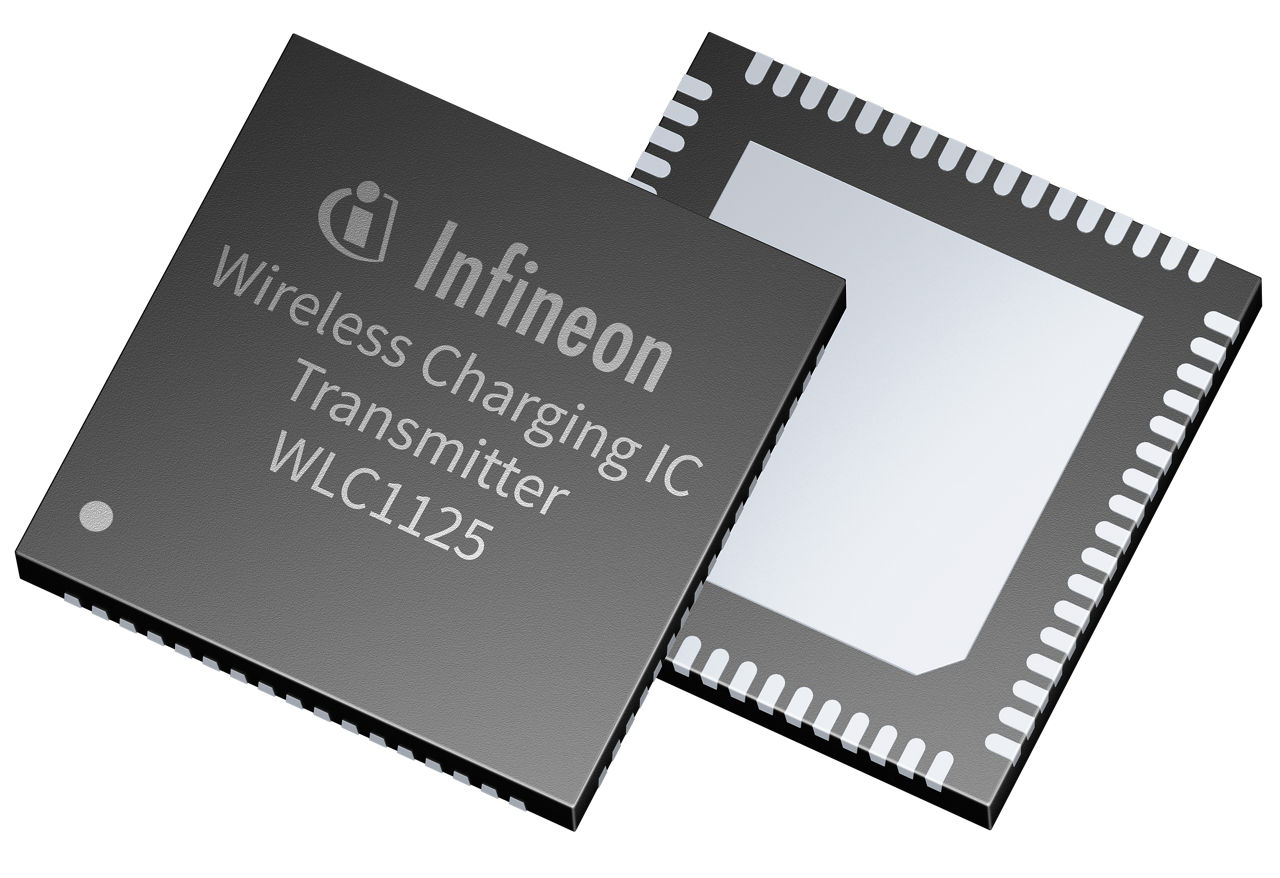

Tape and Reel package: WLC1125 wireless charging transmitter IC with USB-PD, buck-boost, sensing, Qi 2.2 system solution
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

WLC1125-68LQXQT
WLC1125-68LQXQT
Data Sheet

Product details

  • Applications
    Consumer, Industrial
  • Buck-boost support
    Y
  • Function
    Transmitter
  • Input Voltage max
    24 V
  • Operating Temperature range
    -40 °C to 105 °C
  • Output Power max
    25 W
  • Package Option
    Tape & Reel
  • PD Support
    Sink
  • Qi Support
    Q 2.2
OPN
WLC112568LQXQTXUMA1
Product Status discontinued
Infineon Package
PG-VQFN-68
Package Name QFN-68 (002-31802)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-VQFN-68
Package Name QFN-68 (002-31802)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
WLC1125 enables a high-performance charging transmitter IC for Qi 2.2 25 W. The highly programmable WLC1125 solution, along with Infineon's OptiMOS™ power devices and authentication IC, offers a highly efficient charging and turn-key compliant solution. The WLC1125-based power transmitter can support 25 W magnetic power profile (MPP), extended power profile (EPP), and basic power profile (BPP). Samsung 10 W PPDE and Apple 7.5 W are also supported.

Features

  • Enables Qi2.2-compliant transmitters
  • Supports 25 W power transmitter
  • Supports MPP, EPP, and BPP protocols
  • Support Samsung 10 W PPDE and Apple 7.5 W
  • USB-PD, DC-DC, and Qi controller
  • Support DC and Type-C input mode
  • -40°C - 105°C operating temperature
  • Tape and Reel package

Benefits

  • Single-Chip 25 W transmitter
  • Configurable software support
  • FOD configuration
  • Qi 2.2 compliant solution
  • Turn-key solution
