TLE49601-3M-S2
Active and preferred
RoHS Compliant
Lead-free

TLE49601-3M-S2

XENSIV™ TLE49601-3M-S2 Hall magnetic switch supporting functional safety applications with requirements up to ASIL B
Datasheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE49601-3M-S2
TLE49601-3M-S2
ea.
Datasheet


Product details

  • Bhyst
    15 mT
  • Bop
    7.5 mT
  • Brp
    -7.5 mT
  • Interfaces
    open collector
  • Product Description
    High precision automotive qualified bipolar Hall latch with functional safety (ASIL B)
  • Supply Voltage range
    3 V to 32 V
  • Temperature range
    -40 °C to 170 °C
  • Type
    Latch

Recommended
OPN
TLE496013MS2XTSA1
Product Status active and preferred

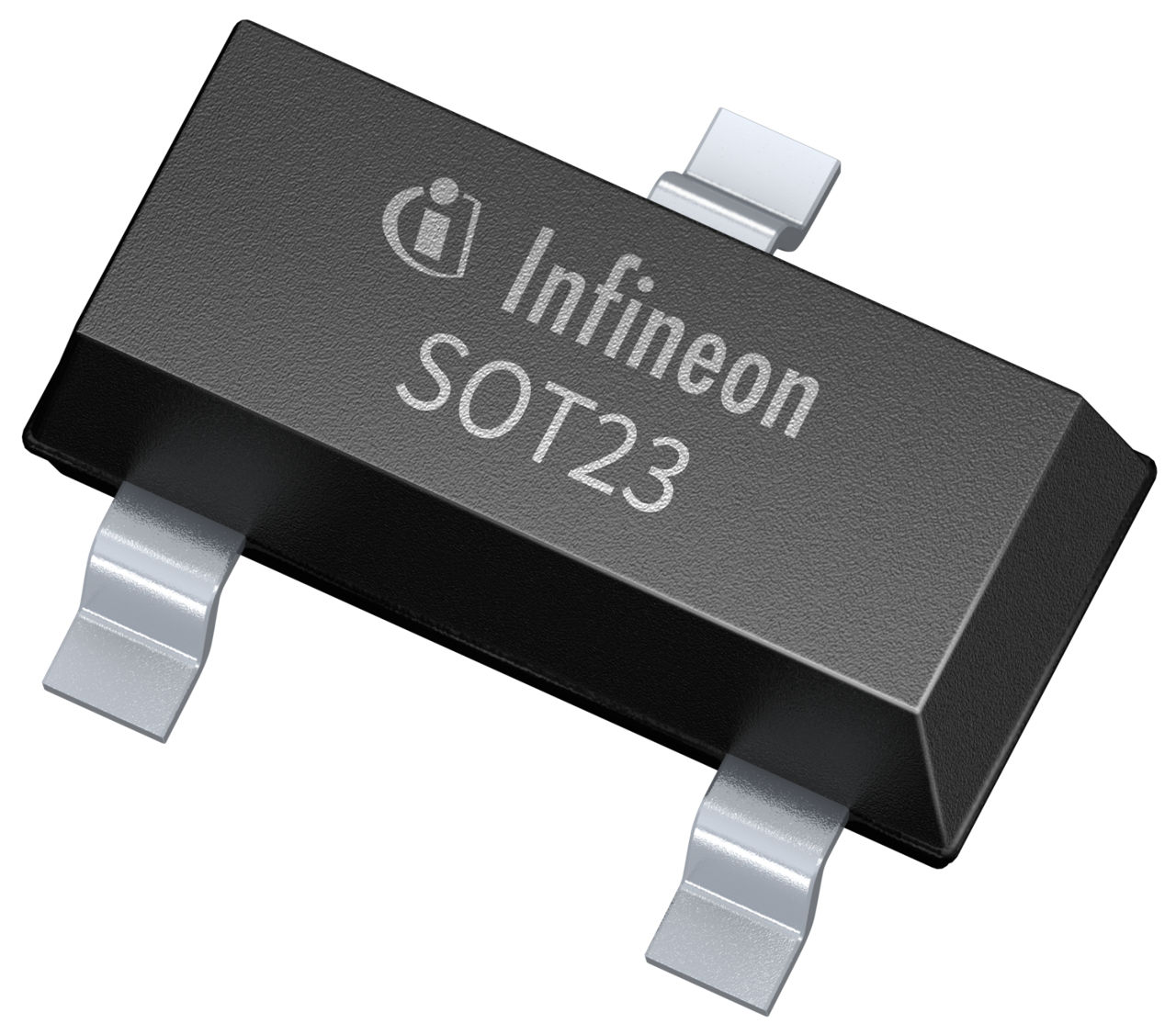

Infineon Package
PG-SOT23-3
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Est. Longevity Date 2040
Launch Date 12/2024
Country of Assembly (CoA)
CN
Country of Diffusion (CoD)
MY
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SOT23-3
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Est. Longevity Date 2040
Launch Date 12/2024
Country of Assembly (CoA)
CN
Country of Diffusion (CoD)
MY
ea.
in stock
XENSIV™ TLE4960x magnetic switch family can measure the magnetic field orthogonal to the PCB direction in Z direction.

Features

  • ASIL B compliant device
  • ISO 26262 safety elementup to ASIL B
  • Built-in diagnostic with fault indication
  • Highly accurate sensitivity
  • Over current protection
  • High robustness
  • Reverse battery protection (-18 V)
  • Load dump capability up to 42 V
  • ESD performance ± 4 kV
