XENSIV™ TCI-R gas sensor, a A2L refrigerants leakage sensor based on the thermal conductivity principle
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TCI-R
TCI-R
ea.
Data Sheet

Product details

  • Accuracy at extreme conditions
    ±5% LFL
  • Accuracy at normal conditions
    ±2.5% LFL
  • Current consumption in active mode
    2.2 mA
  • I2C communication speed max
    1 MByte/s
  • Interfaces
    I2C
  • Lifetime
    15 years
  • Operating relative humidity range min
    0%, 100 % (non-condensing)
  • Operating Temperature Range range
    -40 °C to 105 °C
  • Response Time max
    5 s
  • Supply Voltage
    3.3 V
Recommended
OPN
TCIRXTMA1
Product Status active and preferred
Infineon Package
PG-DSOSP-14
Package Name N/A
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSOSP-14
Package Name -
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The XENSIV™ TCI-R gas sensor detects leaks quickly and reliably by measuring changes in thermal conductivity specific to refrigerants like R32, R454A-B-C, R455A, R1234yf. Its fast response prevents compressor damage, loss of cooling efficiency, and regulatory noncompliance. Thanks to its low drift and resistance to cross-sensitivity or poisoning, it maintains accuracy over years of operation, reducing maintenance costs and environmental impact.

Features

  • AEC-Q100 up to 105°C
  • Fast response time < 5 s
  • Ultra-low current consumption
  • Robust and proven packages
  • Lifetime of 15 years with low drift
  • Power saving via autonomous mode
  • UL-60335-2-40/89 (construction review)

Benefits

  • No maintenance or replacement costs
  • Robustness and stability
  • Low-power mode enabled by user
  • No recalibration needed in the field

Diagrams

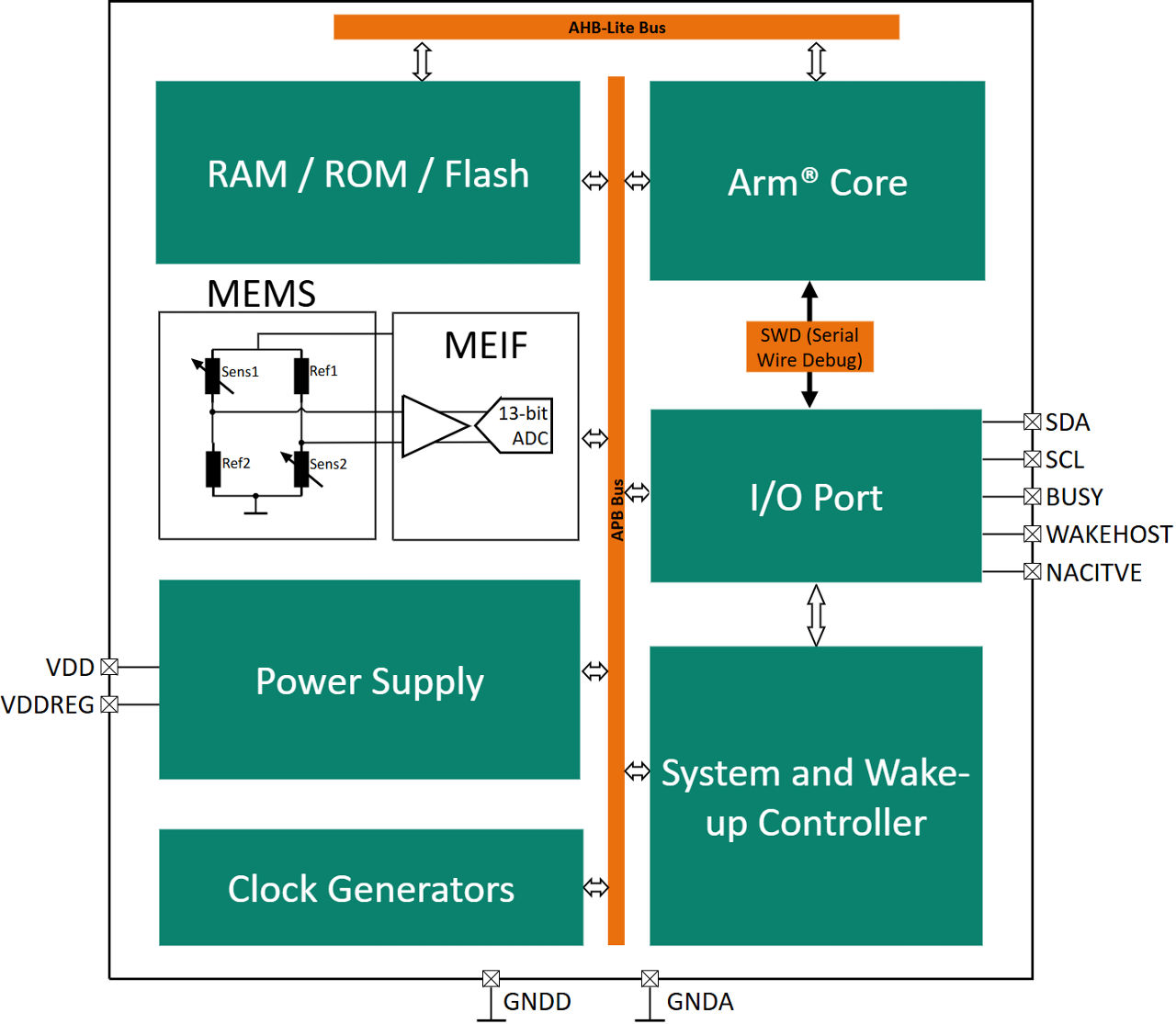

Block diagram TCI-R
Block diagram TCI-R
Block diagram TCI-R Block diagram TCI-R Block diagram TCI-R
×
