FF2MR12W3M1H_B11

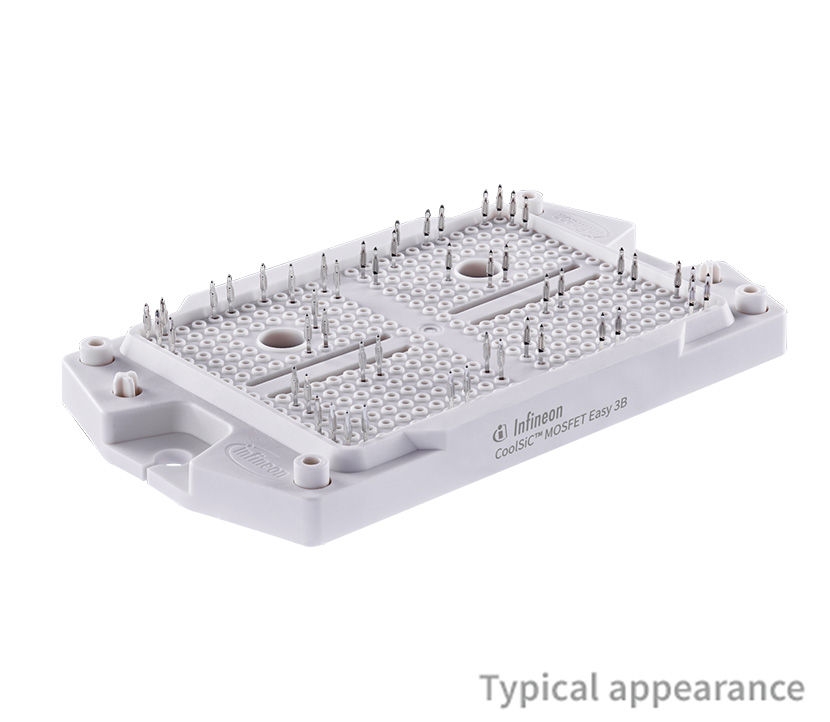

EasyDUAL™ 3B CoolSiC™ MOSFET half-bridge module 1200 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF2MR12W3M1H_B11
FF2MR12W3M1H_B11
ea.
Data Sheet

Product details

  • Applications
    UPS,Solar,Servo drives,Traction,ESS,CAV,FuelCell
  • Configuration
    Half-bridge
  • Dimensions (width)
    62 mm
  • Dimensions (length)
    109.85 mm
  • Features
    PressFIT
  • Housing
    Easy 3B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    1.44 mΩ
Recommended
OPN
FF2MR12W3M1HB11BPSA1
Product Status active and preferred
Infineon Package AG-EASY3B
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY3B
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyDUAL™ 3B 1200 V / 1.44 mΩ half-bridge module with CoolSiC™ MOSFET with enhanced generation 1, integrated NTC temperature sensor and PressFIT Contact Technology .

Features

  • Best-in-class package: 12 mm height
  • Easy module packages
  • Very low module stray inductance
  • Low and equal gate inductances
  • Symmetrical internal chip layouts
  • Wide RBSOA
  • 1200 V CoolSiC™ MOSFET
  • Gate drive vol.: +15…+18 V & 0…-5 V
  • Max. gate-source v.: +23 V & -10 V
  • Tvjop under overload condi. < 175°C
  • PressFIT pins
