CYBT-483056-02
END OF LIFE
discontinued
RoHS Compliant

CYBT-483056-02

END OF LIFE
Datasheet
package
board
software
View product family

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYBT-483056-02
CYBT-483056-02
View product family
Datasheet


Product details

  • ADC (#, Max. Resolution @ Sample Rate)
    SD(1, 12bit ENoB (audio), 10 bit ENoB (DC), 12MHz Clock)
  • Base Silicon
    CYW20719
  • Bluetooth Classic
    Yes
  • Bluetooth EDR 2MBPS RX SENSITIVITY
    –94.0 dBm
  • Bluetooth EDR 2Mbps TX POWER
    0 dBm
  • Bluetooth LE Data rate
    2 MByte/s
  • Bluetooth LE RX SENSITIVITY
    - 95.0 dBm
  • Bluetooth LE TX POWER
    20 dBm
  • Bluetooth LE
    Yes
  • CapSense
    No
  • CPU Core
    96MHz
  • Extended Range
    Yes
  • Family
    AIROC™ Bluetooth Modules
  • Flash
    1024 KByte
  • GPIOs
    15
  • I2C
    1
  • Launch Date
    31-03-2020
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Main CPU Core
    Arm® Cortex®- M4
  • Operating Temperature range
    -30 °C to 85 °C
  • Operational Amplifier
    No
  • Pads
    24
  • PDM
    1
  • Planned to be available until at least
    31-03-2035
  • PWM
    6
  • ROM
    2MB
  • Secondary CPU Core
    None
  • Serial Communication Blocks
    0
  • Size (X mm x Y mm x Z mm)
    12.75 x 18.59 x 1.8 mm
  • SPI
    2
  • SRAM
    512 KByte
  • Type of Antenna
    Chip Antenna
  • UART
    2
  • V range
    1.76 V to 3.63 V

OPN
CYBT-483056-02
Product Status discontinued
Infineon Package
LG-MLGA-34
Package Name MODULE-34 (002-23993)
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Country of Assembly (CoA)
CN
Country of Diffusion (CoD)
TW
View product family

Product Status discontinued
Infineon Package
LG-MLGA-34
Package Name MODULE-34 (002-23993)
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
CN
Country of Diffusion (CoD)
TW
View product family

Applications

Diagrams

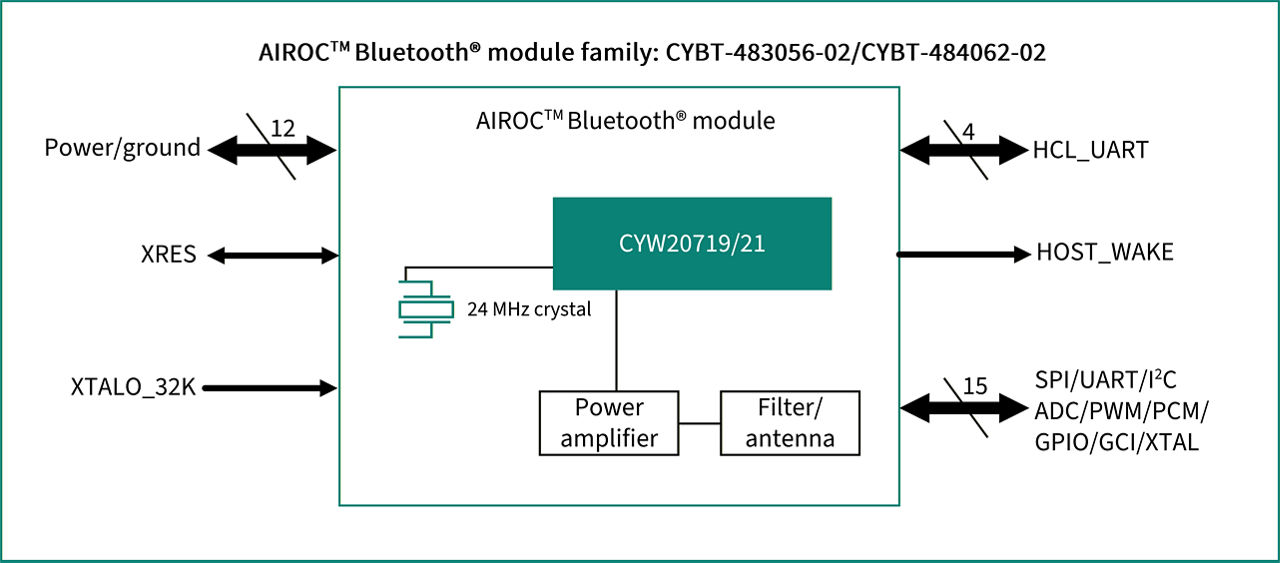

CYBT-483056-02 Block Diagram
CYBT-483056-02 Block Diagram
CYBT-483056-02 Block Diagram CYBT-483056-02 Block Diagram CYBT-483056-02 Block Diagram
CYBT-483056-02, CYBT-483062-02 Block Diagram CYBT-483056-02, CYBT-483062-02 Block Diagram CYBT-483056-02, CYBT-483062-02 Block Diagram
×
