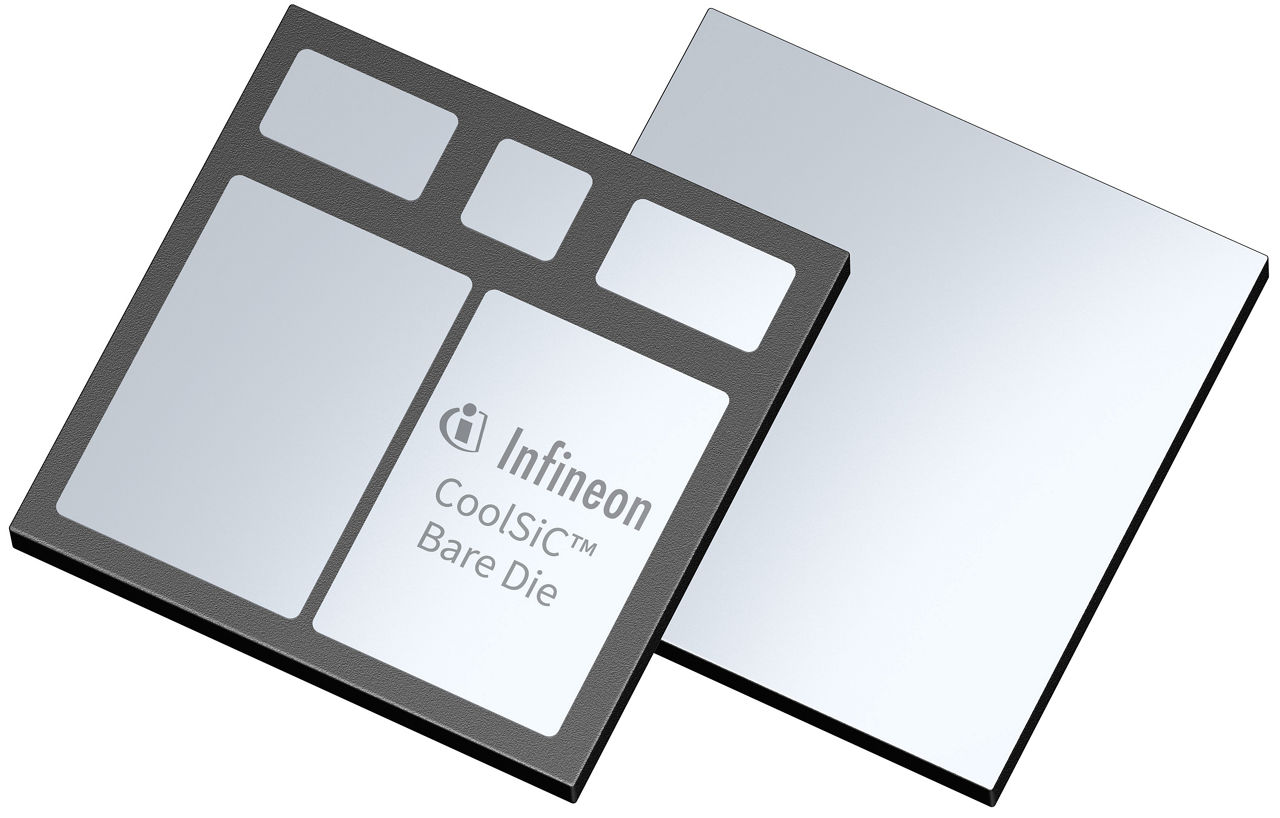

AIMC120R011D21M2P1

Unleashing the Power of Infineon's Cutting-Edge SiC Trench Technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AIMC120R011D21M2P1
AIMC120R011D21M2P1
Data Sheet

Product details

  • Die Size
    25 mm²
  • Layout
    mid gate
  • Metallization (Frontside)
    Solder
  • Metallization (Backside)
    Sinter
  • RDS (on) (@25°C)
    11.1 mΩ
  • Voltage Class
    1200 V
Recommended
OPN
AIMC120R011D21M2P1X7SA2
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level NA
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level NA
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Our latest automotive Gen2pE devices offer voltage classes of 750 V and 1200 V, delivering unprecedented performance for main inverter applications in high-performance vehicles. With the ability to design and manufacture custom power modules tailored to specific application requirements, our SiC solutions are set to transform the automotive landscape, elevating performance, efficiency, and reliability to new heights.

Features

  • High efficiency and power density
  • State-of-the-art trench design
  • Various metal stack options
  • Superior gate-oxide reliability

Benefits

  • Ideal for automotive requirements
  • Available in 750 V and 1200 V class
  • Customized development (on demand)
  • Cost benefit due to module shrink
  • High reliability and quality

Applications
