PSOC™ 4000T

Best-in-class low-power capacitive sensing solution with unsurpassed signal-to-noise ratio, liquid tolerance, and multi-sense capabilities

anchor

Overview

PSOC™ 4000T microcontrollers extend the PSOC™ 4 product family of Arm® Cortex®-M0+ based microcontrollers with advanced HMI capabilities. PSOC™ 4000T is equipped with Multi-Sense, a comprehensive sensing solution that integrates Infineon's 5th Generation CAPSENSE™, inductive sensing, liquid level sensing and CAPSENSE™ Hover touch. Infineon's 5th Gen CAPSENSE™ technology offers 10x higher SNR and 10x lower power consumption.

Key Features

  • 48 MHz Arm® Cortex®-M0+ CPU
  • Up to 64 KB flash, up to 8 KB SRAM
  • 5th generation CAPSENSE™
  • 16 self/64 mutual-capacitive inputs
  • Up to 8 inductive inputs
  • High resolution liquid level sensing
  • CAPSENSE™ Hover touch
  • Operating voltage: 1.71 V to 5.5 V
  • Deep sleep mode at 6 µA
  • Active touch detection at 200 µA
  • 2 16-bit TCPWM, 2 serial blocks
  • Up to 21 I/O

Compare families

Products

About

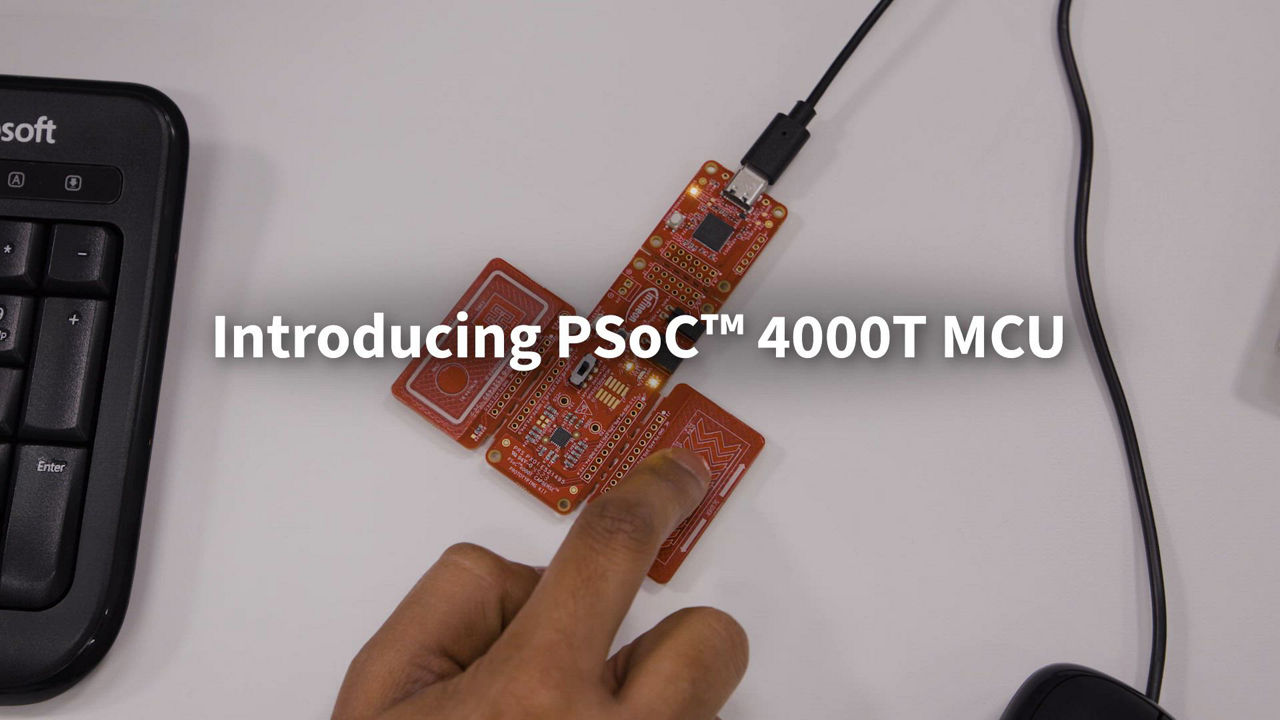

About the PSOC™ 4000T

The PSOC™ 4000T MCU has an Arm® Cortex®-M0+ CPU and features Infineon’s 5th generation high-performance CAPSENSE™ capacitive sensing along with inductive sensing, liquid level sensing and CAPSENSE™  hover touch.

The 5th gen CAPSENSE™ technology provides 10x higher SNR (signal-to-noise ratio) performance with 10x lower consumption than previous generations of CAPSENSE™.

The PSOC™ 4000T inductive sensing is based on differential and ratio-metric sensing architecture, providing wide flexibility on both sensor inductance and sensor operating frequency.

The PSOC™ 4000T microcontrollers' liquid level sensing technology eliminates the need for contact with the liquid, works in noisy environments, and can detect different liquids and reject foam and residue.

The PSOC™ 4000T family provides an easy upgrade path for PSOC™ 4000 and PSOC™ 4000S based designs to utilize the advanced 5th generation CAPSENSE™ via software and package compatibility. PSOC™ 4000T series enables a variety of applications including wearables, hearables, home appliances, small kitchen appliances, coffee machines and others.

5th generation CAPSENSE™

Ultra-low power:

One of the industry’s first always-on touch sensing features enables HMI operation with very low active and standby power consumption, enabling longer battery life on battery-powered products such as wearables and hearables.

Signal-to-noise ratio:

Best-in-class signal-to-noise ratio improves reliability, provides a seamless user experience, a faster refresh rate, and optimizes average power consumption.

Liquid tolerance: Reliable operation under wet and high moisture conditions prevents false activation from a variety of liquids, including highly conductive salty water.

Multi-sense:

Supports a combination of multiple sensing methods and a variety of user interfaces such as touch, slider, force-touch, proximity, finger-tracking, metal touch, hover touch. The Multi-Sense can also be used to design a high resolution liquid level sensor

Advanced proximity interface:

Long distance proximity detection up to 30 cm, proximity sensing with directivity, and proximity gestures through configurable gesture control.

Getting started

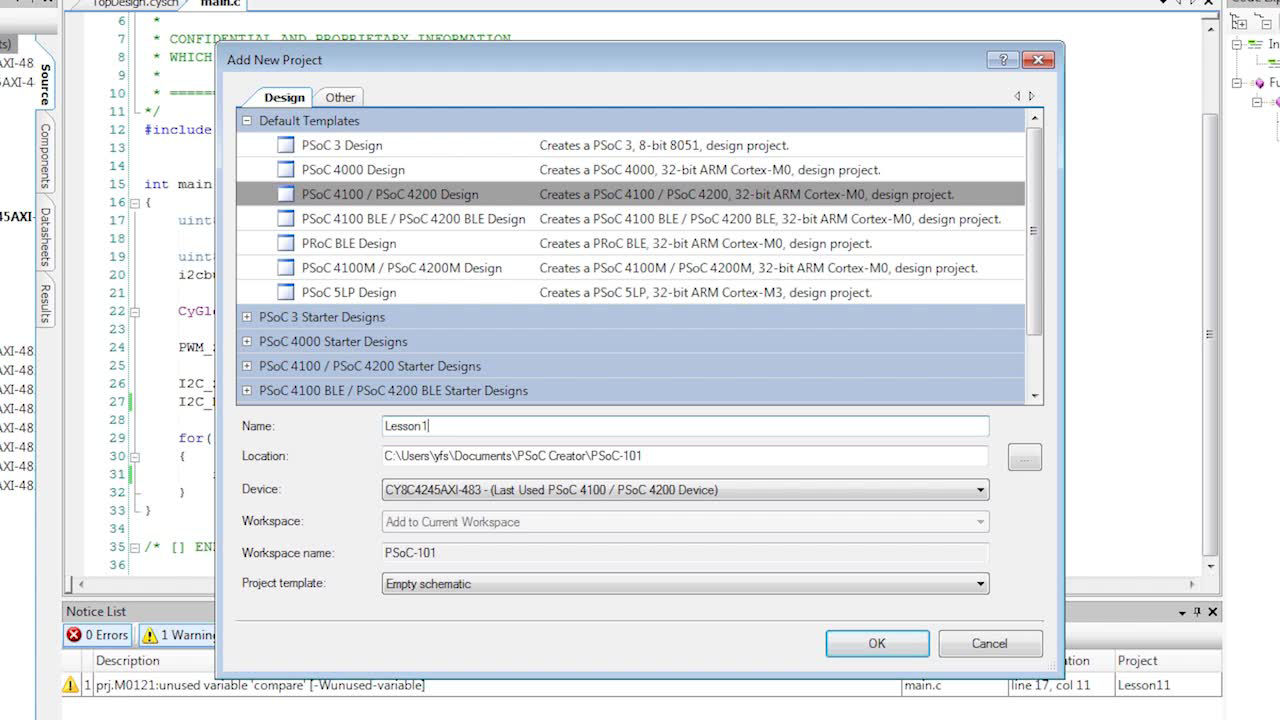

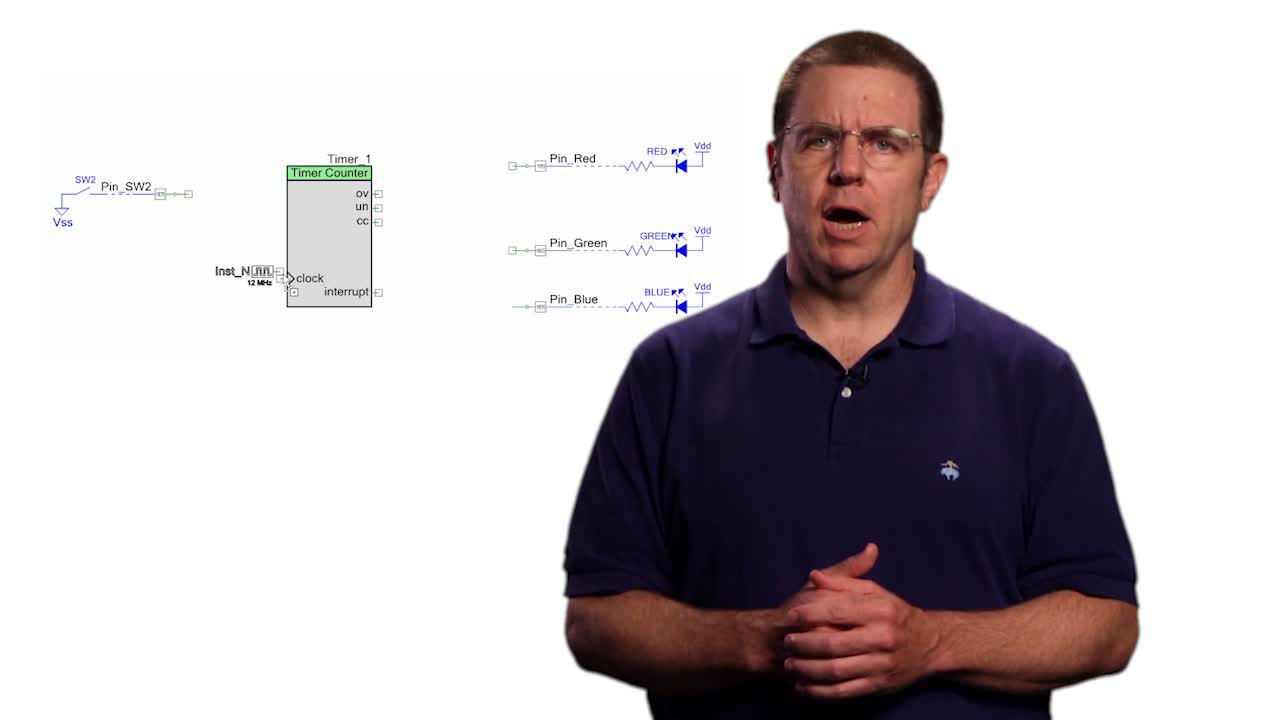

ModusToolbox™ software

ModusToolbox™ software is a collection of development tools and embedded resources supporting Infineon devices.

The ModusToolbox™ tools package includes desktop applications that enable the creation of new embedded projects, managing software resources, configuring device peripherals and middleware, and multiple IDE options for compiling, programming, and debugging. Windows, Linux, and MacOS are supported.

These ModusToolbox™ applications utilize an extensive collection of GitHub-hosted repositories comprised of code examples, board support packages, and middleware from Infineon and partners. Middleware libraries include CAPSENSE™ HMI, connectivity, machine learning, graphics, security, and more.

ModusToolbox™ software currently supports application development within the following product families:

  • 32-bit PSOC™ Arm® Cortex® MCUs
  • 32-bit XMC™ industrial MCUs Arm® Cortex®-M
  • 32-bit TRAVEO™ T2G Arm® Cortex® MCUs
  • AIROC™ connected MCUs
  • AIROC™ Bluetooth®
  • USB-C Power Delivery controllers
  • Wireless charging ICs

Drivers, middleware, and code examples are available for many Infineon products, including:

  • AIROC™ Wi-Fi + Bluetooth®
  • OPTIGA™ Trust
  • XENSIV™ sensors
ModusToolbox™ software
GitHub-hosted repositories
PSOC™ 4 Developer Community

Infineon Developer Community is available 24x7 for you to connect and network with engineers across the globe. Get help from Infineon support engineers and members to solve your design challenges anytime, from anywhere, on any topic, and in your preferred language.

Ask the PSOC™ 4 community
Product longevity

Infineon’s longevity program ensures that, based on Infineon's current estimate of and subject to actual product demand, Infineon currently plans to have available the participating products listed below, or a form-, fit-, and function-compatible device, for a minimum of 15 years from the date of first sale.

Learn about our product longevity program

About the PSOC™ 4000T

The PSOC™ 4000T MCU has an Arm® Cortex®-M0+ CPU and features Infineon’s 5th generation high-performance CAPSENSE™ capacitive sensing along with inductive sensing, liquid level sensing and CAPSENSE™  hover touch.

The 5th gen CAPSENSE™ technology provides 10x higher SNR (signal-to-noise ratio) performance with 10x lower consumption than previous generations of CAPSENSE™.

The PSOC™ 4000T inductive sensing is based on differential and ratio-metric sensing architecture, providing wide flexibility on both sensor inductance and sensor operating frequency.

The PSOC™ 4000T microcontrollers' liquid level sensing technology eliminates the need for contact with the liquid, works in noisy environments, and can detect different liquids and reject foam and residue.

The PSOC™ 4000T family provides an easy upgrade path for PSOC™ 4000 and PSOC™ 4000S based designs to utilize the advanced 5th generation CAPSENSE™ via software and package compatibility. PSOC™ 4000T series enables a variety of applications including wearables, hearables, home appliances, small kitchen appliances, coffee machines and others.

5th generation CAPSENSE™

Ultra-low power:

One of the industry’s first always-on touch sensing features enables HMI operation with very low active and standby power consumption, enabling longer battery life on battery-powered products such as wearables and hearables.

Signal-to-noise ratio:

Best-in-class signal-to-noise ratio improves reliability, provides a seamless user experience, a faster refresh rate, and optimizes average power consumption.

Liquid tolerance: Reliable operation under wet and high moisture conditions prevents false activation from a variety of liquids, including highly conductive salty water.

Multi-sense:

Supports a combination of multiple sensing methods and a variety of user interfaces such as touch, slider, force-touch, proximity, finger-tracking, metal touch, hover touch. The Multi-Sense can also be used to design a high resolution liquid level sensor

Advanced proximity interface:

Long distance proximity detection up to 30 cm, proximity sensing with directivity, and proximity gestures through configurable gesture control.

Getting started

ModusToolbox™ software

ModusToolbox™ software is a collection of development tools and embedded resources supporting Infineon devices.

The ModusToolbox™ tools package includes desktop applications that enable the creation of new embedded projects, managing software resources, configuring device peripherals and middleware, and multiple IDE options for compiling, programming, and debugging. Windows, Linux, and MacOS are supported.

These ModusToolbox™ applications utilize an extensive collection of GitHub-hosted repositories comprised of code examples, board support packages, and middleware from Infineon and partners. Middleware libraries include CAPSENSE™ HMI, connectivity, machine learning, graphics, security, and more.

ModusToolbox™ software currently supports application development within the following product families:

  • 32-bit PSOC™ Arm® Cortex® MCUs
  • 32-bit XMC™ industrial MCUs Arm® Cortex®-M
  • 32-bit TRAVEO™ T2G Arm® Cortex® MCUs
  • AIROC™ connected MCUs
  • AIROC™ Bluetooth®
  • USB-C Power Delivery controllers
  • Wireless charging ICs

Drivers, middleware, and code examples are available for many Infineon products, including:

  • AIROC™ Wi-Fi + Bluetooth®
  • OPTIGA™ Trust
  • XENSIV™ sensors
ModusToolbox™ software
GitHub-hosted repositories

PSOC™ 4 Developer Community

Infineon Developer Community is available 24x7 for you to connect and network with engineers across the globe. Get help from Infineon support engineers and members to solve your design challenges anytime, from anywhere, on any topic, and in your preferred language.

Ask the PSOC™ 4 community

Product longevity

Infineon’s longevity program ensures that, based on Infineon's current estimate of and subject to actual product demand, Infineon currently plans to have available the participating products listed below, or a form-, fit-, and function-compatible device, for a minimum of 15 years from the date of first sale.

Learn about our product longevity program
