NBT2000

NFC I2C bridge tag for contactless authentication and secured configuration of IoT devices
データシート
ボード

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

NBT2000
NBT2000
データシート

Product details

  • NVM / 凌捷掩膜
    8 kByte
  • Applications
    Healthcare devices, Consumer electronic devices, Shared mobility, Industrial equipment
  • Interfaces
    I2C, ISO/IEC 14443 Type A
  • Security Features
    Flexible, file-based password protection using 32-bit passwords
  • Data Rate
    I2C standard mode (100 kHz), fast mode (400 kHz), fast mode ‘plus’ (1 MHz) clock frequencies, 106 up to 848 Kbit/s contactless
  • Use Cases
    Secured activation and device configuration of IoT devices, activation of shared mobility vehicles, passive commissioning of non-powered smart devices, data logging in health monitors
  • Ambient Temperature
    -40 °C to 85 °C
  • Symmetric Cryptography
    AES-128-based symmetric crypto authentication
  • Delivery Forms

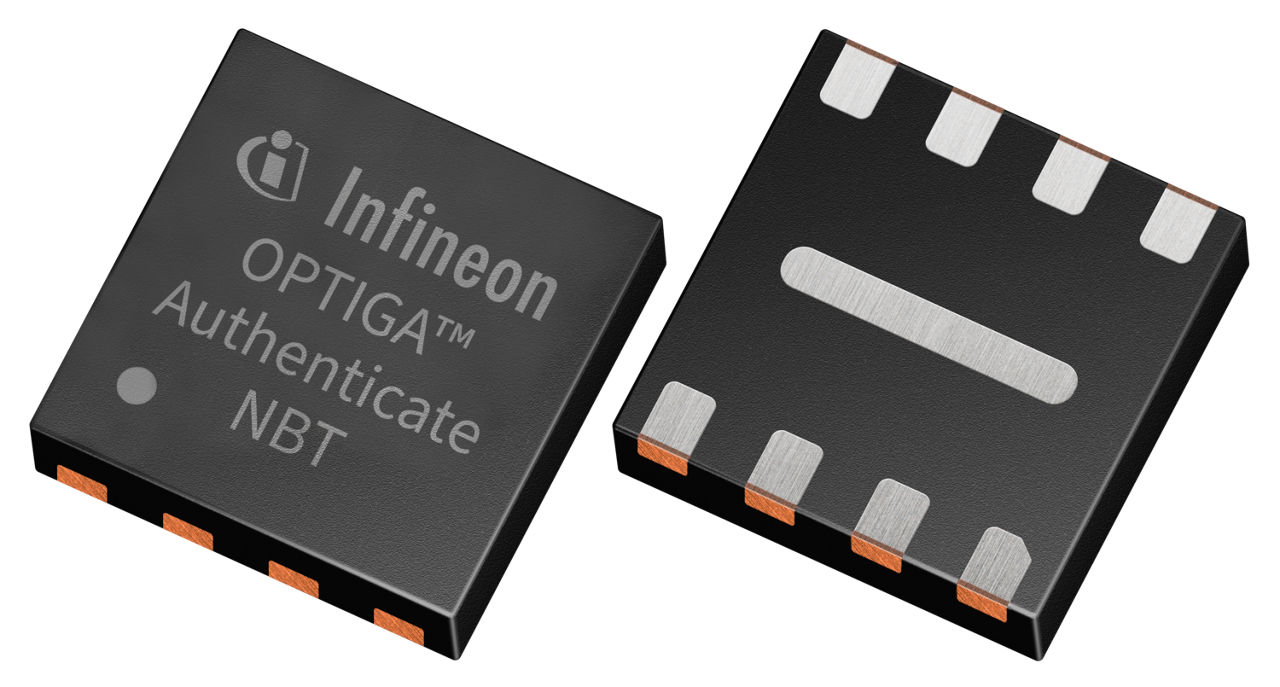

    PG-USON-8-8
  • Product Description
    OPTIGA™ Authenticate NBT is a NFC-I2C bridge tag for contactless authentication and secured configuration of IoT devices
  • Certifications
    Based on CC EAL 6+ (high) certified HW, NFC Forum Type 4, personal health device communication (PHDC)
  • Asymmetric Cryptography
    ECDSA-based asymmetric authentication with PKI (public key infrastructure) and certificates
OPN
製品ステータス
インフィニオンパッケージ
パッケージ名
包装サイズ
包装形態
水分レベル
モイスチャーパッキン
鉛フリー
ハロゲンフリー
RoHS準拠
Infineon stock last updated:
OPTIGA™ Authenticate NBT is a high-performance NFC I2C bridge tag, Type 4 Tag certified by the NFC Forum, for single-tap IoT device authentication and secured configuration. It enables ultra-fast, contactless NFC communication between IoT devices and contactless readers such as smartphones. It is based on CC EAL 6+ (high) certified hardware and provides high security thanks to our acclaimed Integrity Guard 32 security architecture.

機能

  • NFC Forum Type 4 Tag certified
  • 106 up to 848 Kbit/s contactless
  • I2C standard mode / fast mode (plus)
  • ECDSA-based asymmetric cryptography
  • AES-128-based symmetric cryptography
  • 32-bit password-based verification
  • Storage capacity of 8 KB user NVM
  • 78 pF high on-chip capacitance
  • ISO/IEC 14443 Type A interface
  • I2C target interface
  • Global Platform T=1' protocol
  • NFC field detect pin

利点

  • High-performance NFC-I2C bridge tag
  • Based on CC EAL 6+ (high) certified HW
  • Integrity Guard 32 security
  • Ultra-fast data transfer
  • Generous on-chip memory of 8 KB
  • Minimized antenna footprint
  • Optimised BoM
  • Chip-individual pre-provisioning of key pair and certificate
  • Long-term trustworthy sourcing
