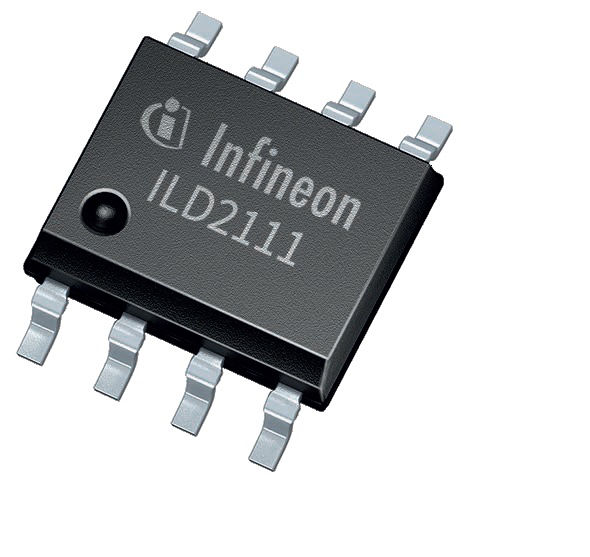

ILD2111

Digital buck controller tailor-made for LED lighting
データシート
ボード

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ILD2111
ILD2111
データシート

Product details

  • Iout
    10 mA
  • VS
    2.5 V to 600 V
  • 種類
    Buck
  • 調光
    Digital
OPN
製哝ステータス
インフィニオンパッケージ
パッケージ坝
包装サイズ
包装形態
水分レベル
モイスポャーパッキン
鉛フリー
ポロゲンフリー
RoHS準拠
Infineon stock last updated:
The ILD2111 is a high-performance configurable buck controller, designed as a constant current source with average output current regulation. The IC supports output current setting at the end user with a simple resistor (Led-set like). Important parameters like target current and protection features can be configured by a dedicated single pin UART interface. The ILD2111 buck controller is dimmable by an external PWM signal.

機能

  • Adjustable output current via simple external resistor also at end user (Led-set like)
  • Highly configurable using a comprehensive parameter set to tune operation and protection features
  • Flicker-free and phase-aligned PWM dimming down to 1%
  • High output current accuracy of ±5% over full output current and temperature range

利点

  •  Quick design and easy variant handling supported by parameter configurability with .dp Vision GUI for shortened development cycles and more flexibility
  • The input voltage range is fully scalable between 2.5 V and 600V thanks to low side current sensing
  • Full protection incl. intelligent thermal management
