EVAL-PS-IRS200X

Stepper motor evaluation board for 200 V half-bridge/high side and low side level shift gate driver IRS2005S/IRS2007S/IRS2008S
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-PS-IRS200X
EVAL-PS-IRS200X
User Manual

Product details

  • Applications
    Stepper Motor, Power Tools, Drones, Motorcycles, E-Bikes & Small E-Vehicles, Wireless Charging, BLDC motor drives, Motor Control & Drives
  • Board Type
    Evaluation Board
  • Dimensions
    86x79
  • Family
    MOSFET, Gate Driver
  • Frequency
    20 kHz
  • Input Type
    DC
  • Product Name
    EVAL-PS-IRS200X
  • Qualification
    Industrial
  • Sub Application
    Motorcycles, Drones, Power Tools, Stepper Motor, E-Bikes & Small E-Vehicles, Wireless Charging, BLDC motor drives
  • Supply Voltage max
    20 V
  • Target Application
    Consumer, Industrial, Motor Control & Drives, Commercial
  • Topology
    Four Phase
Recommended
OPN
EVALPSIRS200XTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

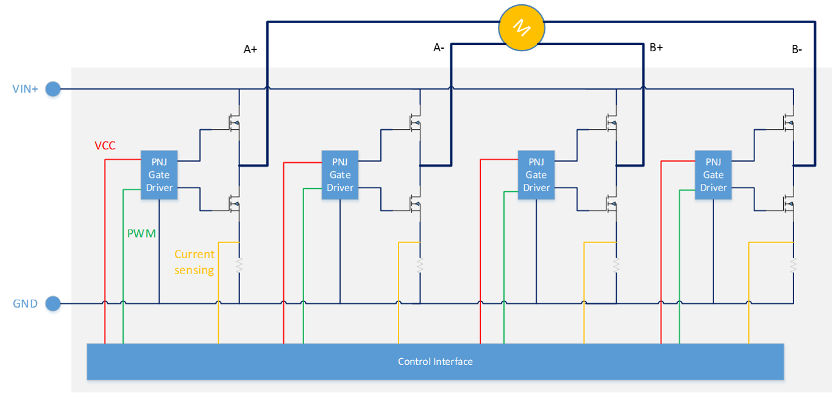

EVAL-PS-IRS200x board, specifically for stepper motors, integrates gate drivers, MOSFETs, and interface. Features 200V IRS2005S, IRS2007S, and IRS2008S gate drivers. Its four-phase leg shunt topology caters to most stepper motors with 24~72VDC input, using IPP180N10N3 G MOSFETs. Each phase leg current is sensed by the leg shunt, enabling motor control via an external controller. Available through Infineon's distribution network.

Features

  • Four-phase inverter
  • Individual leg shunt
  • Double-sized PCB supplies
  • DC voltage input with fused protec.
  • 200 V level shift gate driver
  • 100 V-rated MOSFET:
  • Very low On-resistance (18 mΩ)
  • Stepper motor can be run*
  • * external control board needed
  • Ext. imported aux. power supply
  • Installed heatsink
