Enhance Automotive IGBT Modules with Infineon's Evaluation Kit Sense for HybridPACK™ Drive Main Inverter and LEM Current Sensor
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EV INV HPD1 SI FS820 08
EV INV HPD1 SI FS820 08
Application Notes

Product details

  • Applications
    Automotive IGBT Modules
  • Board Type
    Evaluation Board
  • Description
    Enhance the performance of HybridPACK™ Drive Automotive Power Modules with the new Evaluation Kit Sense HybridPACK™ Drive, featuring a precise LEM phase current sensor for B6-bridge xEV main inverter applications.
  • Family
    IGBT Modules
  • Input Type
    DC
  • Interfaces
    CAN, USB
  • Product Name
    Evaluation Kit Sense for HybridPACK™ Drive
  • Qualification
    Automotive
  • Sub Application
    IGBT Modules, Automotive
  • Target Application
    Automotive, Motor Control & Drives, Electromobility, E-Bikes & Small E-Vehicles
  • Topology
    B6 Bridge
Recommended
OPN
EVINVHPD1SIFS82008TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

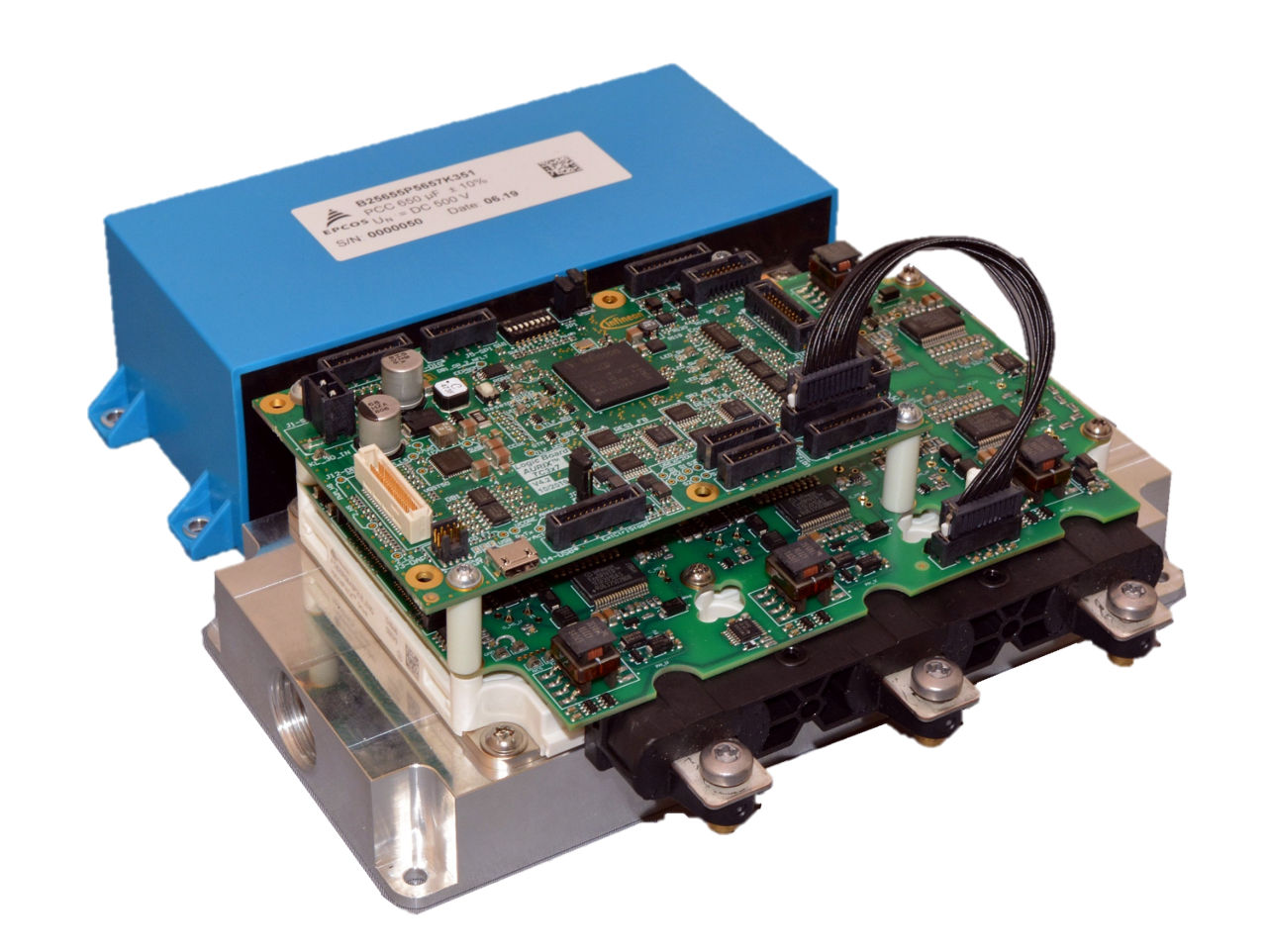

Enhance the performance of HybridPACK™ Drive Automotive Power Modules with the new Evaluation Kit Sense HybridPACK™ Drive, featuring a precise LEM phase current sensor for B6-bridge xEV main inverter applications. Equipped with the latest Infineon power module HybridPACK™ Drive (FS820R08A6P2xx, FS660R08A6P2FxB, FS770R08A6P2xB, FS950R08A6P2B), this kit demonstrates exceptional performance with the latest IGBT generation EDT2 and module package technology. Designed for laboratory use, it can drive loads up to 150 kW for DC voltages up to 500 V, prepared for fluid cooling and achieving high efficiency values up to 99% even on light load conditions.

Features

  • Derivative of Evaluation Kit HybridPACK™ Drive
  • Includes precise LEM phase current sensor
  • Equipped with latest Infineon power module
  • Demonstrates outstanding IGBT performance
  • Drives active and passive loads up to 150 kW for DC voltages up to 500 V
  • Prepared for fluid cooling
  • Achieves up to 99% efficiency


Benefits

  • Save design time
  • Enable fast evaluation of the IGBT module
  • Including Phase current sensor LEM
  • Reusage for all EDT 2 based (750 V) HybridPACK™ Drive Power Module
