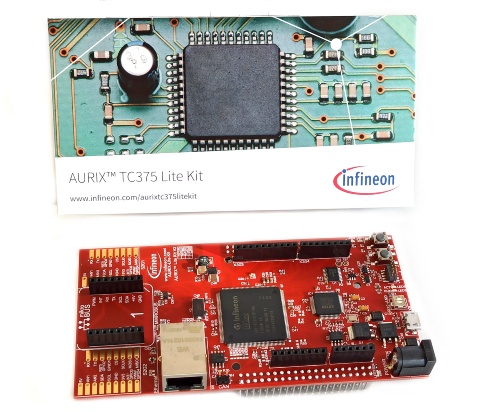

AURIX^TM TC375 lite kit is equipped with a 32-Bit Single-Chip AURIX^TM TriCore^TM based-Microcontroller Aurix^TM TC375.  It can be used with a range of development tools including AURIX^TM Development Studio, Infineon’s free of charge Eclipse-based IDE, or the Eclipse-based “FreeEntryToolchain” from Hightec/PLS/Infineon

Buy online

Power:

• on-board miniWiggler Micro-AB USB interface
• external powering 5 V…40 V (recommended 7 V...14 V)

Connectors:

• Most AURIX™ pins available on expansion connectors (X1, X2)
• Two Infineon Shield2Go connectors
• Arduino compatible connectors for 3.3 V
• mikroBUS™ connector
• Micro-USB connector
• DAP Debug connector
• CAN connector
• RJ45 connector

Others:

• CAN transceiver TLE9251VSJ from Infineon
• Low Power 10/100 Mbps Ethernet Physical Layer Transceiver DP83825I
• 1 user push-button, 3 user LEDs
• Reset push-button
• Potentiometer (10 kOhm) for variable analog input
